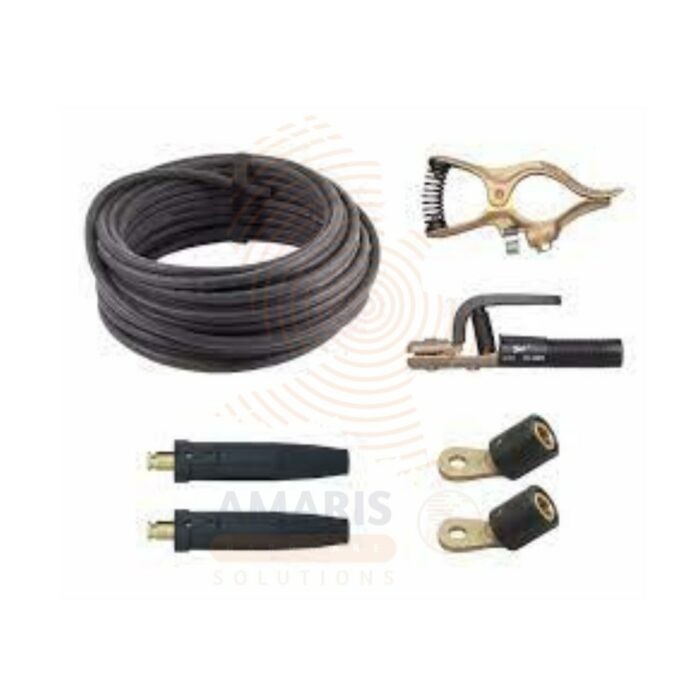

Welding Cable Electrode

Whatsapp Order


Welding cable, also known as electrode cable, refers to a specialized electrical cable designed for the transmission of electric current in welding applications. It serves as the conduit through which the electrical energy is delivered from the welding power source to the welding electrode or welding gun. Welding cables are constructed to withstand the harsh conditions of welding environments, including exposure to heat, abrasion, and oil. Typically, these cables have flexible copper conductors for efficient power transmission and a durable, heat-resistant insulation or jacket to ensure safety and longevity. The term “electrode cable” is often used interchangeably with “welding cable” because the cable connects the welding machine to the electrode, which is the component that carries the electric current necessary for generating the welding arc.



COPPER CABLE
400 AMP ELECTRODE Holder
22SQ MM
Cable: 2.2 M
Cable Connector: DKJ35-50

Compare

Uses

  1. Arc Welding: Welding cables are extensively used in arc welding processes, where an electric arc is created between the welding electrode and the workpiece. The welding cable facilitates the flow of electrical current from the welding machine to the electrode, enabling the generation of heat and the formation of a molten weld pool.
  2. MIG Welding: In Metal Inert Gas (MIG) welding, welding cables connect the power source to the MIG welding gun, allowing the transfer of electric current and the feeding of the welding wire. MIG welding is commonly used for welding various metals, including steel and aluminum.
  3. TIG Welding: Tungsten Inert Gas (TIG) welding also relies on welding cables to deliver the electric current to the tungsten electrode. TIG welding is known for its precision and is often used for welding thin materials and in applications requiring high-quality welds.
  4. Stick Welding (SMAW): Shielded Metal Arc Welding (SMAW), commonly known as stick welding, involves the use of a welding electrode with a flux coating. The welding cable connects the welding machine to the electrode holder, allowing for the creation of the arc and the formation of the weld.
  5. Resistance Welding: Welding cables are utilized in resistance welding processes, such as spot welding and seam welding. In these applications, electrical resistance generates heat at the welding points, facilitating the joining of materials.
  6. Welding in Construction and Fabrication: Welding cables find widespread use in construction and fabrication industries where metal structures and components are joined together. This includes the construction of buildings, bridges, and various metal products.
  7. Automotive Repair and Manufacturing: Welding cables play a crucial role in automotive repair and manufacturing, where welding is used for joining metal components, repairing vehicle frames, and fabricating various automotive parts.
  8. Shipbuilding and Offshore Welding: In the shipbuilding and offshore industries, welding cables are essential for joining metal components to construct ships, offshore platforms, and other marine structures.



SKU: AHS56467 Category:

size

Cable Length 2.2 M

Safety Precautions

  1.Personal Protective Equipment (PPE):

    • Wear appropriate welding PPE, including a welding helmet with a proper filter lens, flame-resistant clothing, welding gloves, and safety boots.
    • Use flame-resistant aprons and jackets to protect against sparks, spatter, and radiant heat.
  1. Eye Protection:
    • Always wear a welding helmet with the appropriate shade of lens to protect your eyes from the intense light and UV radiation produced during welding.
  2. Ventilation:
    • Ensure proper ventilation in the welding area to disperse fumes and gases produced during the welding process. Work in well-ventilated spaces or use local exhaust ventilation systems.
  3. Fire Safety:
    • Keep a fire extinguisher nearby and know how to use it. Welding can produce sparks and hot materials that may lead to fires.
    • Clear the work area of flammable materials before starting welding operations.
  4. Inspection of Equipment:
    • Regularly inspect welding cables, electrodes, and other equipment for any signs of damage, wear, or deterioration. Replace or repair damaged components promptly.
  5. Electrical Safety:
    • Ensure that the welding machine is properly grounded to prevent electrical shock hazards.
    • Do not use damaged or frayed welding cables. Inspect cables for wear and tear regularly.
  6. Safe Work Environment:
    • Keep the work area clean and organized to prevent tripping hazards. Coil and store welding cables properly when not in use.
    • Mark and secure the welding area to prevent unauthorized access.
  7. Training and Qualification:
    • Only allow trained and qualified personnel to operate welding equipment.
    • Ensure that individuals using welding cables and electrodes are familiar with safety procedures and emergency protocols.
  8. Avoid Electric Shock:
    • Do not touch the electrode or workpiece while the welding machine is on.
    • Keep welding cables away from water and moisture to prevent electric shock.
  9. First Aid:
    • Have a first aid kit readily available in the welding area.
    • Know the location of emergency exits and evacuation procedures.
  10. Follow Manufacturer Guidelines:
    • Adhere to the manufacturer’s guidelines and specifications for the welding equipment and accessories.
    • Follow the recommended settings for the welding machine.
