Bosch LR Laser Receivers

WhatsApp Order

The Bosch LR Laser Receivers detect laser beams over extended distances, with visual and audible alignment signals for easy positioning . Models include LR 1 (rotation lasers, 200m range, IP65), LR 2 (combi/line lasers, 50m range, IP54), LR 6 (combi/line lasers, 50m range, IP54), and LR 7 (combi/line lasers, 50m range, IP54, detects green/red, large 8cm reception area) . All models feature fine/rough accuracy of ±1mm/±3mm. The LR 1 is powered by a 9V block battery (0.25kg) , the LR 2 by a 9V block battery (0.27kg) , and the LR 6 (0.12kg) and LR 7 (0.15kg) are powered by AAA and AA batteries respectively . Suitable for surveyors, civil engineers, and construction professionals.

Compare

Add to wishlist

Categories: HAND TOOLS, Measuring Tools (Tapes, Levels, Calipers) Tags: Bosch LR 1, Bosch LR 2, Bosch LR 6, Bosch LR 7, Bosch Professional, construction tool, Laser Accessory, Laser Detector, Laser Receiver, Levelling Accessory, Line Laser Receiver, Rotary Laser Receiver, Surveying Accessory

Description

Table of Contents

Bosch LR Laser Receivers

PRIMARY USES

1. Extended Range Detection for Laser Levelling

Primary Use: Laser receivers (available in LR 1, LR 2, LR 6, and LR 7 models) used to detect laser beams over long distances or in bright lighting conditions. Essential for extending the working range of rotary, line, and combi lasers for outdoor and large-scale construction applications.

How it helps: For surveyors, civil engineers, and construction crews, the laser receiver detects the invisible or hard-to-see laser beam and provides visual and audible alignment signals for easy positioning . The LR 1 is designed for rotation lasers and provides a working range of up to 200 metres when used with compatible rotary lasers like the GRL 300 HV Professional . The LR 2, LR 6, and LR 7 are designed for line and combi lasers, extending the detection range to up to 50 metres . The dual-sided display (on select models) and audible signals allow for easy alignment of the laser beam plane, even in various lighting conditions. The LR 7 offers the ability to detect both green and red laser lines, and features a large 8cm reception area for fast detection of the laser line .

2. Outdoor and Long-Distance Work

Primary Use: Enables use of laser tools in bright sunlight and over long distances where the laser beam would otherwise be invisible to the naked eye.

How it helps: The receivers use visual (display and LEDs) and audible signals to indicate the position of the laser plane. They are easily attached to a measuring staff for precise height readings . The LR 1 provides IP65 dust and splash protection for heavy outdoor use, while the LR 2, LR 6, and LR 7 offer IP54 protection . All models feature fine/rough accuracy settings of ±1mm / ±3mm for different application needs .

SECONDARY USES

1. Indoor Work in Bright Conditions: Detects laser lines in bright indoor environments where the beam may be difficult to see.

2. Height Transfer: Attaches to a grade rod for transferring reference heights across large areas.

3. One-Person Operation: Audible signals allow a single operator to adjust and verify height without needing a second person to view the display.

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Laser receiver accessory; not a medical device.
Designation:

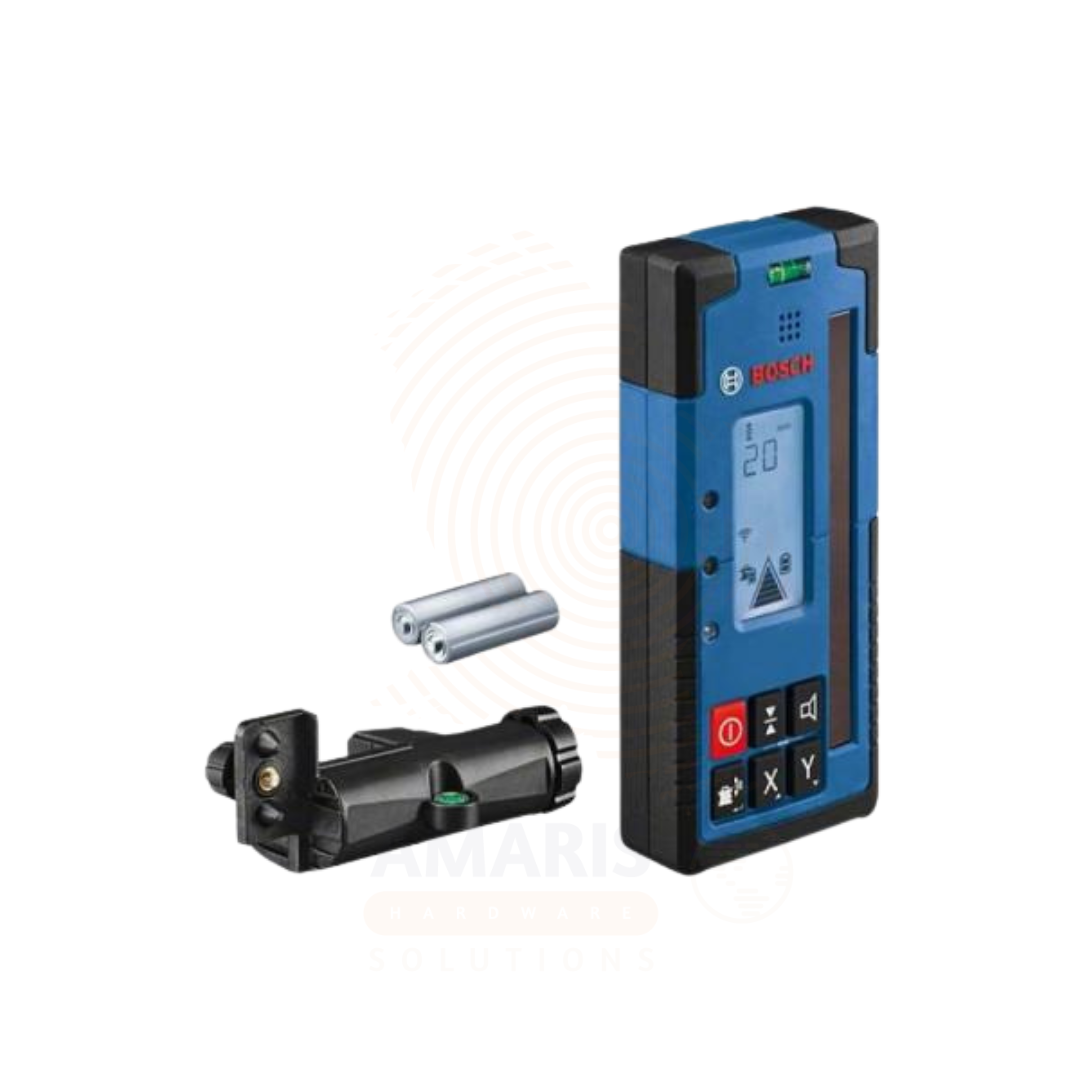

- Bosch LR 1 Professional Laser Receiver (Order number 0.601.015.400)
- Bosch LR 2 Professional High-performance Receiver (Order number 0.601.069.100)
- Bosch LR 6 Professional Laser Receiver (Order number 0.601.069.H00)
- Bosch LR 7 Professional Laser Receiver (Order number 0.601.069.J00)
Type of Receiver:
- LR 1: Rotation lasers
- LR 2, LR 6, LR 7: Combi- and line lasers
Country of Origin: China

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Detects laser beams and provides visual/audible alignment signals.
Working Range:
- LR 1: Up to 200m (with GRL 300 HV / GRL 400 H)
- LR 2, LR 6, LR 7: Up to 50m
Measuring Accuracy (Fine/Rough): ±1 mm / ±3 mm (all models)
Dust and Splash Protection:
- LR 1: IP65
- LR 2, LR 6, LR 7: IP54
Power Supply:
- LR 1: 1 x 9V 6LR61 block battery
- LR 2: 1 x 9V 6LR61 block battery
- LR 6: 2 x 1.5V LR03 (AAA) batteries
- LR 7: 2 x 1.5V LR6 (AA) batteries
Weight:
- LR 1: Approx. 0.25 kg
- LR 2: Approx. 0.27 kg
- LR 6: Approx. 0.12 kg
- LR 7: Approx. 0.15 kg
Reception Area:
- LR 7: 8cm
Laser Colour Detection:
- LR 7: Green and red laser lines
- LR 1, LR 2, LR 6: Not specified
Compatible Lasers:
- LR 1: GRL 300 HV, GRL 400 H rotation lasers
- LR 2: GLL 2-50, GLL 3-50
- LR 6: GLL 5-50 X
- LR 7: GCL 2-50, GCL 2-50 G, GCL 2-50 C, GCL 2-50 CG, GLL 3-80, GLL 3-80 G, GLL 3-80 C, GLL 3-80 CG

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Insert batteries as per model specifications. Attach the receiver to a measuring staff using the bracket or holder.
Usage Instructions: Position the receiver in the laser beam plane. The visual display or LEDs will show the beam position. Audible signals indicate alignment. Use fine or rough setting as required for the application.
Alignment Signals: Visual (display and LEDs) and audible .
Included Accessories:
- LR 1: Bracket, 9V block battery
- LR 2: 9V block battery
- LR 6: 2 x AAA batteries

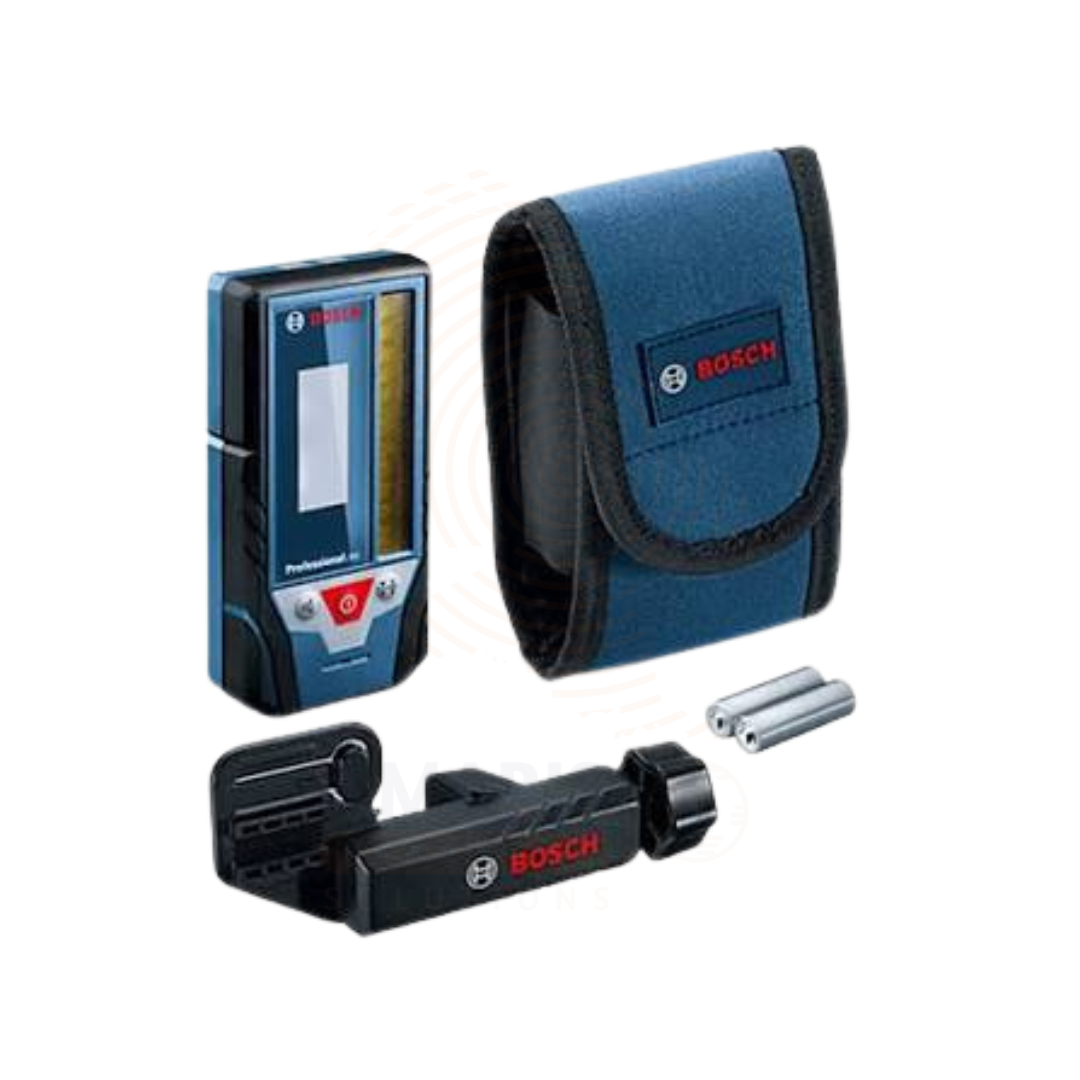

- LR 7: Protective bag, bracket, 2 x AA batteries
Storage Conditions: Store in a dry, secure place.
Cleaning: Clean housing with soft, dry cloth.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Laser accessory; no laser hazard. No special safety precautions required beyond normal use.
Environmental Protection: IP54 or IP65 dust and splash protection for jobsite durability.
Regulatory: Complies with relevant CE and UKCA standards.
Battery Safety: Use only recommended battery types. Do not short-circuit or dispose of in fire.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in a dry, secure place. Remove batteries if storing for extended periods.
Inspection: Regularly inspect receiver for damage. Check battery contacts.
Usage: This is a measuring accessory, not a power tool. Contains no moving parts.
Transport: Use protective bag for safe transport and storage (included with LR 7).

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Mechanical Safety: No special safety precautions required. Handle with normal care.

Battery Safety: Use only recommended battery types. Do not mix old and new batteries. Remove batteries if the device will not be used for long periods.

Maintenance: Clean with a soft, dry cloth. Do not use aggressive cleaning agents. Have repairs performed only by authorised service centres.

Training requirement: No specialised training required. Basic instruction on attaching to staff and interpreting alignment signals is recommended.

2. FIRST AID MEASURES

Eye Exposure: Not applicable for normal use.

Skin Contact: Not applicable for normal use.

Battery Leakage: Avoid skin contact with battery acid. Wash affected area with soap and water. Seek medical attention if irritation occurs. If acid enters eyes, rinse with plenty of clean water for at least 15 minutes and seek immediate medical attention.

Inhalation: Not applicable for normal use.

Ingestion: Not applicable for normal use.

3. FIRE FIGHTING MEASURES

Flammability: The tool is predominantly plastic and electronics, which are flammable. Batteries may leak or rupture if exposed to high temperatures.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers. Do not inhale fumes from burning batteries or plastics.
