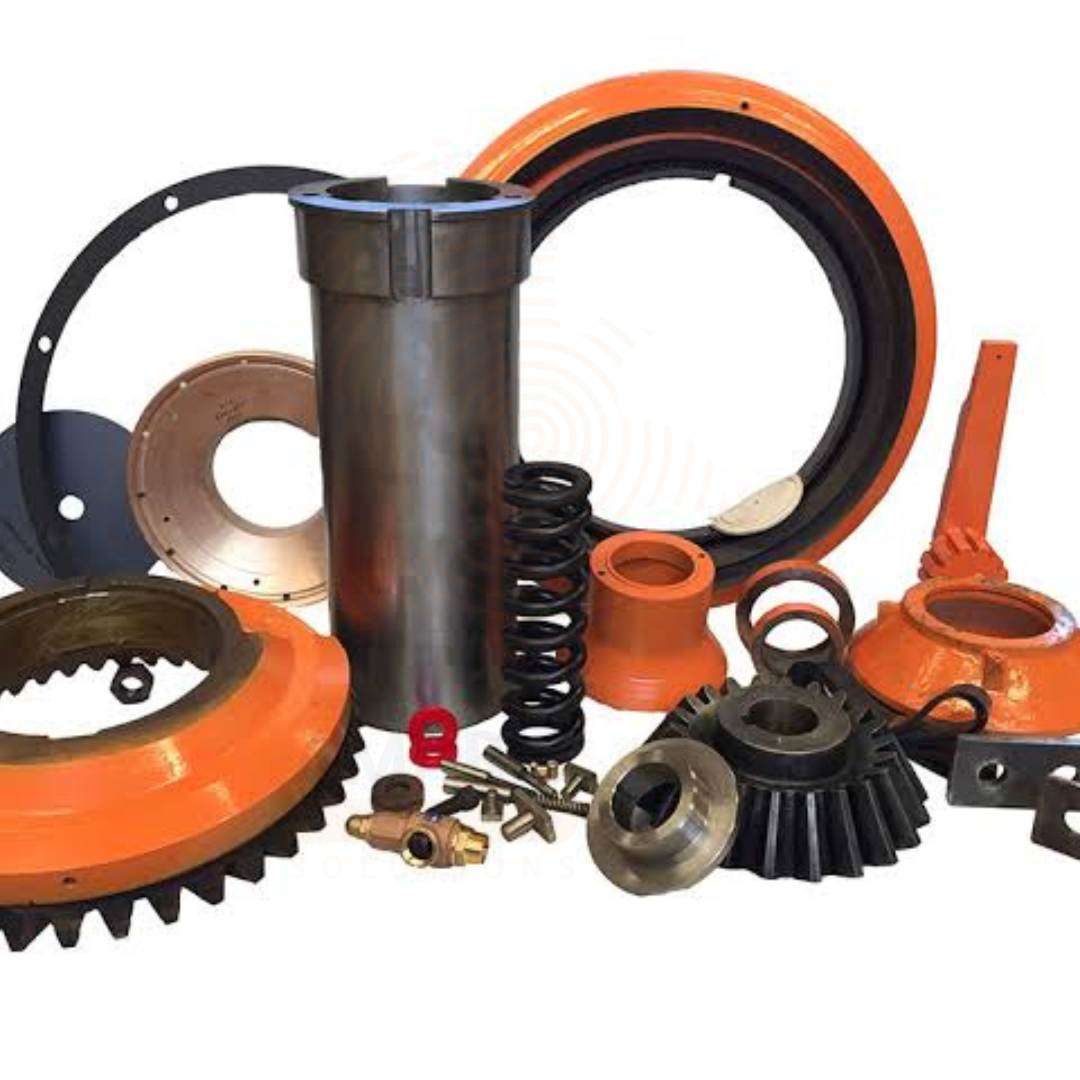

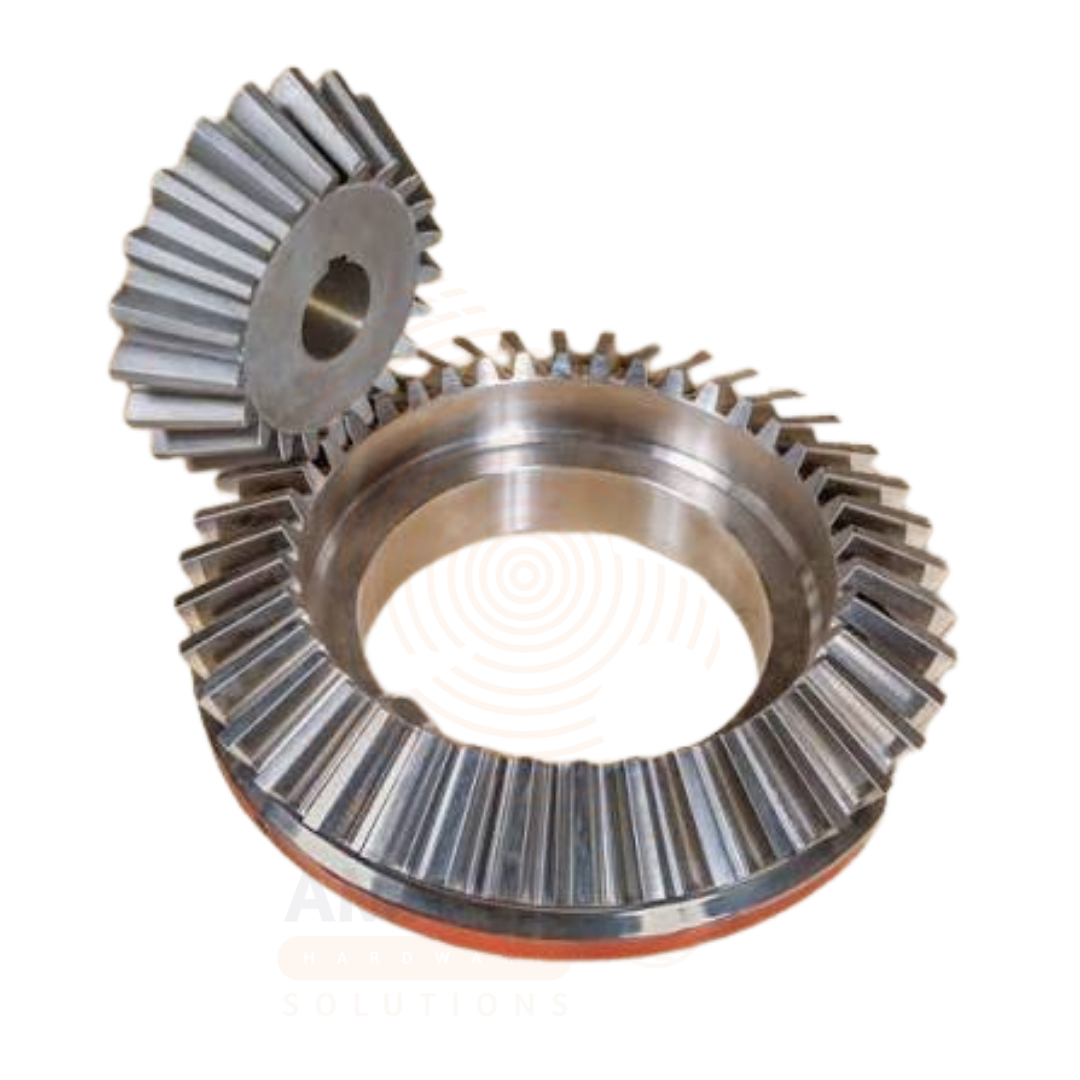

Symons Crusher Spare Parts

WhatsApp Order

The Symons Crusher Spare Parts range provides wear parts and mechanical spares for the full Symons cone crusher line, including 2ft, 3ft, 4ft, 4¼ft, 5½ft, and 7ft models . Today, Metso is the only OEM supplier of Symons parts, with original drawings and product specifications dating back to 1928 . Wear parts include mantles and bowl liners available in 13% Standard, 18% Premium, and 22% High manganese alloys , while mechanical spares include eccentric bushings, socket liners, countershaft box bushings, and step bearing plates . Premium bronze and manganese parts are also available through aftermarket suppliers. Suitable for mining, aggregates, quarrying, and recycling operations.

Compare

Add to wishlist

Description

Table of Contents

Symons Crusher Spare Parts

PRIMARY USES

1. Maintaining and Restoring Legendary Symons Crusher Performance

Primary Use: A comprehensive range of spare and wear parts for Symons cone crushers, used to maintain, repair, and optimise crushing equipment performance. Essential for mining operations, aggregates producers, and quarrying operations where crusher uptime is critical to productivity.

How it helps: For maintenance teams and plant operators, genuine and high-quality aftermarket parts ensure proper fit and function. Metso is the only OEM supplier of Symons parts, having owned the original drawings and product specifications since 1928 . Using OEM parts ensures correct fit, form, and function, while premium aftermarket parts engineered to OEM specifications offer cost-effective alternatives with equivalent or upgraded materials. Symons crusher parts are available for all Symons cone crushers in mining and aggregates applications, including 2ft, 3ft, 4ft, 4¼ft, 5½ft, and 7ft sizes .

2. Wear Parts for Maximum Performance

Primary Use: High-quality wear parts including mantles, bowl liners, and concaves designed to withstand abrasive crushing applications.

How it helps: The quality of wear parts dictates the end result, and choosing the right crusher wears is important for maintaining performance. Manganese parts are available in 13% Standard, 18% Premium, and 22% High alloys, each suited to different abrasive applications . High manganese steel parts (Mn18Cr2-Mn22Cr2) are specifically designed to work-harden under intense crushing pressure, providing extended wear life . The machine’s durability depends on these essential crusher parts, with mantles typically requiring replacement every 6-12 months in aggregate applications .

SECONDARY USES

1. Crusher Upgrades: OEM spare parts can enable full upgrades, adding crusher availability and capabilities to existing Symons equipment.

2. Enhanced Safety: Specially designed lifting tools and enhanced parts improve safety during maintenance.

3. Hydraulic System Components: Replacement locking cylinders, accumulator systems, and control valves for precise CSS adjustments .

4. Structural Components: Main shafts, adjustment rings, and dust collars for major rebuilds .

About brand

**Mizztech** is a leading supplier of high-quality heavy equipment spare parts for the mining, construction, quarrying, and earthmoving industries. The brand offers durable and reliable replacement components, including undercarriage parts, wear parts, filters, rollers, and other machinery spares designed to maximize equipment performance, reduce downtime, and extend service life. Trusted for quality and value, Mizztech products are built to meet the demands of tough industrial applications.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Crusher spare parts; not a medical device.
Brand: Symons (manufactured by Metso)
Crusher Types: Cone crushers .
Compatible Models: Symons 2ft, 3ft, 4ft, 4¼ft, 5½ft, 7ft cone crushers .

2. WEAR PARTS BY CRUSHER MODEL

Wear Components: Mantle - High-grade manganese steel (Mn18Cr2-Mn22Cr2) with multiple profile options, typically requiring replacement every 6-12 months depending on application . Bowl Liner - Precision-matched to mantle profile with ±0.5mm tolerance, manufactured from impact-resistant manganese steel . Concave - Segmented design for 4¼ft, 5½ft, and 7ft models .

3. MECHANICAL SPARE PARTS

Eccentric Assembly Components: Outer eccentric bushing - Bronze alloy (C93200/C95400) with machined lubrication channels; Inner eccentric bushing - Bronze alloy supporting mainshaft; Socket liner - Bronze component protecting socket and supporting mainshaft .

Step Bearing Components: Center step bearing plate - Supports mainshaft axial load; Lower step bearing plate - Provides thrust support .

Other Mechanical Parts: Countershaft box bushing - Bronze bushing for countershaft support; Thrust bearing - Supports axial loads; Dust collar - Triple-labyrinth seal system with grease purge .

4. MATERIAL SPECIFICATIONS

Manganese Steel: ZGMn13Cr2 (13% Standard) - Good abrasion resistance for moderate applications; ZGMn18Cr2 (18% Premium) - Higher work-hardening capacity and wear resistance; ZGMn22Cr2 (22% High) - Maximum work-hardening and abrasion resistance for the most demanding applications .

Bronze Alloys: C93200/C95400 copper alloys with machined lubrication channels for eccentric bushings and socket liners . Centrifugally cast bronze parts for diameters under 2200mm with finished machining output of 10,000kg and maximum weight per piece of 4000kg .

Cast Steel: Adjustment ring - 8,000-10,000kg cast steel component with hydraulic thread locking; Main shaft - Forged alloy steel 2.8-3.2m length with induction-hardened surfaces .

5. PARTS SPECIFICATIONS BY MODEL

Crusher Model	Key Parts	Drawing/Part Reference	Approx. Weight
Symons 3ft	Outer eccentric bushing	2214-5321	71 kg
	Inner eccentric bushing (Standard/Short head)	2207-0561 / 2207-1401	50 / 51 kg
	Socket liner (Standard/Short head)	4872-3565 / 4872-4795	38 / 41 kg
	Center step bearing plate	5759-8701	9 kg
Symons 4ft	Outer eccentric bushing	2214-5601	129 kg
	Inner eccentric bushing	2214-4481	75 kg
	Socket liner	4872-5205	71 kg
	Center step bearing plate	5760-0801	15 kg
Symons 4¼ft	Outer eccentric bushing	2214-5885	148 kg
	Inner eccentric bushing	2214-3930	103 kg
	Socket liner (Standard/Short head)	4872-6435 / 4872-6430	74 / 61 kg
	Countershaft box bushing	2206-2090	18 kg
Symons 5½ft	Outer eccentric bushing	2214-6161	306 kg
	Inner eccentric bushing	2214-5706	180 kg
	Socket liner	4872-7050	195 kg
	Center step bearing plate	5760-4401	23 kg
Symons 7ft	Outer eccentric bushing	2214-7561	485 kg
	Inner eccentric bushing	2214-6721	331 kg
	Socket liner (Standard/Short head)	4872-8485 / 4872-8520	300 / 300 kg
	Center step bearing plate	5760-7701	43 kg

Source: Aftermarket parts lists

6. PHYSICAL & OPERATIONAL PROPERTIES

Interchangeability: OEM parts ensure correct profiles, tolerances, and clearances for perfect fit. Premium aftermarket parts are dimensionally identical to OEM parts, designed to integrate seamlessly . All patterns produced according to original drawings, ensuring perfect matching with your crushers .

Global Support: Metso provides spare parts for all Symons cone crushers with inventory available in multiple locations, committed to supporting you with spare parts and services for the lifecycle of your Symons crusher .

Safety: OEM lifting tools improve safety for maintenance personnel. High manganese steel parts are designed to work-harden under pressure, extending wear life and reducing maintenance frequency .

7. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Mechanical components; standard industrial safety practices apply.
Safety Features: Proper lifting tools for safe handling of wear parts.
Compliance: OEM parts are warranted free from defect with guaranteed fit and form. Aftermarket suppliers offer ISO 9001 certified parts with inspection and test reports .

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, gloves, hard hats, and steel-toed boots when handling or installing crusher parts.

Lockout/Tagout: Always isolate and lock out the crusher from its power source before beginning any maintenance or installation work.

Lifting: Use appropriate lifting tools for specific wear parts to ensure safe and efficient installation. Heavy components such as adjustment rings (8,000-10,000kg), mantles (3-4 tons for 7ft models), and eccentric assemblies require proper lifting equipment .

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for installing spare parts on the specific Symons crusher model. Operators should understand that using OEM or quality verified parts with correct tolerances prevents equipment failure.

2. FIRST AID MEASURES

Eye Exposure: If dust or debris enters the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.
