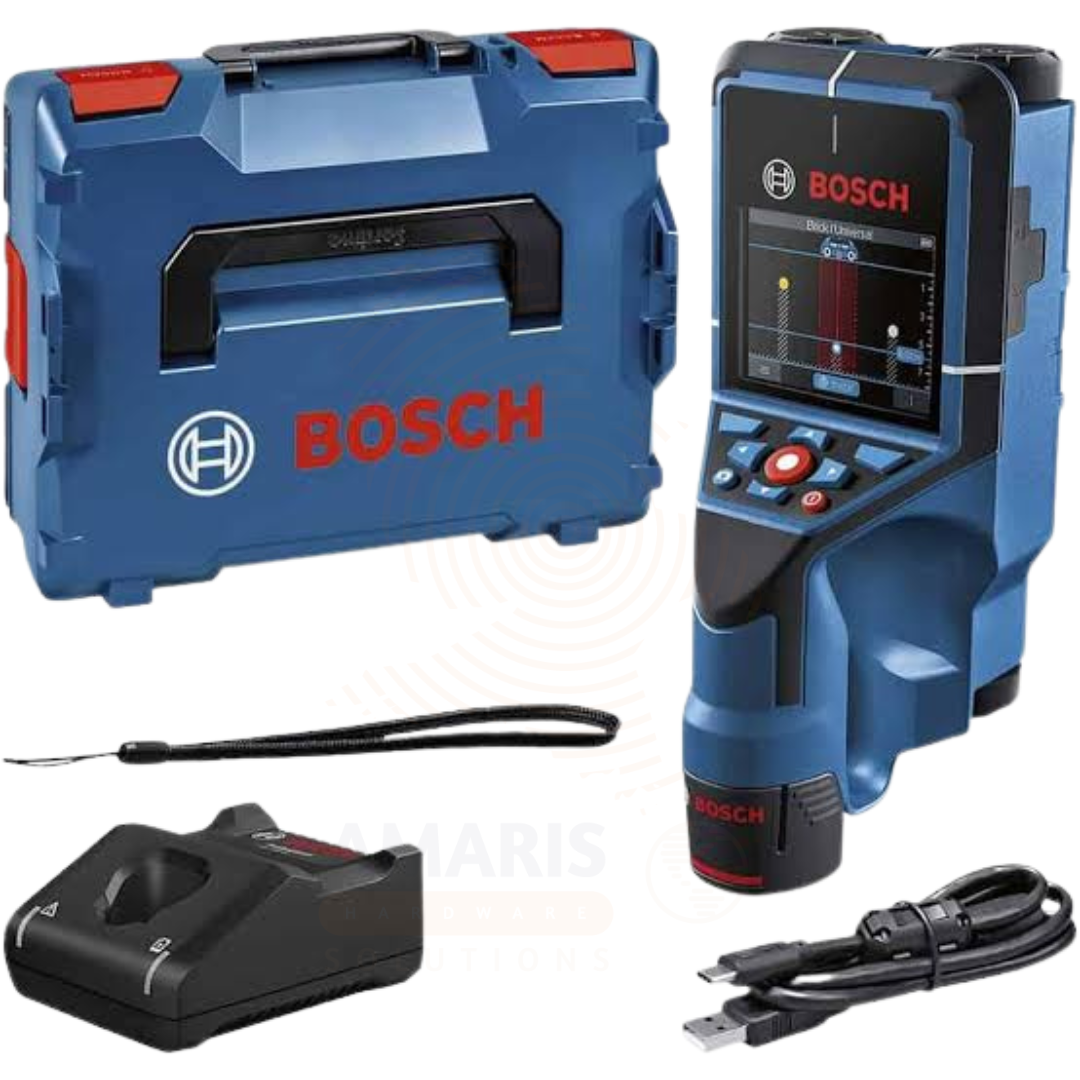

Bosch D-tect 200 C Wallscanner

WhatsApp Order

The Bosch D-tect 200 C Wallscanner is a radar-based multi-detector with 200mm maximum detection depth for magnetic metals and accurate detection of non-magnetic metals (80mm), live cables (80mm), wooden substructures (38mm), and plastic pipes . Features include Bosch Radar Technology, four viewing modes (Object, Spot, Signal 2D, Signal), IP5X dust and splash protection , accuracy of ±5mm , 3.5-inch colour display with intuitive user interface, screenshot documentation, and data transfer via USB-C and SD card . Powered by 12V Li-Ion battery or 4 x AA batteries (dual power source). Additional functions include leakage detection and distance measurement. Suitable for electricians, plumbers, HVAC installers, and general contractors.

Compare

Add to wishlist

Categories: HAND TOOLS, Measuring Tools (Tapes, Levels, Calipers) Tags: Bosch D-tect 200 C, Bosch Professional, Cable Detector, construction tool, Drilling Safety, Metal Detector, Multi-Detector, Pipe Detector, Radar Wallscanner, renovation tool, Stud Finder, Wall Detector, Wallscanner

Description

Table of Contents

Bosch D-tect 200 C Wallscanner

PRIMARY USES

1. Comprehensive Detection for Safe Drilling and Core Drilling

Primary Use: A professional radar wallscanner (200mm detection depth) used for detecting all common objects in walls, floors, and ceilings before drilling, cutting, or core drilling. Essential for preventing damage to hidden utilities and ensuring worker safety during construction and renovation.

How it helps: For electricians, plumbers, HVAC installers, and general contractors, the D-tect 200 C provides comprehensive detection of magnetic metals (e.g., iron), non-magnetic metals (e.g., copper), live and non-live cables, empty and water-filled plastic pipes, and wooden substructures . The Bosch Radar Technology and modern user interface provide precision, higher safety, and clear illustration of detected objects . The tool supports both indoor and outdoor jobs, prevents damage during drilling, and measures concrete coverage .

2. Multiple Views for Different Applications

Primary Use: Four different views flexibly offer the best results in various situations: Object View, Spot View, Signal View 2D, and Signal View .

How it helps: The multiple viewing options allow users to choose the best representation for different applications. Spot View makes detection in hard-to-reach locations such as corners especially easy . The large 3.5-inch colour display furnishes easy viewing and clear readability with an intuitive user interface that gives clear illustration of detected objects . The tool identifies material type as live cable, magnetic metal, non-magnetic metal, or non-metal material .

3. Documentation and Data Transfer

Primary Use: The innovative screenshot feature enables quick and easy documentation of detection results for evidence and reporting purposes .

How it helps: Screenshots can be saved and transferred to a computer for further analysis via USB-C connection or SD card slot . This feature provides solid evidence of scanning results, which is particularly useful for quality assurance, client reporting, and project documentation. The product software is updatable remotely .

SECONDARY USES

1. Leakage Detection: The additional leakage detection function allows fast discovery of leaks in walls and floors .

2. Distance Measurement: The tool includes an additional distance measurement function .

3. Drywall and Panel Heating Detection: Detects wooden substructures in drywall (up to 38mm) and identifies panel heating systems .

4. Early Age Concrete Detection: Detects objects in early age concrete up to 60mm depth .

5. Concrete Coverage Measurement: Measures concrete coverage for assessing structural elements .

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Radar wallscanner; not a medical device.
Designation: Bosch D-tect 200 C Professional
Order Numbers: 0.601.081.600 / 0.601.081.6K0 / 0.601.081.6G0
Bosch Radar Technology: Yes
Max Detection Depth: 200 mm
Accuracy: ± 5 mm
Dust and Splash Protection: IP5X
Country of Origin: Malaysia

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Radar-based detection of hidden objects in walls, floors, and ceilings.
Detectable Objects: Magnetic metals (e.g., iron), non-magnetic metals (e.g., copper), live cables, non-live cables, low-voltage and data cables, empty plastic pipes, water-filled plastic pipes, wooden substructures
Detection Depth, Dry Concrete: 200 mm
Detection Depth, Early Age Concrete: 60 mm
Detection Depth, Other Wall Types: 80 mm
Detection Depth, Non-Magnetic Metals: 80 mm
Detection Depth, Live Cables: 80 mm
Detection Depth, Wooden Substructures: 38 mm
Display: 3.5-inch colour display
Views: Object View, Spot View, Signal View 2D, Signal View
Wall Types: Brick/Universal, Concrete, Drywall, Panel Heating, Early Age Concrete, Horizontal Coring Brick, Vertical Coring Brick
Material Identification: Live cable, Magnetic metal, Non-magnetic metal, Non-metal material
Documentation: Screenshot feature, USB-C, SD Card
Updatable: Yes (software updates)
Additional Functions: Leakage detection, distance measurement

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Insert batteries or 12V Li-Ion battery. Select wall type and view mode. The tool calibrates automatically.
Usage Instructions: Move the tool slowly and steadily across the wall surface following the direction arrows. The display shows detected objects with depth indication and material identification. Use Spot View for scanning in corners and hard-to-reach locations. Use screenshot feature to document results.
Power Supply: 12V Li-Ion battery, 4 x 1.5V LR6 (AA), 4 x 1.2V HR06 (AA)
Dual Power Source: Compatible with 12V Li-Ion battery or AA batteries
Battery Voltage: 12.0 V
Weight: 0.7 kg
Storage Conditions: Store in a dry, secure place.
Cleaning: Clean housing with soft, dry cloth.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Electronic measuring device; no laser hazard. No special safety precautions required beyond normal use.
Environmental Protection: IP5X protection against dust ingress and water splashes
Regulatory: Complies with relevant CE and UKCA standards.
Battery Safety: Use only recommended battery types. Do not short-circuit or dispose of in fire.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in a dry, secure place. Remove batteries if storing for extended periods.
Inspection: Regularly inspect tool for damage. Check functionality before use.
Usage: For best results, move the tool slowly and steadily. Select appropriate wall type for the material being scanned.
Transport: Use supplied pouch or L-BOXX for storage and transport.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Operational Safety: This is a measuring tool, not a power tool. Contains no moving parts or cutting elements. Use with reasonable care to avoid dropping.

Battery Safety: Use only recommended battery types. Do not mix old and new batteries. Remove batteries if the device will not be used for long periods.

Maintenance: Clean with a soft, dry cloth. Do not use aggressive cleaning agents. Have repairs performed only by authorised service centres.

Training requirement: Operators should be familiar with selecting the correct wall type and interpreting detection results. Supervisors should ensure operators understand the tool's detection capabilities and limitations.

2. FIRST AID MEASURES

Eye Exposure: Not applicable for normal use.

Skin Contact: Not applicable for normal use.

Battery Leakage: Avoid skin contact with battery acid. Wash affected area with soap and water. Seek medical attention if irritation occurs. If acid enters eyes, rinse with plenty of clean water for at least 15 minutes and seek immediate medical attention.

Inhalation: Not applicable for normal use.

Ingestion: Not applicable for normal use.

3. FIRE FIGHTING MEASURES

Flammability: The tool is predominantly plastic and electronics, which are flammable. Batteries may leak or rupture if exposed to high temperatures.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers. Do not inhale fumes from burning batteries or plastics.

Bosch D-tect 200 C Wallscanner

Bosch D-tect 200 C Wallscanner

PRIMARY USES

1. Comprehensive Detection for Safe Drilling and Core Drilling

Primary Use: A professional radar wallscanner (200mm detection depth) used for detecting all common objects in walls, floors, and ceilings before drilling, cutting, or core drilling. Essential for preventing damage to hidden utilities and ensuring worker safety during construction and renovation.

2. Multiple Views for Different Applications

Primary Use: Four different views flexibly offer the best results in various situations: Object View, Spot View, Signal View 2D, and Signal View .

3. Documentation and Data Transfer

Primary Use: The innovative screenshot feature enables quick and easy documentation of detection results for evidence and reporting purposes .

SECONDARY USES

1. Leakage Detection: The additional leakage detection function allows fast discovery of leaks in walls and floors .

2. Distance Measurement: The tool includes an additional distance measurement function .

3. Drywall and Panel Heating Detection: Detects wooden substructures in drywall (up to 38mm) and identifies panel heating systems .

4. Early Age Concrete Detection: Detects objects in early age concrete up to 60mm depth .

5. Concrete Coverage Measurement: Measures concrete coverage for assessing structural elements .

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Radar wallscanner; not a medical device.

Designation: Bosch D-tect 200 C Professional

Order Numbers: 0.601.081.600 / 0.601.081.6K0 / 0.601.081.6G0

Bosch Radar Technology: Yes

Max Detection Depth: 200 mm

Accuracy: ± 5 mm

Dust and Splash Protection: IP5X

Country of Origin: Malaysia

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Radar-based detection of hidden objects in walls, floors, and ceilings.

Detectable Objects: Magnetic metals (e.g., iron), non-magnetic metals (e.g., copper), live cables, non-live cables, low-voltage and data cables, empty plastic pipes, water-filled plastic pipes, wooden substructures

Detection Depth, Dry Concrete: 200 mm

Detection Depth, Early Age Concrete: 60 mm

Detection Depth, Other Wall Types: 80 mm

Detection Depth, Non-Magnetic Metals: 80 mm

Detection Depth, Live Cables: 80 mm

Detection Depth, Wooden Substructures: 38 mm

Display: 3.5-inch colour display

Views: Object View, Spot View, Signal View 2D, Signal View

Wall Types: Brick/Universal, Concrete, Drywall, Panel Heating, Early Age Concrete, Horizontal Coring Brick, Vertical Coring Brick

Material Identification: Live cable, Magnetic metal, Non-magnetic metal, Non-metal material

Documentation: Screenshot feature, USB-C, SD Card

Updatable: Yes (software updates)

Additional Functions: Leakage detection, distance measurement

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Insert batteries or 12V Li-Ion battery. Select wall type and view mode. The tool calibrates automatically.

Power Supply: 12V Li-Ion battery, 4 x 1.5V LR6 (AA), 4 x 1.2V HR06 (AA)

Dual Power Source: Compatible with 12V Li-Ion battery or AA batteries

Battery Voltage: 12.0 V

Weight: 0.7 kg

Storage Conditions: Store in a dry, secure place.

Cleaning: Clean housing with soft, dry cloth.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Electronic measuring device; no laser hazard. No special safety precautions required beyond normal use.

Environmental Protection: IP5X protection against dust ingress and water splashes

Regulatory: Complies with relevant CE and UKCA standards.

Battery Safety: Use only recommended battery types. Do not short-circuit or dispose of in fire.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in a dry, secure place. Remove batteries if storing for extended periods.

Inspection: Regularly inspect tool for damage. Check functionality before use.

Usage: For best results, move the tool slowly and steadily. Select appropriate wall type for the material being scanned.

Transport: Use supplied pouch or L-BOXX for storage and transport.

1. SAFETY PRECAUTIONS

Operational Safety: This is a measuring tool, not a power tool. Contains no moving parts or cutting elements. Use with reasonable care to avoid dropping.

Battery Safety: Use only recommended battery types. Do not mix old and new batteries. Remove batteries if the device will not be used for long periods.

Maintenance: Clean with a soft, dry cloth. Do not use aggressive cleaning agents. Have repairs performed only by authorised service centres.

Training requirement: Operators should be familiar with selecting the correct wall type and interpreting detection results. Supervisors should ensure operators understand the tool's detection capabilities and limitations.

2. FIRST AID MEASURES

Eye Exposure: Not applicable for normal use.

Skin Contact: Not applicable for normal use.

Battery Leakage: Avoid skin contact with battery acid. Wash affected area with soap and water. Seek medical attention if irritation occurs. If acid enters eyes, rinse with plenty of clean water for at least 15 minutes and seek immediate medical attention.

Inhalation: Not applicable for normal use.

Ingestion: Not applicable for normal use.

3. FIRE FIGHTING MEASURES

Flammability: The tool is predominantly plastic and electronics, which are flammable. Batteries may leak or rupture if exposed to high temperatures.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers. Do not inhale fumes from burning batteries or plastics.
