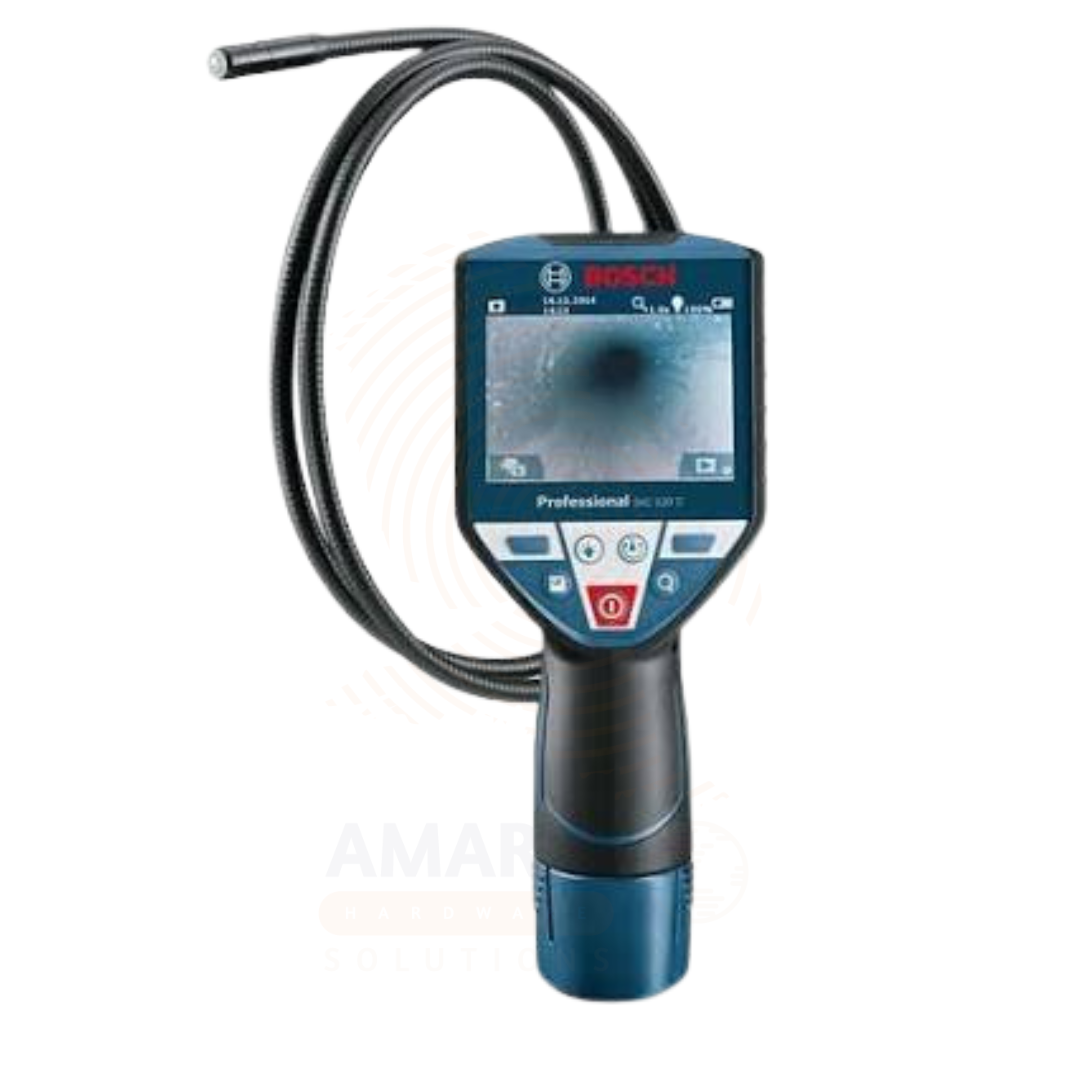

Bosch GIC 120 C Inspection Camera

WhatsApp Order
The Bosch GIC 120 C Inspection Camera features a 120cm long, 8.5mm diameter camera cable with integrated bright LED light for inspecting hard-to-reach areas . Key features include the “Up is Up” function for automatic image rotation and optimal spatial orientation , Quick Connector technology for fast camera cable changes and compact storage , digital zoom for better detail recognition , 3.5-inch display with 320 x 240 pixel resolution , and Dual Power Source technology allowing operation with both 12V Li-Ion battery or 4 x AA alkaline batteries . IP67 waterproof camera cable . Includes hook, magnet, mirror accessories, Micro-USB cable, 4GB MicroSD card, L-BOXX and insert. Suitable for electricians, plumbers, HVAC installers, and automotive technicians.
Compare
Add to wishlist
Categories: , Tags: , , , , , , , , , , , ,
Description

Table of Contents

Bosch GIC 120 C Inspection Camera

PRIMARY USES

1. Inspection of Hard-to-Reach Areas
Primary Use: A battery-powered inspection camera (120cm cable length, 8.5mm camera head diameter) used for inspecting and documenting hard-to-reach areas. Essential for examining the interiors of distribution boxes, pipes, wall cavities, hydraulic systems, and automotive applications .
How it helps: For electricians, plumbers, HVAC installers, and automotive technicians, the inspection camera provides visual access to areas that would otherwise require destructive inspection. The 120cm long camera cable with integrated bright LED light ensures clear visibility in dark areas . The camera cable offers the optimal compromise of rigidity and flexibility, making it easy to guide through tight spaces .
2. Documentation of Inspection Results
Primary Use: Captures images and videos of inspection findings for documentation and reporting purposes.
How it helps: Images and videos can be transferred directly via Micro-USB cable or MicroSD card for high-quality documentation and quick storage of critical areas . The 3.5-inch display with 320 x 240 pixel resolution allows immediate viewing of captured content . The digital zoom function enables better recognition of details .
3. Spatial Orientation with “Up is Up” Function
Primary Use: For optimal spatial orientation, the “Up is Up” function operates with rotation and simultaneous image alignment on the display .
How it helps: The display automatically rotates to show users which way is up, ensuring clear orientation regardless of camera position . This is particularly useful when the camera is rotated during inspection, as it maintains spatial awareness and prevents disorientation.

SECONDARY USES

1. Pipe and Drainage Inspection: Checks for blockages, damage, or corrosion in plumbing systems.
2. Wall Cavity Inspection: Examines inside walls for hidden damage, wiring, or structural issues.
3. Distribution Box Inspection: Inspects electrical panels and junction boxes without dismantling.
4. HVAC System Inspection: Checks ductwork, heat exchangers, and other hard-to-reach components.
5. Automotive Diagnostics: Inspects engine bays, behind dashboards, and other confined spaces.
6. Leak Detection: Identifies sources of leaks in buildings and hydraulic systems.
About brand
**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.
KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

  • Device Type: Battery-powered inspection camera/endoscope; not a medical device.
  • Designation: Bosch GIC 120 C Professional
  • Manufacturer Number: 0601241208
  • Camera Cable Length: 1.2m (120cm)
  • Camera Head Diameter: 8.5mm
  • Display: 3.5-inch, 320 x 240 pixel resolution
  • Camera Cable Protection: IP67 waterproof
  • Minimum Bending Radius: 25mm
  • Country of Origin: China

2. TECHNICAL & PERFORMANCE PROPERTIES

  • Primary Action: Visual inspection via camera head with LED illumination.
  • Video Capture Resolution: 720p or 1080p depending on variant
  • Digital Zoom: Yes, for better detail recognition
  • Power Supply: 12V Li-Ion battery (GBA 10.8V/12V) or 4 x 1.5V LR6 (AA) alkaline batteries
  • Battery Life: Approx. 2 hours with batteries, approx. 6 hours with 12V Li-Ion battery
  • Dual Power Source Technology: Yes
  • Quick Connector Technology: For fast and easy camera cable changes
  • LED Lighting: Integrated bright LED in camera head
  • Operating Temperature: -10°C to +50°C
  • Storage Temperature: -20°C to +70°C
  • Dimensions: 217 x 90 x 49mm
  • Weight: 0.64kg

3. PHYSICAL & OPERATIONAL PROPERTIES

  • Preparation: Insert 12V Li-Ion battery or 4 x AA alkaline batteries. Attach camera cable using Quick Connector technology. Select desired accessory (hook, magnet, mirror).
  • Usage Instructions: Power on the tool. Insert camera cable into the area to be inspected. The display shows real-time images. Use digital zoom for detail inspection. Capture images or videos using control buttons. The "Up is Up" function automatically rotates the display for correct orientation .
  • Storage Conditions: Store in a dry, secure place. The Quick Connector technology allows compact storage of the device when camera cable is detached .
  • Cleaning: Clean housing with soft, dry cloth. Clean camera lens carefully without scratching.

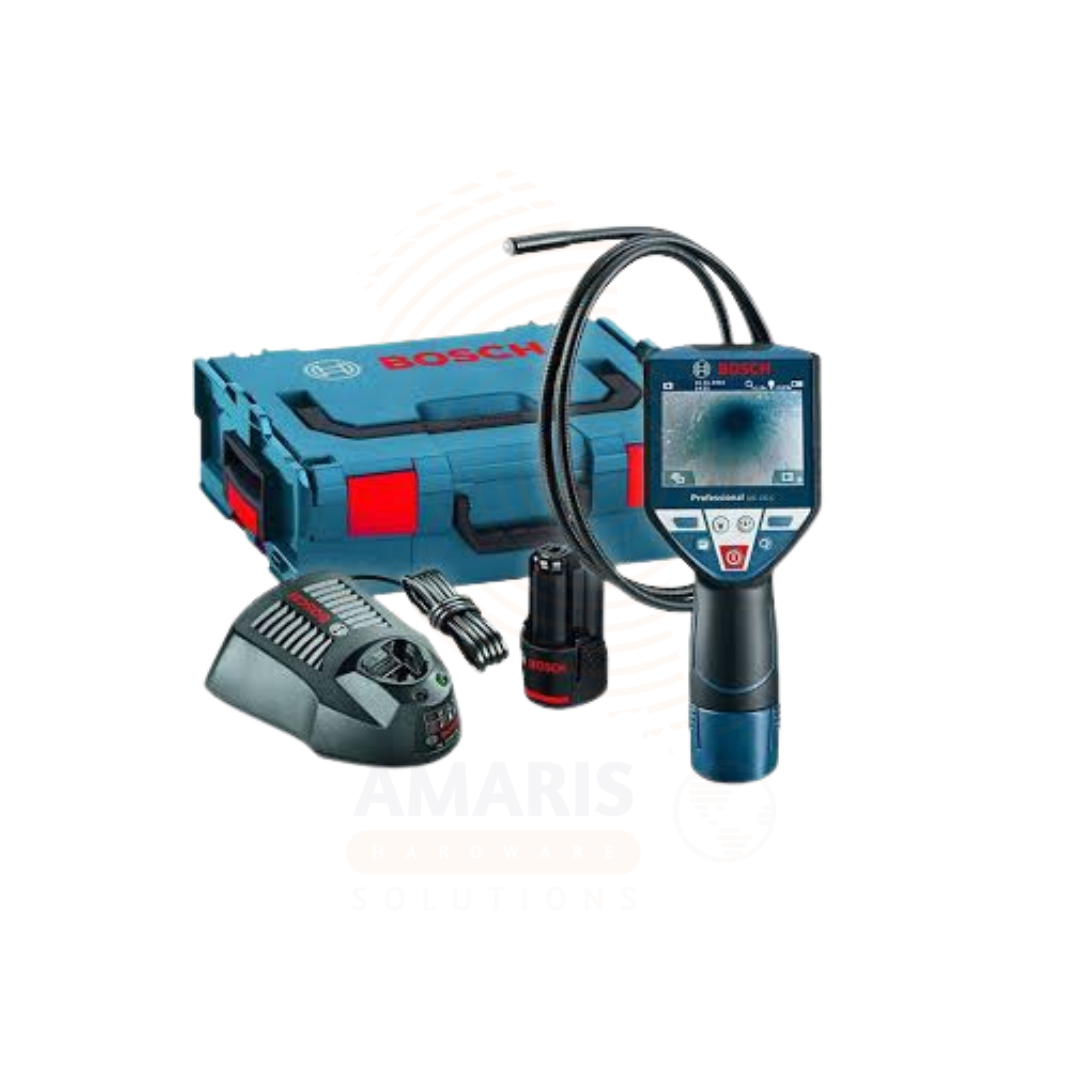

  • Included Accessories: Hook, magnet, mirror, Micro-USB cable, 4GB MicroSD card, L-BOXX, L-BOXX insert
  • Optional Accessories: 3.8mm thin camera head, 3m cable version

4. SAFETY & COMPLIANCE ATTRIBUTES

  • Safety Classification: Electronic inspection device; no laser hazard. Contains no moving parts.
  • Waterproof: IP67 rated camera cable for dust and water protection
  • Regulatory: Complies with relevant CE and UKCA standards.
  • Battery Safety: Use only recommended battery types (GBA 10.8V/12V or AA alkaline). Do not short-circuit or dispose of in fire.

5. STORAGE & HANDLING ATTRIBUTES

  • Storage: Store in L-BOXX in a dry, secure place. Remove batteries if storing for extended periods.
  • Inspection: Regularly inspect camera cable for damage. Check lens for clarity.
  • Usage: Do not bend cable beyond minimum bending radius of 25mm . Avoid sharp bends that could damage the cable.
  • Transport: Use L-BOXX for safe transport and storage .
SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Operational Safety: This is an inspection tool, not a power tool. Contains no moving parts or cutting elements. Use with reasonable care to avoid damaging the camera cable.
Cable Care: Avoid bending the camera cable beyond the minimum bending radius of 25mm. Do not pull or stretch the cable excessively. Inspect cable regularly for damage.
Battery Safety: Use only recommended battery types (12V Li-Ion or AA alkaline). Do not mix old and new batteries. Remove batteries if device will not be used for long periods.
Maintenance: Clean camera lens with a soft, dry cloth. Do not use aggressive cleaning agents. Have repairs performed only by authorised service centres.
Training requirement: No specialised training required. Basic instruction on camera handling and interpretation of images is recommended.

2. FIRST AID MEASURES

Eye Exposure: Not applicable for normal use.
Skin Contact: Not applicable for normal use.
Battery Leakage: Avoid skin contact with battery acid. Wash affected area with soap and water. Seek medical attention if irritation occurs. If acid enters eyes, rinse with plenty of clean water for at least 15 minutes and seek immediate medical attention.
Inhalation: Not applicable for normal use.
Ingestion: Not applicable for normal use.

3. FIRE FIGHTING MEASURES

Flammability: The tool is predominantly plastic and electronics, which are flammable. Batteries may leak or rupture if exposed to high temperatures.
Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.
Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers. Do not inhale fumes from burning batteries or plastics.
