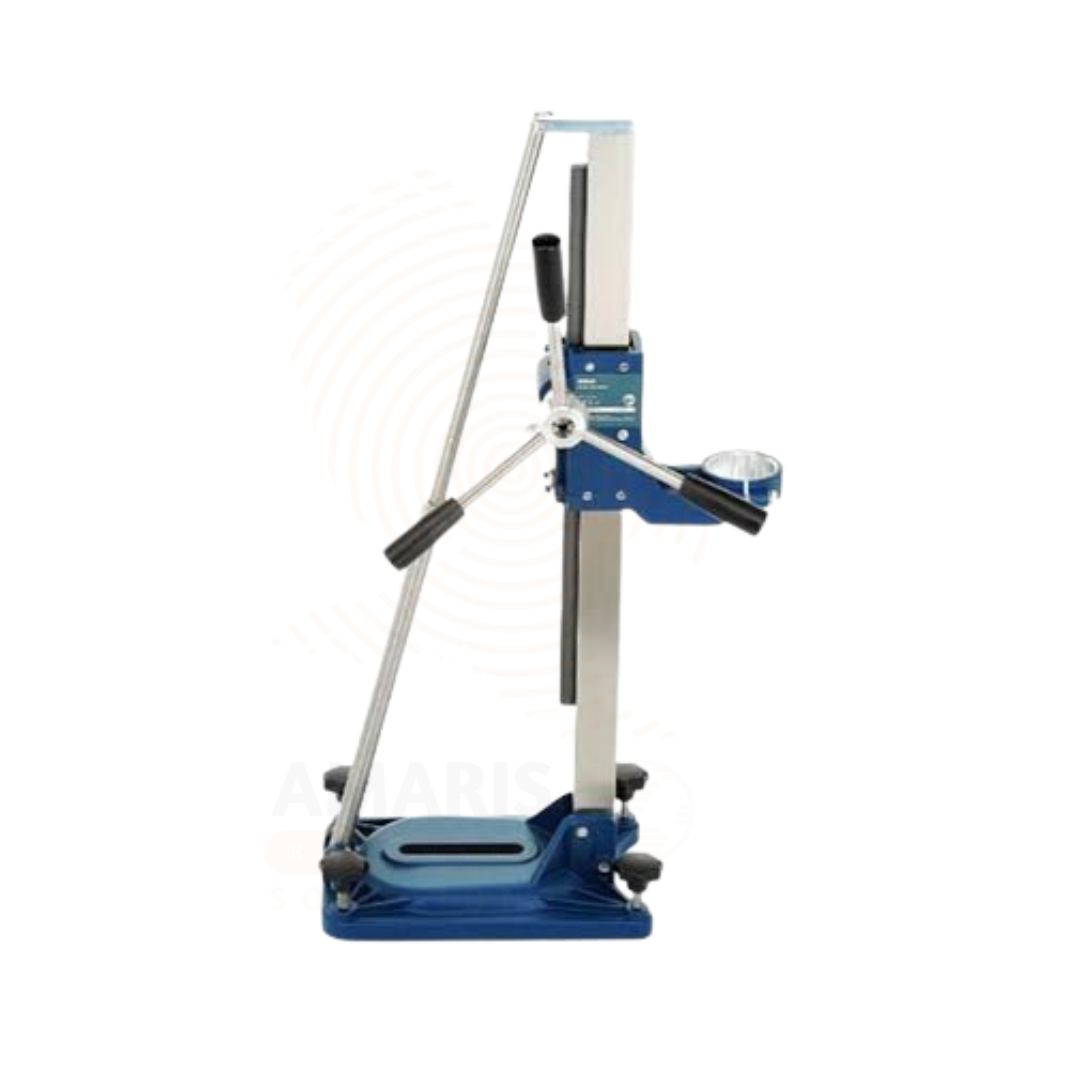

Bosch GCR 180 Professional Diamond Drill Stand

WhatsApp Order

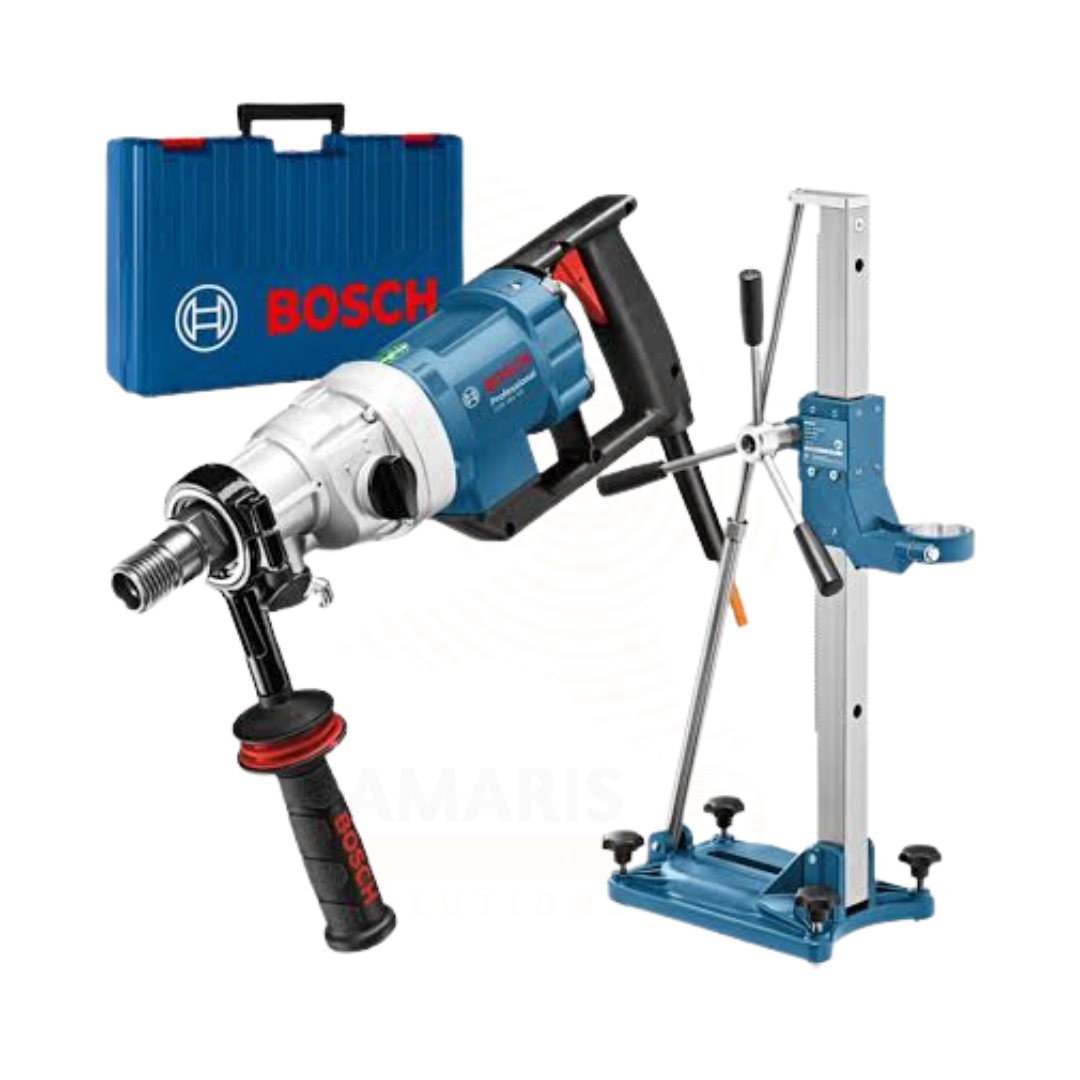

The Bosch GCR 180 Professional Diamond Drill Stand is a robust, precision-engineered stand designed for use with diamond core drills like the GDB 180 WE and EXPERT EXDB18V2-180 for drilling large holes in concrete and masonry . Features include a durable aluminium column with high torsional strength, 45° swivel joint, 60mm quick-release clamping collar, bit centre pointer, spirit level, and drilling depth scale . Available in two variants: GCR 180 (0.601.190.100) with 514mm drill stroke, 9.5kg weight and GCR 180 (II) (0.601.190.400) with 495mm drill stroke, 13.2kg weight . Suitable for plumbers, electricians, HVAC installers, and construction professionals.

Compare

Add to wishlist

Categories: POWER TOOLS, Drills & Drivers

Description

Table of Contents

Bosch GCR 180 Professional Diamond Drill Stand

PRIMARY USES

1. Stable Mounting for Diamond Core Drilling in Concrete and Masonry

Primary Use: A professional diamond drill stand used for stable, precise mounting of diamond core drills (such as the GDB 180 WE) for drilling large diameter holes in concrete, masonry, walls, ceilings, and floors. Essential for plumbers, electricians, HVAC installers, and construction professionals requiring accurate, safe core drilling for pipe and cable penetrations .

How it helps: For professionals, the drill stand provides a stable foundation for the diamond drill, enabling precise and effortless drilling, especially in demanding applications like overhead work . The robust aluminium column with high torsional strength ensures stable support even under heavy loads. The combined base can be mounted by anchor or vacuum, providing versatility for different job site conditions .

2. Versatile Mounting Options for Various Applications

Primary Use: Features a combined base that can be mounted using anchor bolts or a vacuum base, providing flexibility for different surfaces and working conditions .

How it helps: The anchor mounting option provides secure attachment to concrete surfaces for maximum stability. The vacuum mounting option enables quick setup and removal without damaging the work surface. The 45° swivel joint allows drilling at various angles for angled penetrations .

SECONDARY USES

1. Angled Drilling: The 45° swivel joint enables drilling at precise angles for sloping pipe and cable runs.

2. Multi-Position Mounting: Suitable for wall, ceiling, and floor applications with appropriate mounting configuration .

3. Precision Alignment: The built-in bit centre pointer, spirit level, and drilling depth scale enable accurate positioning and controlled drilling depth .

4. Heavy-Duty Construction: Suitable for heating, air conditioning, water, and electrical system installations .

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Diamond drill stand; not a medical device.
Designation: Bosch GCR 180 Professional Diamond Drill Stand
Order Numbers:
- 0.601.190.100 (GCR 180)
- 0.601.190.400 (GCR 180 (II))
Country of Origin: China / India (varies by production batch)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Provides stable mounting platform for diamond core drills.
Max Drilling Diameter: 180mm
Material: Durable aluminium with high torsional strength
Swivel: 45° swivel joint for angled drilling
Clamping Collar: 60mm quick-release
Base Mounting: Combined base (anchor or vacuum)
Precision Tools: Bit centre pointer, spirit level, drilling depth scale

GCR 180 SPECIFICATIONS (0.601.190.100)

Column Length: 767mm
Drill Stroke: 514mm
Weight: 9.5kg
Working Length, Z-Axis: 455mm

GCR 180 (II) SPECIFICATIONS (0.601.190.400)

Drill Stroke: 495mm
Weight: 13.2kg
Working Length, Z-Axis: 475mm
Drill Holder Diameter: 60mm
Drilling Angle: 0-45°
Packaging Dimensions (W x L x H): 400 x 925 x 300mm

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Secure the stand to the work surface using either anchor bolts or vacuum base .
Usage Instructions: Insert the diamond drill into the 60mm quick-release clamping collar. Use the bit centre pointer to align the drill with the desired hole position. Use the spirit level to ensure the stand is perfectly level. Adjust the drilling angle if required using the 45° swivel joint. Use the drilling depth scale to control the drilling depth. Remove the crank to adjust all screws .
Storage Conditions: Store in a dry, secure place.
Cleaning: Clean with soft, dry cloth. Remove debris from moving parts.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Mechanical accessory; no electrical or laser hazards. Physical safety measures required.
Safety Features: Robust aluminium construction; stable base mounting; quick-release clamping for secure tool holding.
Regulatory: Complies with applicable safety standards.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Operational Safety: Ensure the stand is securely mounted to the work surface before attaching the drill. Use the appropriate mounting method (anchor or vacuum) for the surface type. Ensure the diamond drill is correctly and securely clamped before starting work.

Mechanical Safety: Do not exceed the maximum drilling diameter of 180mm. Regularly check the stand for damage or wear. Ensure all locking mechanisms are secure before use.

Maintenance: Clean with a soft, dry cloth. Check for damage to the aluminium column and clamping mechanism. Remove debris from moving parts. Have repairs performed only by authorised service centres.

Bosch GCR 180 Professional Diamond Drill Stand

Bosch GCR 180 Professional Diamond Drill Stand

PRIMARY USES

1. Stable Mounting for Diamond Core Drilling in Concrete and Masonry

2. Versatile Mounting Options for Various Applications

Primary Use: Features a combined base that can be mounted using anchor bolts or a vacuum base, providing flexibility for different surfaces and working conditions .

How it helps: The anchor mounting option provides secure attachment to concrete surfaces for maximum stability. The vacuum mounting option enables quick setup and removal without damaging the work surface. The 45° swivel joint allows drilling at various angles for angled penetrations .

SECONDARY USES

1. Angled Drilling: The 45° swivel joint enables drilling at precise angles for sloping pipe and cable runs.

2. Multi-Position Mounting: Suitable for wall, ceiling, and floor applications with appropriate mounting configuration .

3. Precision Alignment: The built-in bit centre pointer, spirit level, and drilling depth scale enable accurate positioning and controlled drilling depth .

4. Heavy-Duty Construction: Suitable for heating, air conditioning, water, and electrical system installations .

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Diamond drill stand; not a medical device.

Designation: Bosch GCR 180 Professional Diamond Drill Stand

Order Numbers:

0.601.190.100 (GCR 180)

0.601.190.400 (GCR 180 (II))

Country of Origin: China / India (varies by production batch)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Provides stable mounting platform for diamond core drills.

Max Drilling Diameter: 180mm

Material: Durable aluminium with high torsional strength

Swivel: 45° swivel joint for angled drilling

Clamping Collar: 60mm quick-release

Base Mounting: Combined base (anchor or vacuum)

Precision Tools: Bit centre pointer, spirit level, drilling depth scale

GCR 180 SPECIFICATIONS (0.601.190.100)

Column Length: 767mm

Drill Stroke: 514mm

Weight: 9.5kg

Working Length, Z-Axis: 455mm

GCR 180 (II) SPECIFICATIONS (0.601.190.400)

Drill Stroke: 495mm

Weight: 13.2kg

Working Length, Z-Axis: 475mm

Drill Holder Diameter: 60mm

Drilling Angle: 0-45°

Packaging Dimensions (W x L x H): 400 x 925 x 300mm

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Secure the stand to the work surface using either anchor bolts or vacuum base .

Storage Conditions: Store in a dry, secure place.

Cleaning: Clean with soft, dry cloth. Remove debris from moving parts.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Mechanical accessory; no electrical or laser hazards. Physical safety measures required.

Safety Features: Robust aluminium construction; stable base mounting; quick-release clamping for secure tool holding.

Regulatory: Complies with applicable safety standards.

1. SAFETY PRECAUTIONS

Operational Safety: Ensure the stand is securely mounted to the work surface before attaching the drill. Use the appropriate mounting method (anchor or vacuum) for the surface type. Ensure the diamond drill is correctly and securely clamped before starting work.

Mechanical Safety: Do not exceed the maximum drilling diameter of 180mm. Regularly check the stand for damage or wear. Ensure all locking mechanisms are secure before use.

Maintenance: Clean with a soft, dry cloth. Check for damage to the aluminium column and clamping mechanism. Remove debris from moving parts. Have repairs performed only by authorised service centres.

Training requirement: Operators should be familiar with correct mounting procedures and safety protocols.

2. FIRST AID MEASURES

General Injury: Apply appropriate first aid measures for cuts, bruises, or other injuries sustained while using the stand or associated tools.

3. FIRE FIGHTING MEASURES

Flammability: The stand is primarily aluminium, which is not flammable. Packaging may burn if exposed to fire.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving packaging.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers.
