Bosch GDB 180 WE Professional Diamond Drill Amaris Hardware Solutions

Click to enlarge

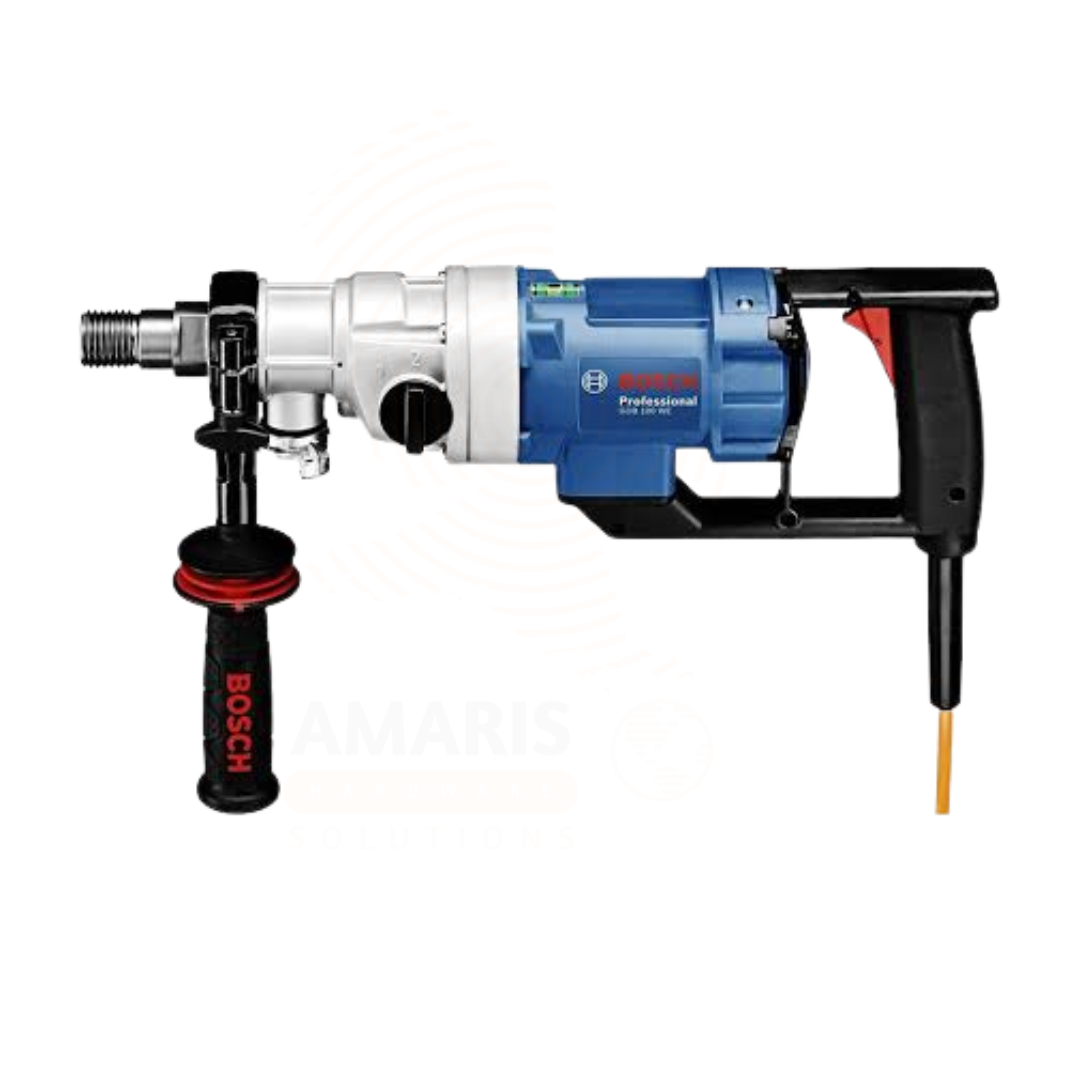

Bosch GDB 180 WE Professional Diamond Drill

WhatsApp Order

The Bosch GDB 180 WE Professional is a 2,000W corded diamond drill with a two-speed gearbox (900/2,800 rpm) designed for core drilling in concrete and reinforced concrete up to 180mm in diameter . Features include 1 1/4″ UNC tool holder, oil-bath lubrication gearbox for extreme durability, wet and dry operation capability, overload clutch, and electronic overload protection . Weight: 5.2kg . Includes dust extraction adapter, ball valve, and carrying case . Compatible with GCR 180 Professional drill stand and Bosch Click & Clean dust extraction system . Suitable for construction professionals, civil engineers, plumbers, and HVAC installers. Order number: 0.601.189.870/0.601.189.800.

Compare

Add to wishlist

Categories: POWER TOOLS, Drills & Drivers Tags: 180mm Core Drill, 2000W Diamond Drill, Bosch GDB 180 WE, Bosch Professional, Civil Engineering Tool, concrete drill, construction tool, Core Drill, Diamond Drill, Dry Drill, HVAC tool, plumbing tool, Reinforced Concrete Drill, Wet Drill

Description

Table of Contents

Bosch GDB 180 WE Professional Diamond Drill

PRIMARY USES

1. Core Drilling in Reinforced Concrete for Construction and Installation

Primary Use: A powerful corded diamond drill (2,000W motor, two-speed gearbox) used for core drilling in concrete, reinforced concrete, and masonry. Essential for construction professionals, civil engineers, plumbers, and HVAC installers requiring large-diameter holes for pipe and cable penetrations through structural elements .

How it helps: For construction and installation professionals, the diamond drill delivers exceptional performance with its incredibly powerful 2,000W motor, facilitating breakthroughs in reinforced concrete of up to 180mm in diameter . The two-speed gearbox (900/2,800 rpm) provides optimal speed control for different drilling conditions and core bit sizes . The robust design and gearbox with oil-bath lubrication ensure extreme durability and a long service life, even under continuous heavy loads . Suitable for both hand-held and stand-mounted operation, the tool offers maximum versatility for various job site conditions .

2. Wet and Dry Operation

Primary Use: Capable of both wet and dry core drilling, enabling use in a wide range of applications and environments.

How it helps: The wet drilling capability with integrated water cooling system ensures efficient drilling with reduced dust and extended core bit life . The dry drilling capability with dust extraction adapter enables cleaner work in environments where water use is restricted . The Click & Clean dust extraction system compatibility provides effective dust control for cleaner, safer workspaces .

Bosch GDB 180 WE Professional Diamond Drill Amaris Hardware Solutions

SECONDARY USES

1. Hand-Held Drilling: Suitable for hand-held operation for smaller diameter holes and less demanding applications .

2. Stand-Mounted Drilling: Compatible with the GCR 180 Professional drill stand for precise, stable drilling of larger diameters .

3. Pipe and Cable Installation: Creates penetrations for pipework, conduits, and cable routing through walls and floors.

4. HVAC Installation: Core drills through structural elements for ventilation and air conditioning ducting.

5. Renovation and Retrofitting: Drills holes in existing structures for new service installations.

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Diamond drill; not a medical device.
Designation: Bosch GDB 180 WE Professional
Order Numbers: 0.601.189.870, 0.601.189.800
Rated Input Power: 2,000W
No-Load Speed: 900 / 2,800 rpm
Tool Holder: 1 1/4" UNC
Voltage: 220-240V AC, 50Hz
Weight: 5.2kg
Drilling Range: 180mm
Country of Origin: Not specified

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Core drilling via diamond core bits.
Motor Type: 2,000W motor
Gearbox: Two-speed with oil-bath lubrication for durability
Overload Protection: Electronic overload protection with signal indication and automatic speed reduction
Overload Clutch: Mechanical contact clutch separately adjusted to 1st and 2nd gear
Sound Power Level: 99 dB(A)
Sound Pressure Level: 88 dB(A)
Vibration Emission Value ah: 4.8 m/s²

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Check the core bit is fitted securely. Core bits attached incorrectly may come loose during operation . Attach the water cooling system or dust extraction system as required .
Usage Instructions: Start drilling in first gear at a low speed until the core bit rotates without vibrating. Then switch to second gear if necessary . Apply uniform pressure. The overload clutch interrupts power transmission if the core bit jams .
Wet Drilling: Attach water connection adapter to the claw coupling. Close water cutoff valve and connect water supply line . A water collection ring is required to collect water escaping from the drill hole .
Dry Drilling: Attach the extraction adapter to the claw coupling. Attach an extraction hose to a wet/dry extractor .
Storage Conditions: Store in a dry, secure place. Clean the drill spindle regularly and apply corrosion inhibitor .
Cleaning: Clean housing with soft, dry cloth. Keep air vents clear.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Power tool; high risk of injury from rotating parts, kickback, and overheating. Eye protection, hearing protection, and heavy-duty gloves required. Use respiratory protection and dust extraction when dry drilling .
Safety Features: Overload clutch, electronic overload protection, soft start, constant electronic, restart protection
Included Accessories: Dust extraction adapter, ball valve, carrying case
Regulatory: Complies with applicable safety standards.
Dust Extraction: Compatible with Bosch Click & Clean dust extraction system

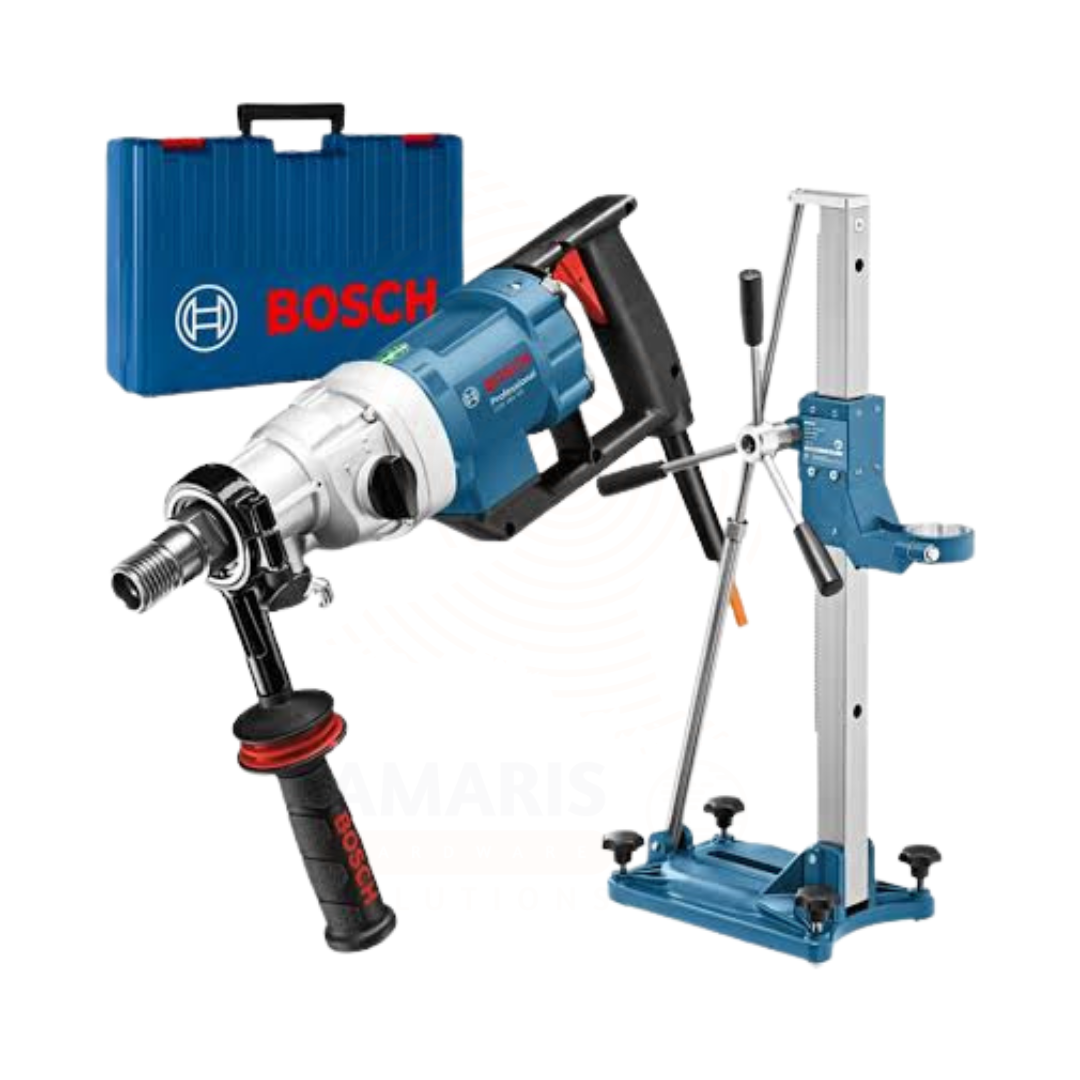

Stand Compatibility: Compatible with GCR 180 Professional drill stand

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear safety goggles, hearing protection, and heavy-duty gloves. Use respiratory protection (at least P2 or N95 mask) when dry drilling . Wear protective gloves when changing core bits as they may become hot during operation .

Electrical Safety: Check power cord for damage before use. Do not operate in wet conditions. Use RCD where required. Pay attention to mains voltage; voltage must match the rating plate .

Dust Hazard: Dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to health. Use a dust extraction system suitable for the material wherever possible. Provide good ventilation. Materials containing asbestos may only be machined by specialists .

Drilling Safety: Seek advice from a structural engineer, architect or construction supervisor regarding planned drill holes before starting work. Do not penetrate reinforcements unless authorised. When drilling holes that penetrate walls or ceilings, always check the area for obstacles. Close off the work site and prevent drill cores from falling .

Kickback Hazard: Maintain a firm grip and proper stance. Be prepared for sudden reactions if the core bit jams. If the core bit jams, switch the power tool off immediately. Dislodge the core bit by turning it to the right and left using a suitable open-ended spanner .

Maintenance: Unplug tool before changing bits or performing maintenance. Allow the tool to cool before storing. If the power supply cord needs to be replaced, this must be done by Bosch or an authorised after-sales service centre .

Training requirement: Operators must be trained on correct usage and safety procedures. Supervisors should ensure all safety protocols are followed.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.

Skin Contact (dust): Wash skin with soap and water. If irritation develops, seek medical attention.

Inhalation of Dust: Move a person to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: The tool is not flammable, but plastic casing may burn if exposed to fire. Dust accumulation at the workplace can ignite.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers; water may be used for general fires but not for electrical fires where live equipment is involved.

Bosch GDB 180 WE Professional Diamond Drill

Bosch GDB 180 WE Professional Diamond Drill

PRIMARY USES

1. Core Drilling in Reinforced Concrete for Construction and Installation

2. Wet and Dry Operation

Primary Use: Capable of both wet and dry core drilling, enabling use in a wide range of applications and environments.

SECONDARY USES

1. Hand-Held Drilling: Suitable for hand-held operation for smaller diameter holes and less demanding applications .

2. Stand-Mounted Drilling: Compatible with the GCR 180 Professional drill stand for precise, stable drilling of larger diameters .

3. Pipe and Cable Installation: Creates penetrations for pipework, conduits, and cable routing through walls and floors.

4. HVAC Installation: Core drills through structural elements for ventilation and air conditioning ducting.

5. Renovation and Retrofitting: Drills holes in existing structures for new service installations.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Diamond drill; not a medical device.

Designation: Bosch GDB 180 WE Professional

Order Numbers: 0.601.189.870, 0.601.189.800

Rated Input Power: 2,000W

No-Load Speed: 900 / 2,800 rpm

Tool Holder: 1 1/4" UNC

Voltage: 220-240V AC, 50Hz

Weight: 5.2kg

Drilling Range: 180mm

Country of Origin: Not specified

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Core drilling via diamond core bits.

Motor Type: 2,000W motor

Gearbox: Two-speed with oil-bath lubrication for durability

Overload Protection: Electronic overload protection with signal indication and automatic speed reduction

Overload Clutch: Mechanical contact clutch separately adjusted to 1st and 2nd gear

Sound Power Level: 99 dB(A)

Sound Pressure Level: 88 dB(A)

Vibration Emission Value ah: 4.8 m/s²

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Check the core bit is fitted securely. Core bits attached incorrectly may come loose during operation . Attach the water cooling system or dust extraction system as required .

Usage Instructions: Start drilling in first gear at a low speed until the core bit rotates without vibrating. Then switch to second gear if necessary . Apply uniform pressure. The overload clutch interrupts power transmission if the core bit jams .

Wet Drilling: Attach water connection adapter to the claw coupling. Close water cutoff valve and connect water supply line . A water collection ring is required to collect water escaping from the drill hole .

Dry Drilling: Attach the extraction adapter to the claw coupling. Attach an extraction hose to a wet/dry extractor .

Storage Conditions: Store in a dry, secure place. Clean the drill spindle regularly and apply corrosion inhibitor .

Cleaning: Clean housing with soft, dry cloth. Keep air vents clear.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Power tool; high risk of injury from rotating parts, kickback, and overheating. Eye protection, hearing protection, and heavy-duty gloves required. Use respiratory protection and dust extraction when dry drilling .

Safety Features: Overload clutch, electronic overload protection, soft start, constant electronic, restart protection

Included Accessories: Dust extraction adapter, ball valve, carrying case

Regulatory: Complies with applicable safety standards.

Dust Extraction: Compatible with Bosch Click & Clean dust extraction system

Stand Compatibility: Compatible with GCR 180 Professional drill stand

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear safety goggles, hearing protection, and heavy-duty gloves. Use respiratory protection (at least P2 or N95 mask) when dry drilling . Wear protective gloves when changing core bits as they may become hot during operation .

Electrical Safety: Check power cord for damage before use. Do not operate in wet conditions. Use RCD where required. Pay attention to mains voltage; voltage must match the rating plate .

Dust Hazard: Dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to health. Use a dust extraction system suitable for the material wherever possible. Provide good ventilation. Materials containing asbestos may only be machined by specialists .

Kickback Hazard: Maintain a firm grip and proper stance. Be prepared for sudden reactions if the core bit jams. If the core bit jams, switch the power tool off immediately. Dislodge the core bit by turning it to the right and left using a suitable open-ended spanner .

Maintenance: Unplug tool before changing bits or performing maintenance. Allow the tool to cool before storing. If the power supply cord needs to be replaced, this must be done by Bosch or an authorised after-sales service centre .

Training requirement: Operators must be trained on correct usage and safety procedures. Supervisors should ensure all safety protocols are followed.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.

Skin Contact (dust): Wash skin with soap and water. If irritation develops, seek medical attention.

Inhalation of Dust: Move a person to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: The tool is not flammable, but plastic casing may burn if exposed to fire. Dust accumulation at the workplace can ignite.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers; water may be used for general fires but not for electrical fires where live equipment is involved.
