Bosch GSB 24-2 Professional Impact Drill Amaris Hardware Solutions

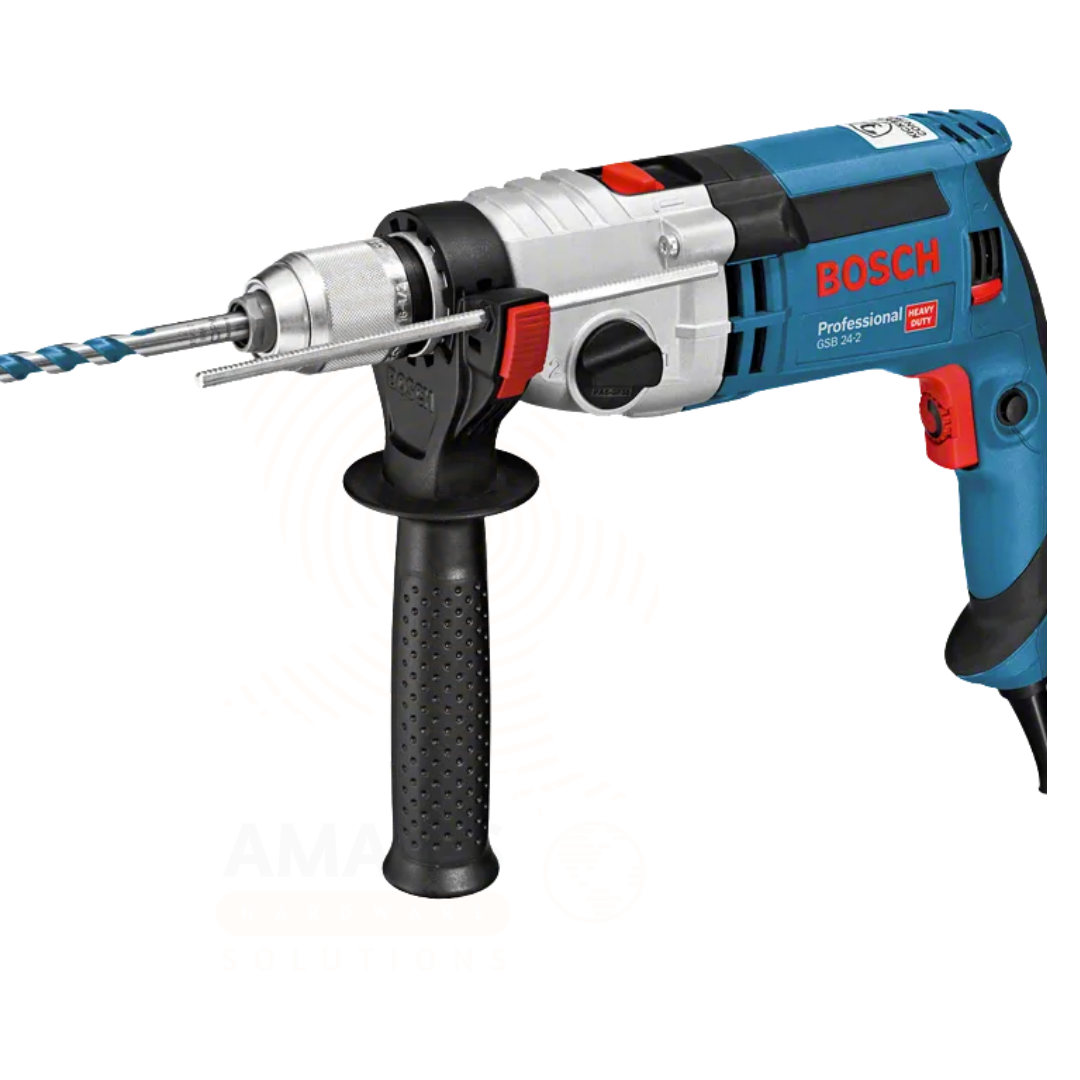

Bosch GSB 24-2 Professional Impact Drill

WhatsApp Order

The Bosch GSB 24-2 Professional is a powerful 1,100W corded impact drill with a two-speed gearbox (0-900/0-3,000 rpm) designed for the toughest jobs . It delivers a maximum torque of 40 Nm and features KickBack Control for increased user protection . The sturdy metal gear housing and robust construction ensure a long tool lifetime, while the 13mm keyless chuck with Autolock enables quick one-handed tool changes . Drilling capacities: 40mm in wood, 16mm in steel, and 24mm in masonry . Includes 13mm keyless chuck, auxiliary handle, depth stop 210mm, and L-Case . Suitable for construction professionals and heavy-duty applications. Order number: 0.601.19C.801 .

Compare

Add to wishlist

Categories: POWER TOOLS, Drills & Drivers Tags: 060119C801, 1100W Drill, 13mm Chuck Drill, Bosch GSB 24-2, Bosch Professional, corded drill, heavy-duty drill, impact drill, KickBack Control, masonry drill, Metal Drill, professional drill, Two-Speed Drill, Wood Drill

Description

Table of Contents

Bosch GSB 24-2 Professional Impact Drill

PRIMARY USES

1. Heavy-Duty Drilling and Screwdriving for Professional Applications

Primary Use: A powerful corded impact drill (1,100W motor, two-speed gearbox) used for drilling in masonry, stone, wood, and metal, as well as for screwdriving . Essential for construction professionals, electricians, and heavy-duty industrial applications requiring the highest power and torque .

How it helps: For professionals working on the toughest jobs, the GSB 24-2 delivers maximum performance with its 1,100W high-performance motor and high torque, making it ideal for most heavy-duty applications . The KickBack Control feature increases user protection, automatically shutting off the tool in case of sudden rotation to prevent wrist injury . The sturdy metal gear housing ensures a long tool lifetime, even under continuous heavy loads .

2. Two-Speed Gearbox for Versatile Applications

Primary Use: The two-speed gearbox provides dual speed capability (0-900 rpm in first gear and 0-3,000 rpm in second gear), allowing users to switch between high torque for large diameter drilling and high speed for smaller diameter drilling .

How it helps: The first gear delivers high torque (9.6 Nm rated, 40 Nm max) for drilling large holes, using hole saws, and mixing applications . The second gear provides high speed (3,000 rpm) for faster drilling in lighter materials . The single-sleeve 13mm keyless chuck with Autolock allows quick tool changing using only one hand, crucial for maintaining efficiency on busy job sites.

Bosch GSB 24-2 Professional Impact Drill Amaris Hardware Solutions

SECONDARY USES

1. Wood Drilling: Drills holes in wood up to 40mm diameter (1st gear) and 25mm diameter (2nd gear) .

2. Metal Drilling: Drills into steel up to 16mm diameter (1st gear) and 8mm diameter (2nd gear) .

3. Masonry Drilling: Drills into stone and masonry up to 24mm diameter (1st gear) and 16mm diameter (2nd gear) .

4. Screwdriving: Drives screws with forward and reverse operation.

5. Mixing and Stirring: Can be used for mixing applications with appropriate accessories .

6. Drill Stand Mounting: The 43mm spindle collar (European standard) allows the drill to be mounted in drill stands for precise bench drilling .

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Corded impact drill; not a medical device.
Designation: Bosch GSB 24-2 Professional
Order Numbers: 0.601.19C.801 (Standard with case) , 0.601.19C.800 , 0.601.19C.802
Rated Input Power: 1,100W
Power Output: 630W
No-Load Speed (1st Gear): 0 – 900 rpm
No-Load Speed (2nd Gear): 3,000 rpm
Rated Speed: 580 / 1,900 rpm
Impact Rate: 0 – 15,300 / 51,000 bpm (1st/2nd gear)
Rated Torque: 9.6 / 3.2 Nm (1st/2nd gear)
Max Torque: 40.0 Nm
Chuck Capacity: 1.5 – 13 mm
Chuck Type: 13mm keyless chuck with Autolock
Spindle Thread: 1/2"-20 UNF
Spindle Collar Diameter: 43mm
Weight: 2.9 kg
Country of Origin: Hungary or China depending on production batch

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Rotational drilling with impact function via two-speed gearbox.
Motor Type: 1,100W high-performance motor for maximum torque and power
Gears: 2-speed mechanical gearbox
Rotation: Forward and reverse operation with rotating brush plate for equal torque in both directions
Speed Control: Stepless speed control via On/Off switch pressure; mechanical speed preselection
Gear Selection: Mechanical selector with two positions (1st and 2nd speed)
Impact Mechanism: Impact stop for rotation-only drilling
Drilling Capacity (Wood): 40 / 25 mm (1st/2nd gear)
Drilling Capacity (Steel): 16 / 8 mm (1st/2nd gear)
Drilling Capacity (Masonry/Stone): 24 / 16 mm (1st/2nd gear)
Sound Pressure Level: 95 dB(A)
Sound Power Level: 106 dB(A)
Vibration (Drilling Metal): 2.5 m/s²
Vibration (Impact Drilling Concrete): 14.6 m/s²

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Select appropriate drill bit (HSS for metal, carbide-tipped for masonry). Insert into the 13mm keyless chuck and tighten securely using one hand .
Usage Instructions: Select the appropriate gear using the gear selector. Adjust speed using the variable speed trigger. Use the impact stop for rotation-only drilling in wood and metal. Use the forward/reverse switch to change rotation direction .
Autolock: Single-sleeve keyless chuck with Autolock for quick one-handed tool changes
Safety Features: KickBack Control for increased user protection; mechanical overload clutch for high working security

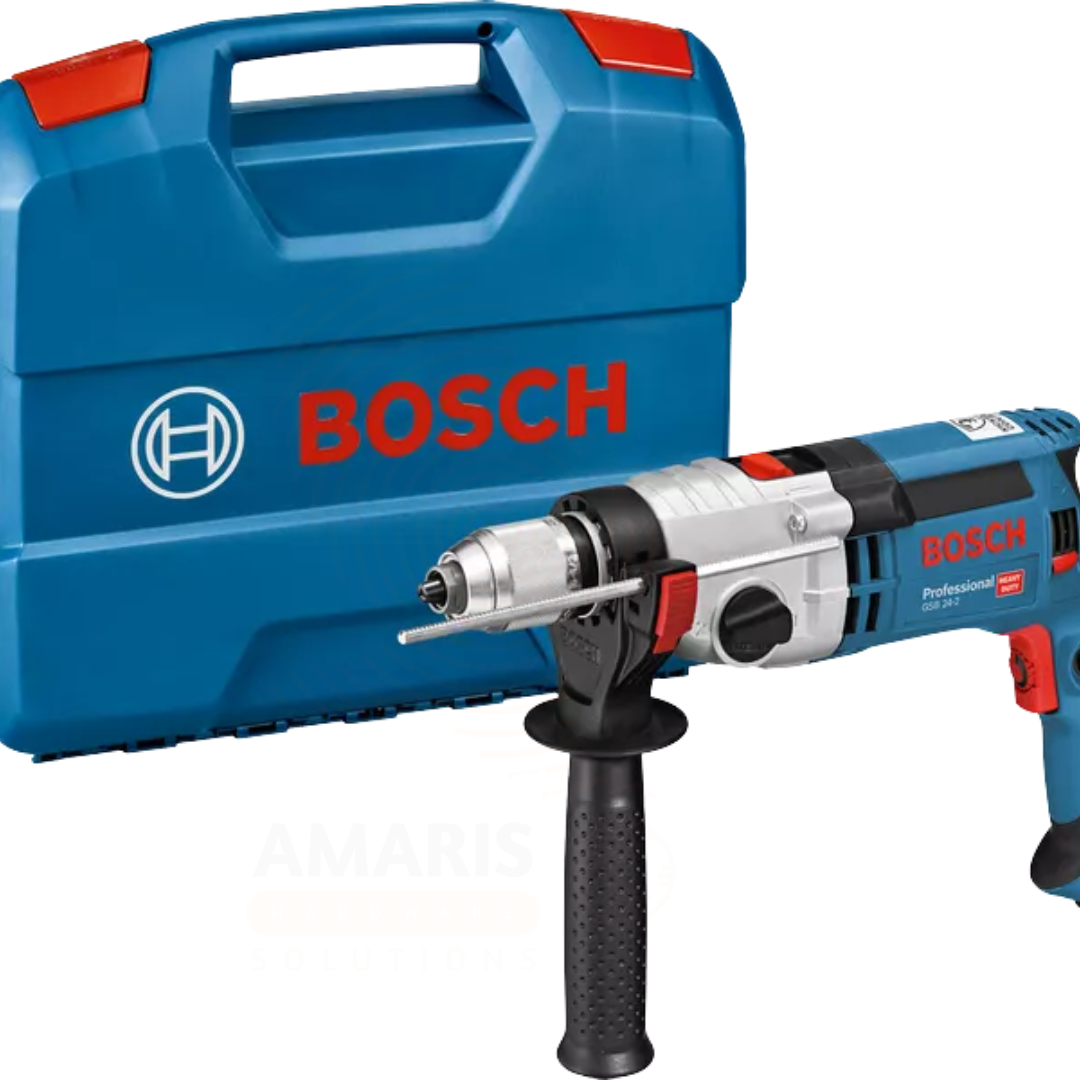

Included Accessories: 13mm keyless chuck, auxiliary handle (Softgrip) , depth stop 210mm, L-Case
Ergonomics: Rubberised auxiliary handle with Softgrip for secure holding and comfortable operation
Storage Conditions: Store in a dry, secure place.
Cleaning: Clean housing with soft, dry cloth. Keep air vents clear.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Power tool; high risk of injury from rotating parts, impact mechanism, and kickback. Eye protection, hearing protection, and heavy-duty gloves recommended.
Safety Features: KickBack Control (shuts off in case of sudden rotation) ; Mechanical overload clutch Anti-rotation ; Autolock ; Metal gear housing for durability
Electrical Safety: Check power cord for damage before use. Do not operate in wet conditions. Hold power tool by insulated gripping surfaces when drilling where hidden wiring may be contacted.
Regulatory: Complies with applicable safety standards.
Accessories: Compatible with GDE 16 Cyl Professional dust attachment and drill stands (43mm spindle collar)

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in the supplied L-Case in a dry, secure place .
Inspection: Regularly inspect chuck and power cord for damage. Check that the chuck is securely tightened.
Usage: Always unplug before changing bits or performing maintenance. Allow the tool to cool before storing.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear safety goggles and hearing protection when drilling. Wear protective gloves when changing drill bits. Use respiratory protection when drilling materials that generate dust.

Electrical Safety: Check power cord and extension cord for damage before use. Do not operate in wet conditions or near water. Use RCD where required.

Kickback Hazard: Use the auxiliary handle at all times. Maintain a firm grip and proper stance. Ensure the drill bit is securely tightened in the chuck before use. Do not apply excessive pressure. The KickBack Control feature provides additional user protection .

Dust Hazard: Drilling generates dust. Use appropriate respiratory protection and ensure adequate ventilation. Prevent dust accumulation at the workplace as dust can ignite.

Maintenance: Unplug tool before changing bits or performing maintenance. Allow the tool to cool before storing.

Training requirement: Operators should be familiar with correct usage, bit selection, and safety procedures.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.

Skin Contact (dust): Wash skin with soap and water. If irritation develops, seek medical attention.

Inhalation of Dust: Move a person to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: The tool is not flammable, but plastic casing may burn if exposed to fire. Dust accumulation can ignite.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers; water may be used for general fires but not for electrical fires where live equipment is involved.
