Bosch GSB 162-2 RE Professional Impact Drill Amaris HardwareSolutions

Click to enlarge

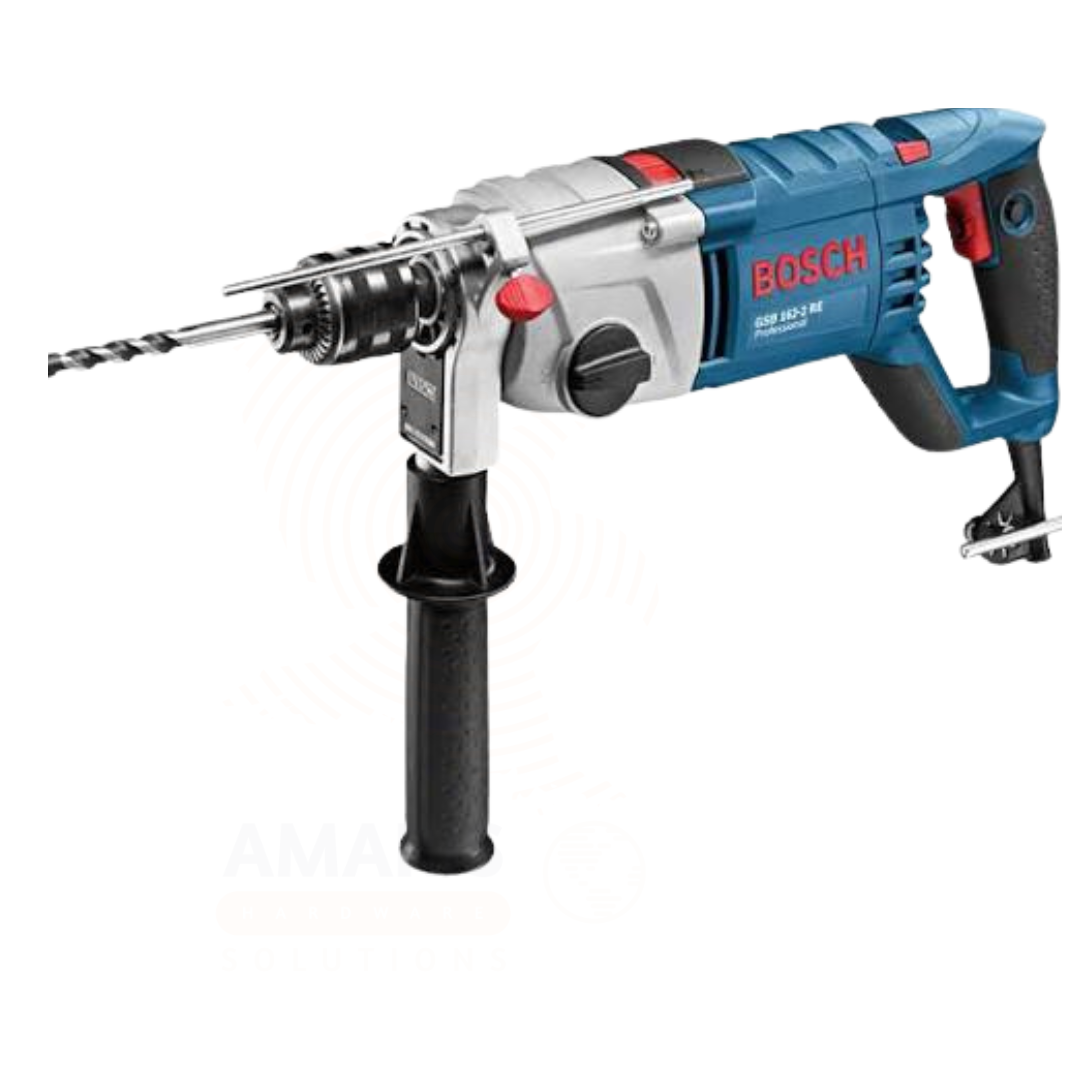

Bosch GSB 162-2 RE Professional Impact Drill

WhatsApp Order

The Bosch GSB 162-2 RE Professional is an extreme-duty 1,500W corded impact drill with a two-speed gearbox (0-750/1,800 rpm) designed for the most demanding applications including diamond dry-drilling . It delivers a maximum torque of 50 Nm , rated torque of 17.0/5.0 Nm (1st/2nd gear), and features a 16mm keyed chuck for secure bit holding . The rotation control clutch provides increased user protection, while the robust construction ensures a long tool lifetime. Drilling capacities: 82mm in wood, 50mm in steel, and up to 162mm with diamond core cutters. Weight: 4.8kg. Includes 16mm keyed chuck, auxiliary handle, depth stop, and carrying case . Suitable for construction professionals, civil engineers, and heavy-duty industrial applications. Order number: 0.601.18B.000.

Compare

Add to wishlist

Categories: POWER TOOLS, Drills & Drivers Tags: 060118B000, 1500W Drill, 16mm Chuck Drill, Bosch GSB 162-2 RE, Bosch Professional, concrete drill, corded drill, Diamond Core Drill, heavy-duty drill, impact drill, masonry drill, Metal Drill, professional drill, Rotation Control Clutch, Two-Speed Drill, Wood Drill

Description

Table of Contents

Bosch GSB 162-2 RE Professional Impact Drill

PRIMARY USES

1. Extreme Heavy-Duty Drilling and Diamond Core Cutting

Primary Use: An extremely powerful corded impact drill (1,500W motor, two-speed gearbox) designed for the toughest applications including diamond dry-drilling. Essential for construction professionals, civil engineers, and heavy-duty industrial applications requiring the highest power and torque for large diameter drilling .

How it helps: For professionals working on the most demanding jobs, the GSB 162-2 RE delivers unparalleled performance with its 1,500W high-performance motor and high overload capacity, making it ideal for intense and heavy-duty applications . The speed is specifically optimised to enable fast drilling progress up to 162mm in diameter even when using diamond core cutters in non-impact mode, making it perfect for large-scale construction and civil engineering projects .

2. Diamond Dry Drilling Capability

Primary Use: Specifically designed for diamond dry-drilling applications without impact function, achieving hole diameters up to 162mm.

How it helps: The optimised speed and high torque enable efficient diamond core drilling in reinforced concrete, stone, and masonry. The rotation control clutch ensures an increased level of user protection even when working in the toughest materials, automatically interrupting drive power if the tool insert becomes jammed .

Bosch GSB 162-2 RE Professional Impact Drill Amaris HardwareSolutions

SECONDARY USES

1. Wood Drilling: Drills holes in wood up to 82mm diameter .

2. Metal Drilling: Drills into steel up to 50mm diameter .

3. Masonry Drilling: Drills into masonry up to 162mm diameter (with core cutters) and 20mm (with solid bits) .

4. Screwdriving: Drives screws with forward and reverse operation.

5. Concrete Drilling: Drills into concrete with maximum torque and power.

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Corded impact drill; not a medical device.
Designation: Bosch GSB 162-2 RE Professional
Order Number: 0.601.18B.000
Rated Input Power: 1,500 W
Power Output: 840 W
No-Load Speed (1st Gear): 0 – 750 rpm
No-Load Speed (2nd Gear): 1,800 rpm
Rated Speed: 555 / 1,300 rpm
Impact Rate: 0 – 12,750 / 30,600 bpm (1st/2nd gear)
Rated Torque: 17.0 / 5.0 Nm (1st/2nd gear)
Max Torque: 50 Nm
Chuck Capacity: 3 – 16 mm
Chuck Type: Keyed chuck (16mm)
Spindle Thread: 5/8"-16 UNF
Weight: 4.8 kg
Voltage: 220-240V AC, 50Hz
Country of Origin: Not specified

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Rotational drilling with impact function via two-speed gearbox.
Motor Type: 1,500W high-performance motor with high overload capacity
Gears: 2-speed mechanical gearbox
Rotation: Forward and reverse operation
Speed Control: Variable speed control via On/Off switch pressure; thumbwheel for speed preselection
Gear Selection: Mechanical selector with two positions (1st and 2nd speed)
Impact Mechanism: Impact stop for rotation-only drilling
Application: Diamond dry-drilling, large diameter core drilling, heavy-duty drilling
Sound Pressure Level: 99 dB(A)
Sound Power Level: 110 dB(A)
Vibration (Drilling Metal): 7.0 m/s²
Vibration (Impact Drilling Concrete): 15.5 m/s²
Uncertainty K: 3 dB

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Select appropriate drill bit (HSS for metal, carbide-tipped for masonry, diamond core for large holes). Insert into the 16mm keyed chuck and tighten securely using the chuck key.
Usage Instructions: Select the appropriate gear using the gear selector. Adjust speed using the variable speed trigger. Use the rotation control clutch for safe operation. Use the forward/reverse switch to change rotation direction.
Safety Clutch: Rotation control clutch (Anti-Rotation) interrupts drive power if the tool insert becomes jammed, increasing user protection
Included Accessories: 16mm keyed chuck, auxiliary handle, depth stop (spare part number 2 600 460 045), carrying case
Ergonomics: Robust design with auxiliary handle for two-handed operation

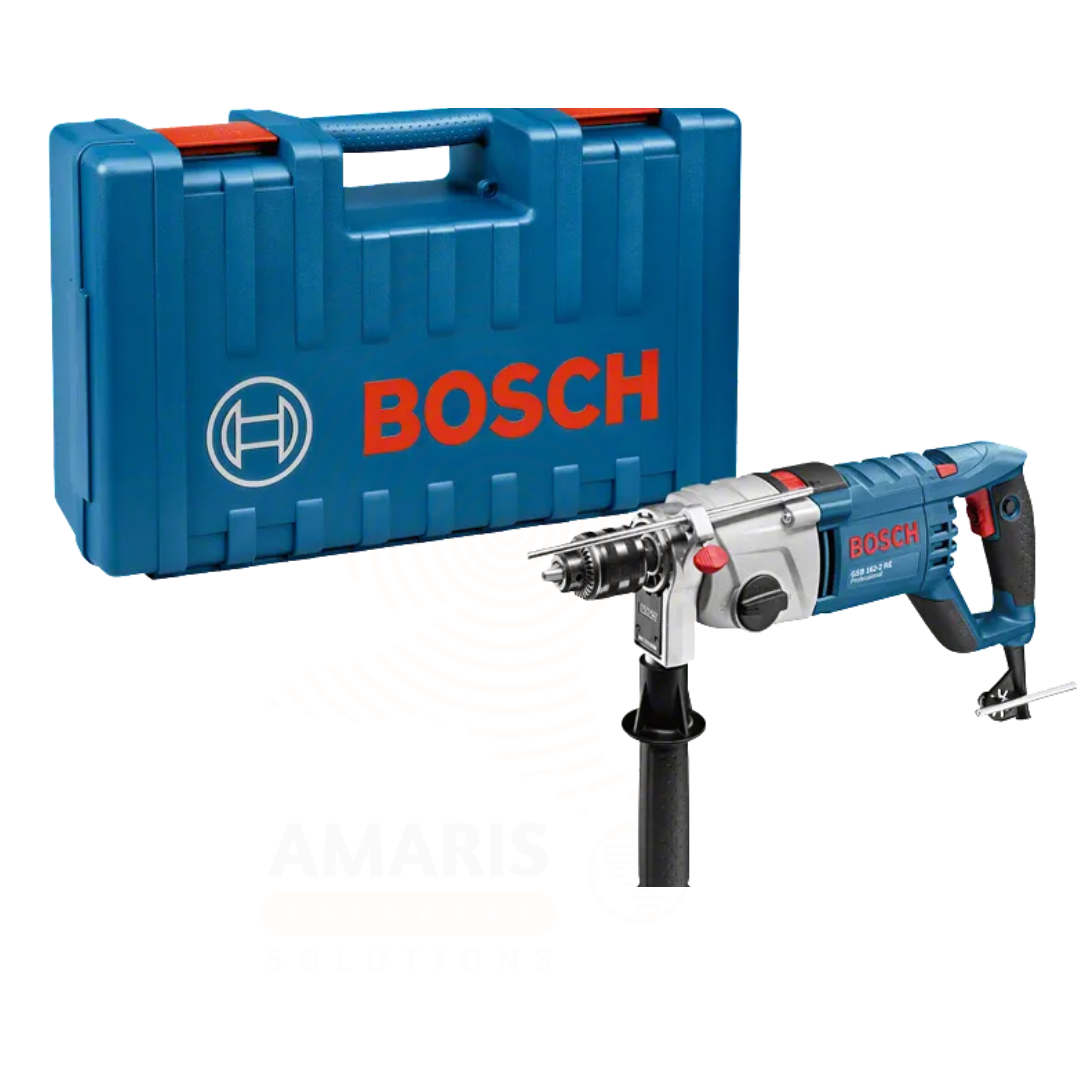

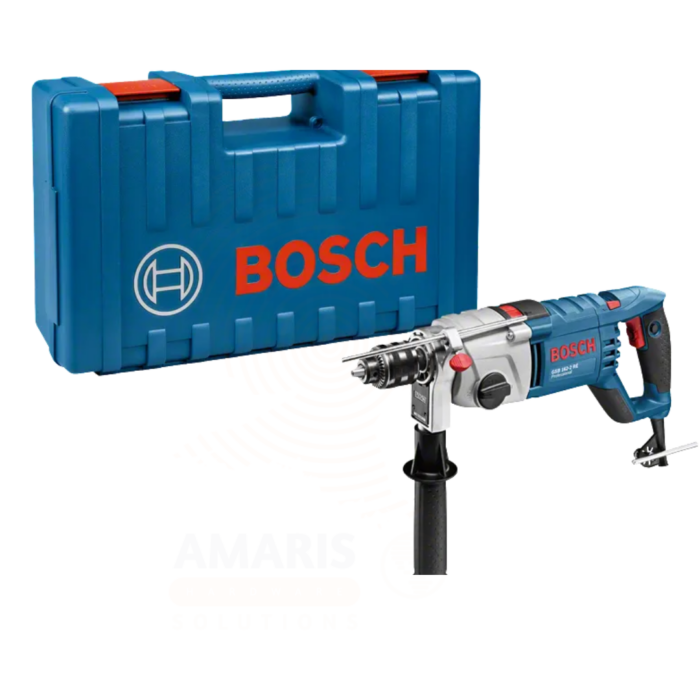

Storage Conditions: Store in a dry, secure place in the supplied carrying case .
Cleaning: Clean housing with soft, dry cloth. Keep air vents clear.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Power tool; high risk of injury from rotating parts, impact mechanism, and kickback. Eye protection, hearing protection, and heavy-duty gloves required.
Safety Features: Rotation control clutch ; Restart protection prevents uncontrolled starting after power interruption ; Auxiliary handle for secure grip
Electrical Safety: Check power cord for damage before use. Do not operate in wet conditions. Hold power tool by insulated gripping surfaces when drilling where hidden wiring may be contacted.
Regulatory: Complies with applicable safety standards.
Noise Protection: Hearing protection mandatory (sound power level 110 dB(A))

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear safety goggles and hearing protection when drilling. Wear protective gloves when changing drill bits. Use respiratory protection when drilling materials that generate dust.

Electrical Safety: Check power cord and extension cord for damage before use. Do not operate in wet conditions or near water. Use RCD where required.

Kickback Hazard: Use the auxiliary handle at all times. Maintain a firm grip and proper stance. Ensure the drill bit is securely tightened in the chuck before use. The rotation control clutch provides additional user protection .

Dust Hazard: Drilling generates dust. Use appropriate respiratory protection and ensure adequate ventilation. Prevent dust accumulation at the workplace as dust can ignite.

Maintenance: Unplug tool before changing bits or performing maintenance. Allow the tool to cool before storing.

Training requirement: Operators should be familiar with correct usage, bit selection, and safety procedures.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.

Skin Contact (dust): Wash skin with soap and water. If irritation develops, seek medical attention.

Inhalation of Dust: Move a person to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: The tool is not flammable, but plastic casing may burn if exposed to fire. Dust accumulation can ignite.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers; water may be used for general fires but not for electrical fires where live equipment is involved.

Bosch GSB 162-2 RE Professional Impact Drill

Bosch GSB 162-2 RE Professional Impact Drill

PRIMARY USES

1. Extreme Heavy-Duty Drilling and Diamond Core Cutting

2. Diamond Dry Drilling Capability

Primary Use: Specifically designed for diamond dry-drilling applications without impact function, achieving hole diameters up to 162mm.

SECONDARY USES

1. Wood Drilling: Drills holes in wood up to 82mm diameter .

2. Metal Drilling: Drills into steel up to 50mm diameter .

3. Masonry Drilling: Drills into masonry up to 162mm diameter (with core cutters) and 20mm (with solid bits) .

4. Screwdriving: Drives screws with forward and reverse operation.

5. Concrete Drilling: Drills into concrete with maximum torque and power.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Corded impact drill; not a medical device.

Designation: Bosch GSB 162-2 RE Professional

Order Number: 0.601.18B.000

Rated Input Power: 1,500 W

Power Output: 840 W

No-Load Speed (1st Gear): 0 – 750 rpm

No-Load Speed (2nd Gear): 1,800 rpm

Rated Speed: 555 / 1,300 rpm

Impact Rate: 0 – 12,750 / 30,600 bpm (1st/2nd gear)

Rated Torque: 17.0 / 5.0 Nm (1st/2nd gear)

Max Torque: 50 Nm

Chuck Capacity: 3 – 16 mm

Chuck Type: Keyed chuck (16mm)

Spindle Thread: 5/8"-16 UNF

Weight: 4.8 kg

Voltage: 220-240V AC, 50Hz

Country of Origin: Not specified

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Rotational drilling with impact function via two-speed gearbox.

Motor Type: 1,500W high-performance motor with high overload capacity

Gears: 2-speed mechanical gearbox

Rotation: Forward and reverse operation

Speed Control: Variable speed control via On/Off switch pressure; thumbwheel for speed preselection

Gear Selection: Mechanical selector with two positions (1st and 2nd speed)

Impact Mechanism: Impact stop for rotation-only drilling

Application: Diamond dry-drilling, large diameter core drilling, heavy-duty drilling

Sound Pressure Level: 99 dB(A)

Sound Power Level: 110 dB(A)

Vibration (Drilling Metal): 7.0 m/s²

Vibration (Impact Drilling Concrete): 15.5 m/s²

Uncertainty K: 3 dB

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Select appropriate drill bit (HSS for metal, carbide-tipped for masonry, diamond core for large holes). Insert into the 16mm keyed chuck and tighten securely using the chuck key.

Usage Instructions: Select the appropriate gear using the gear selector. Adjust speed using the variable speed trigger. Use the rotation control clutch for safe operation. Use the forward/reverse switch to change rotation direction.

Safety Clutch: Rotation control clutch (Anti-Rotation) interrupts drive power if the tool insert becomes jammed, increasing user protection

Included Accessories: 16mm keyed chuck, auxiliary handle, depth stop (spare part number 2 600 460 045), carrying case

Ergonomics: Robust design with auxiliary handle for two-handed operation

Storage Conditions: Store in a dry, secure place in the supplied carrying case .

Cleaning: Clean housing with soft, dry cloth. Keep air vents clear.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Power tool; high risk of injury from rotating parts, impact mechanism, and kickback. Eye protection, hearing protection, and heavy-duty gloves required.

Safety Features: Rotation control clutch ; Restart protection prevents uncontrolled starting after power interruption ; Auxiliary handle for secure grip

Electrical Safety: Check power cord for damage before use. Do not operate in wet conditions. Hold power tool by insulated gripping surfaces when drilling where hidden wiring may be contacted.

Regulatory: Complies with applicable safety standards.

Noise Protection: Hearing protection mandatory (sound power level 110 dB(A))

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear safety goggles and hearing protection when drilling. Wear protective gloves when changing drill bits. Use respiratory protection when drilling materials that generate dust.

Electrical Safety: Check power cord and extension cord for damage before use. Do not operate in wet conditions or near water. Use RCD where required.

Kickback Hazard: Use the auxiliary handle at all times. Maintain a firm grip and proper stance. Ensure the drill bit is securely tightened in the chuck before use. The rotation control clutch provides additional user protection .

Dust Hazard: Drilling generates dust. Use appropriate respiratory protection and ensure adequate ventilation. Prevent dust accumulation at the workplace as dust can ignite.

Maintenance: Unplug tool before changing bits or performing maintenance. Allow the tool to cool before storing.

Training requirement: Operators should be familiar with correct usage, bit selection, and safety procedures.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.

Skin Contact (dust): Wash skin with soap and water. If irritation develops, seek medical attention.

Inhalation of Dust: Move a person to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: The tool is not flammable, but plastic casing may burn if exposed to fire. Dust accumulation can ignite.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving tools.

Fire Response: In event of fire, evacuate the area and call emergency services. Use appropriate extinguishers; water may be used for general fires but not for electrical fires where live equipment is involved.
