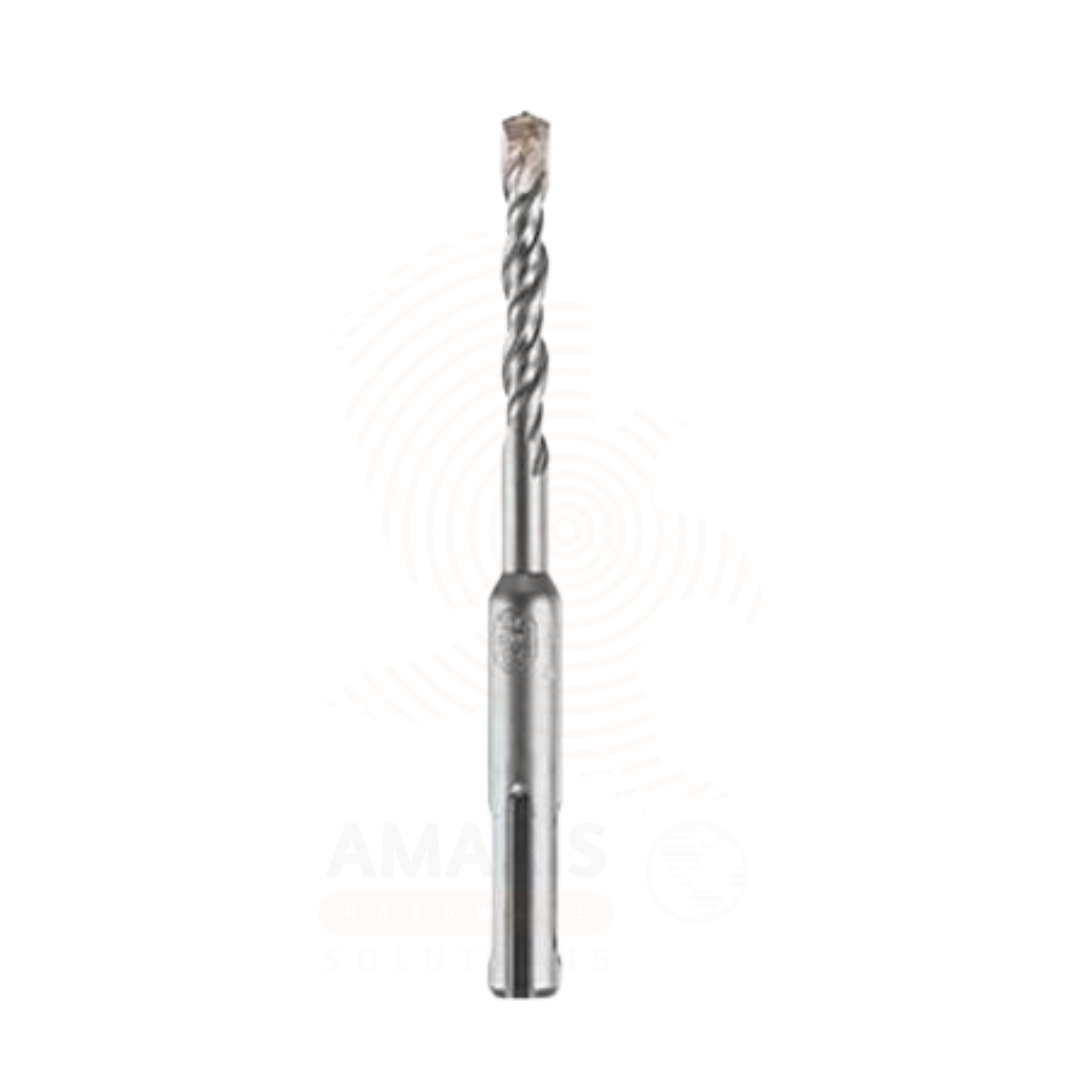

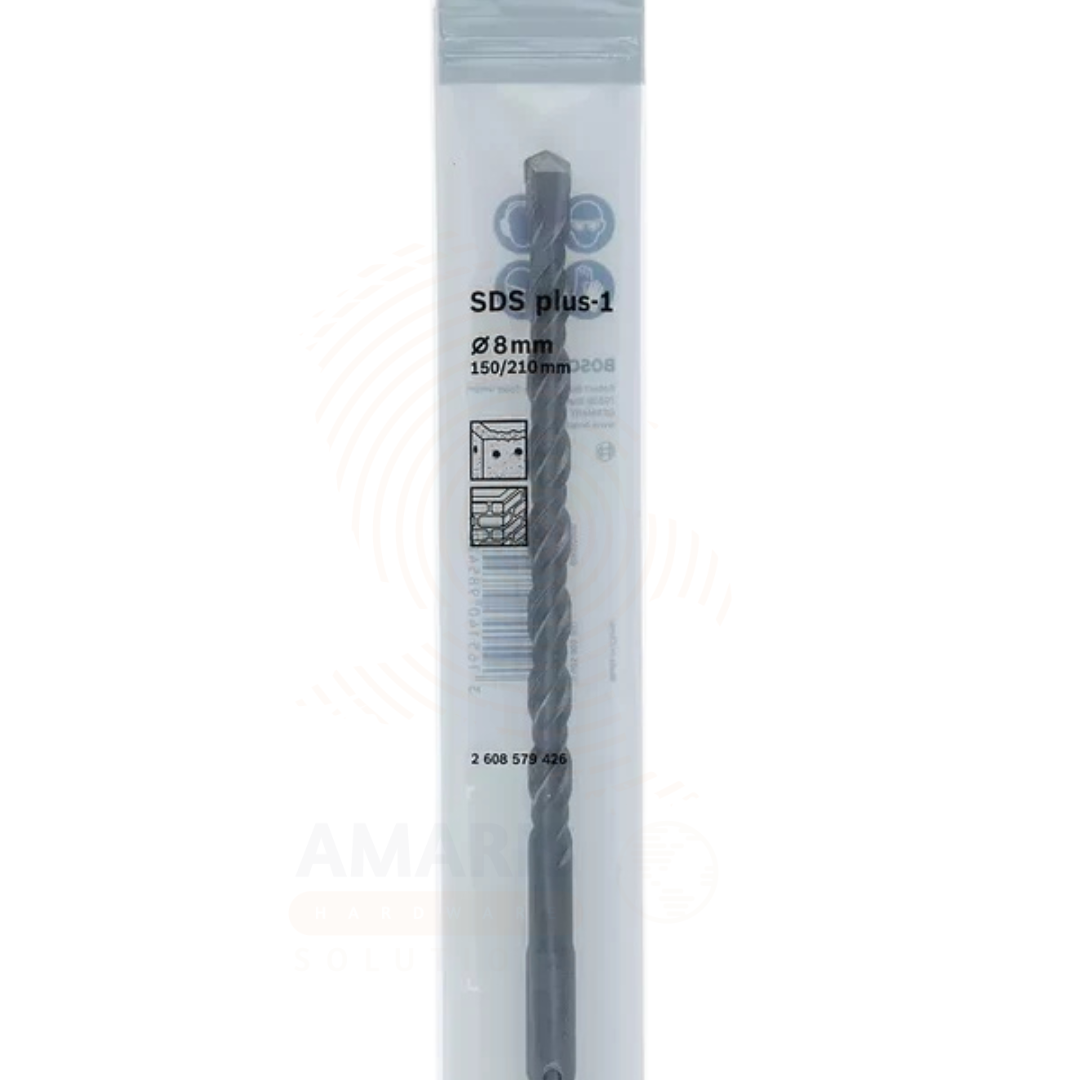

Bosch SDS-plus Drill Bit

1. BASIC IDENTIFICATION ATTRIBUTES

• Device Type: SDS-plus hammer drill bit; not a medical device.

• Designation: Bosch SDS-plus Drill Bit / SDS-plus 5X Drill Bit

• Shank Type: SDS-plus

• Application: Masonry, concrete, reinforced concrete

SDS-PLUS STANDARD (5mm Diameter)

SDS-PLUS 5X (Advanced Performance)

• Diameter: 5.00mm

• Working Length: 100mm

• Total Length: 160mm

• Pack Quantity: 10 Pcs

• Order Number: 2 608 833 890

SDS-PLUS 5X SETS

2. TECHNICAL & PERFORMANCE PROPERTIES

• Primary Action: Hammer drilling via SDS-plus shank and carbide tip.

• Tip Design (Standard): Tungsten carbide tip for efficient drilling.

• Tip Design (5X): 4-cutter head prevents jamming and breakage .

• Flute Design (5X): 4-flute design with large dust removal channels for fast dust removal and reduced wear .

• Centring Tip: Guides drilling from the start to prevent wandering .

• Certification: Bearing the test mark of the PGM Masonry Drill Bit Association Board, guaranteeing compliance with tight tolerances, exact drilling and the firm hold of fixings .

3. PHYSICAL & OPERATIONAL PROPERTIES

• Preparation: Insert the SDS-plus shank into the SDS-plus tool holder of the rotary hammer until it locks. Ensure the bit is securely seated.

• Usage Instructions: Position the centring tip at the drilling point. Use hammer drilling mode for concrete and masonry. Allow the bit to do the work—apply moderate pressure and let the hammer action and flute design remove dust efficiently.

• Storage Conditions: Store in a dry place to prevent corrosion.

• Cleaning: Clean the bit after use with a soft cloth. Remove debris from flutes.

4. SAFETY & COMPLIANCE ATTRIBUTES

• Safety Classification: Drill bit accessory; no electrical or laser hazards. Normal safety precautions apply.

• Safety Features: Centring tip prevents wandering and reduces kickback risk; 4-cutter design prevents jamming .

• Regulatory: Tested by PGM Masonry Drill Bit Association Board .
