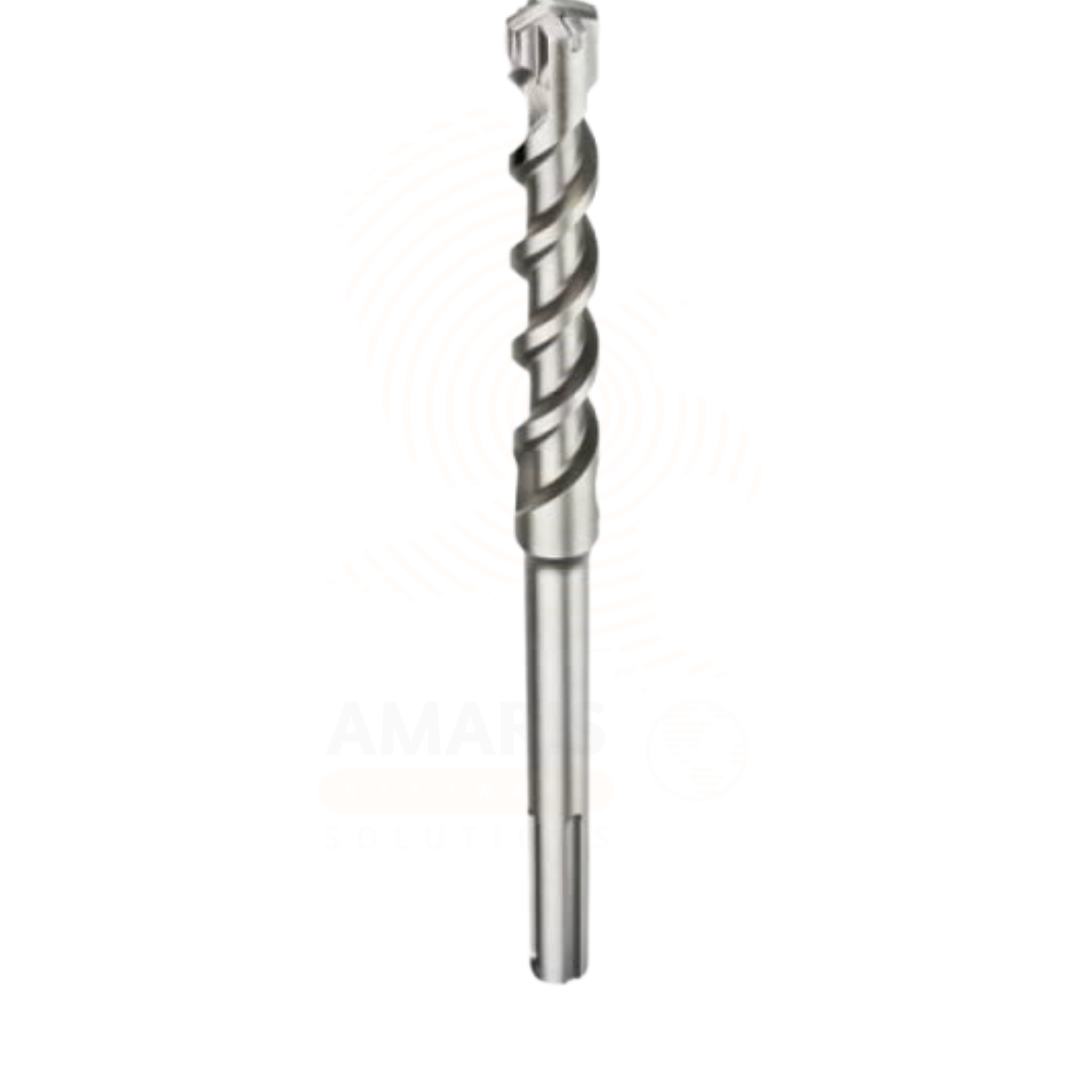

Bosch SDS-max Drill Bit

WhatsApp Order

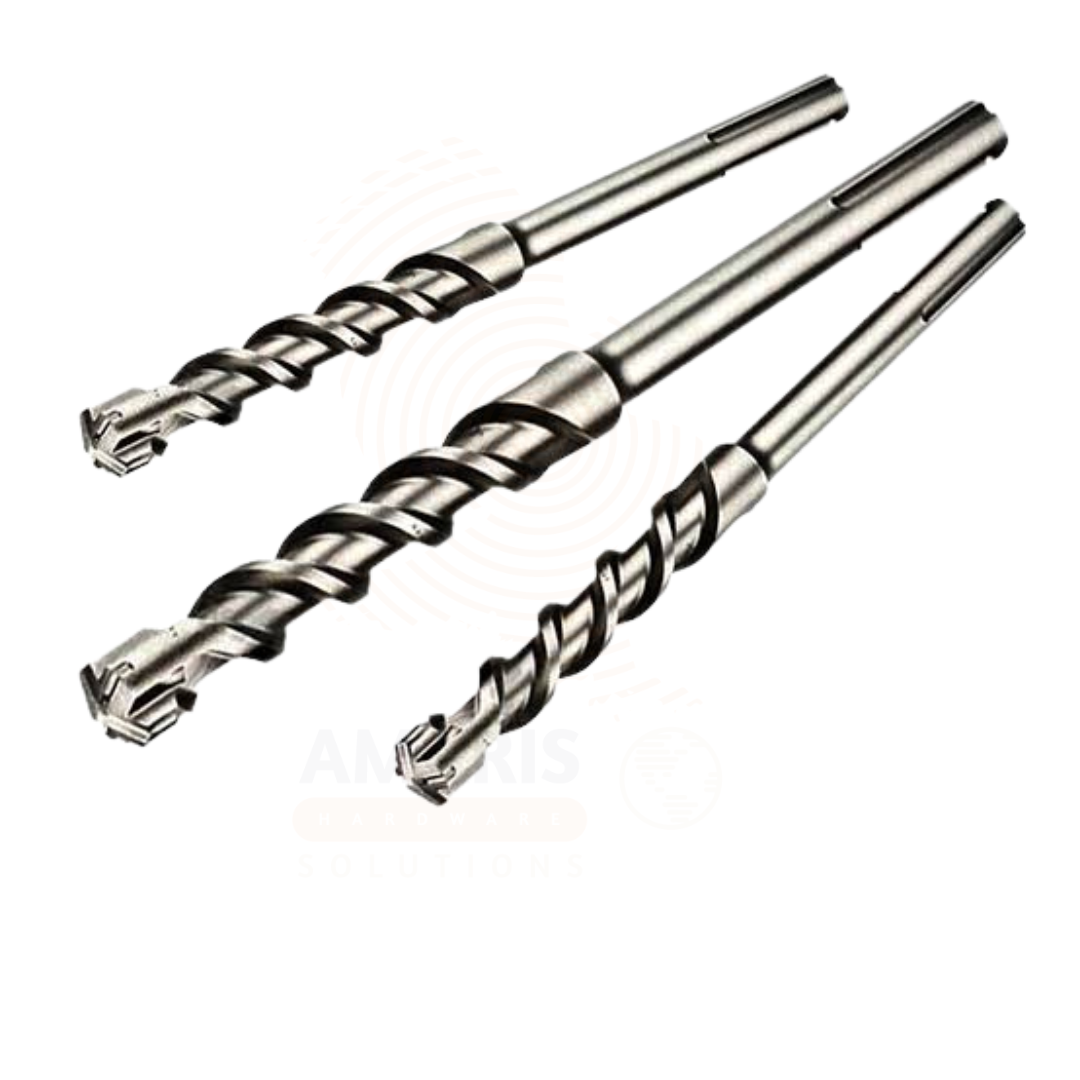

The Bosch SDS-max Drill Bit is available in two variants: Standard SDS max-7 and SDS max-4. The SDS max-7 features solid carbide S-cutters and inclined side cutters for very fast drilling at high speeds, with a vibration-optimised flute design and PGM-certified quality. The SDS max-4 features a 4-cutter design for prolonged use with no jamming when drilling rebar, and a 2-flute U-shape providing good dust removal and extended life. Both variants feature SDS-max shanks for compatibility with all SDS-max rotary hammers and are suitable for drilling in masonry, concrete, and reinforced concrete. Available in various diameters (12-45mm) and lengths (320-1340mm total length). Suitable for construction professionals, civil engineers, and heavy-duty installation technicians.

Compare

Add to wishlist

Categories: POWER TOOLS, Drills & Drivers Tags: Bosch Professional, Bosch SDS-max Drill Bit, Concrete Drill Bit, construction tool, Drilling Accessory, Heavy Duty Drilling, masonry drill bit, Rebar Drill Bit, Rotary Hammer Bit, SDS Max Drill Bit, SDS-max 4 Hammer Drill Bit, SDS-max 7 Drill Bit, SDS-max Bit

Description

Table of Contents

Bosch SDS-max Drill Bit

PRIMARY USES

1. Heavy-Duty Drilling in Reinforced Concrete and Masonry

Primary Use: A range of SDS-max hammer drill bits (available in Standard “7” and advanced “Max-4” variants) used for fast, efficient drilling in concrete, reinforced concrete, and masonry. Essential for construction professionals, civil engineers, and heavy-duty installation technicians requiring reliable drilling for anchor bolts, rebar penetrations, and large-diameter service installations.

How it helps: For construction and heavy-duty professionals, the SDS-max drill bits deliver fast and efficient drilling in reinforced concrete. The 4-cutter design on the Max-4 variant prevents jamming and breakage when drilling rebar, providing optimal results. The SDS max-7 variant is ideal for use at the highest drilling speeds, featuring solid carbide S-cutters and inclined side cutters for very fast drilling. The vibration-optimised flute design offers excellent power transmission and increased speed, while the wear mark ensures accurate drill hole diameter.

2. Compatibility with SDS-max Rotary Hammers

Primary Use: Compatible with all rotary hammers featuring SDS-max tool holders.

How it helps: The SDS-max shank ensures secure and quick bit changes without tools. The bit is intended for use on masonry, concrete, and reinforced concrete, making it suitable for a wide range of heavy-duty installation and construction applications.

SECONDARY USES

1. Reinforced Concrete Drilling: Drills through concrete containing rebar for anchor bolt and structural fixing applications.

2. Large Diameter Drilling: Suitable for large diameter holes for pipe and cable penetrations in structural elements.

3. Masonry Drilling: Drills through brick, block, and stone for heavy-duty fixing applications.

4. Anchor Installation: Creates precise holes for chemical and mechanical anchors in concrete.

About brand

**Bosch** is a leading German brand founded in **1886**, renowned for its high-quality, innovative, and reliable engineering solutions. In the hardware industry, Bosch is best known for its durable power tools, measuring equipment, and accessories, trusted by professionals and DIY users worldwide. With a strong focus on performance, precision, and innovation, Bosch continues to set the standard for quality in construction, manufacturing, and home improvement.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: SDS-max hammer drill bit; not a medical device.
Designation: Bosch SDS max-7 Drill Bit / SDS max-4 Hammer Drill Bit
Shank Type: SDS-max
Application: Masonry, concrete, reinforced concrete

SDS MAX-7 SPECIFICATIONS

Key Features: Solid carbide S-cutter, inclined side cutters, vibration-optimised flute design, wear mark for accurate hole diameter
Cutting Edges: 2 cutting edges
Certification: PGM-certified quality

Available Diameters and Lengths:

Diameter	Working Length	Total Length	Order Number
16mm	200mm	340mm	2 608 586 755
18mm	200mm	340mm	2 608 586 762
20mm	200mm	320mm	2 608 586 769
22mm	200mm	320mm	2 608 586 774
25mm	200mm	320mm	2 608 586 781
28mm	200mm	320mm	2 608 586 788
32mm	200mm	320mm	2 608 586 795
35mm	400mm	520mm	2 608 586 797
38mm	200mm	520mm	2 608 586 800
40mm	200mm	520mm	2 608 586 802
45mm	200mm	520mm	2 608 586 806
52mm	200mm	520mm	2 608 586 807

SDS MAX-4 SPECIFICATIONS

Key Features: 4-cutter design prevents jamming when drilling rebar, 2-flute U-shape for good dust removal, highly durable carbide resists wear
Compatibility: Compatible with all rotary hammers with SDS-max holders

Available Diameters and Lengths:

Diameter	Working Length	Total Length	Order Number
12mm	200mm	340mm	2 608 706 774
14mm	200mm	340mm	2 608 706 776
16mm	200mm	340mm	2 608 706 778
18mm	200mm	340mm	2 608 706 780
20mm	200mm	320mm	2 608 706 783
22mm	200mm	320mm	2 608 706 786
25mm	200mm	320mm	2 608 706 791
28mm	200mm	320mm	2 608 706 795
32mm	200mm	320mm	2 608 706 800
40mm	400mm	520mm	2 608 706 806

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Hammer drilling via SDS-max shank and carbide tip design.
Tip Design (SDS max-7): Solid carbide S-cutter and inclined side cutters for fast drilling
Tip Design (SDS max-4): 4-cutter design prevents jamming and breakage
Flute Design (SDS max-7): Vibration-optimised for excellent power transmission
Flute Design (SDS max-4): 2-flute U-shape for good dust removal
Wear Mark (SDS max-7): For accurate drill hole diameter

3. PHYSICAL & OPERATIONAL PROPERTIES

Preparation: Insert the SDS-max shank into the SDS-max tool holder of the rotary hammer until it locks. Ensure the bit is securely seated.
Usage Instructions: Position the bit at the drilling point. Use hammer drilling mode for concrete and masonry. Allow the bit to do the work—apply moderate pressure and let the hammer action and flute design remove dust efficiently.
Storage Conditions: Store in a dry place to prevent corrosion.
Cleaning: Clean the bit after use with a soft cloth. Remove debris from flutes.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Drill bit accessory; no electrical or laser hazards. Normal safety precautions apply.
Safety Features: 4-cutter design prevents jamming and reduces kickback risk; centring tip guides drilling
Certification: PGM-certified quality

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Operational Safety: Always wear safety goggles when drilling. Secure the workpiece firmly. Ensure the bit is correctly inserted into the SDS-max tool holder. Do not operate the rotary hammer without the auxiliary handle fitted.

Dust Hazard: Drilling in concrete and masonry generates silica dust. Use appropriate respiratory protection (at least P2 or N95 mask) and dust extraction where possible.

Tool Safety: Ensure the bit is securely locked in the SDS-max tool holder before use. Check the bit for damage before each use. Do not use damaged or worn bits.

Maintenance: Clean the bit after use. Remove debris from flutes. Store in a dry place to prevent corrosion.

Training requirement: No specialised training required. Basic instruction on correct usage and safety procedures is recommended.

2. FIRST AID MEASURES

Eye Injury (debris): Do not rub. Rinse immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.
