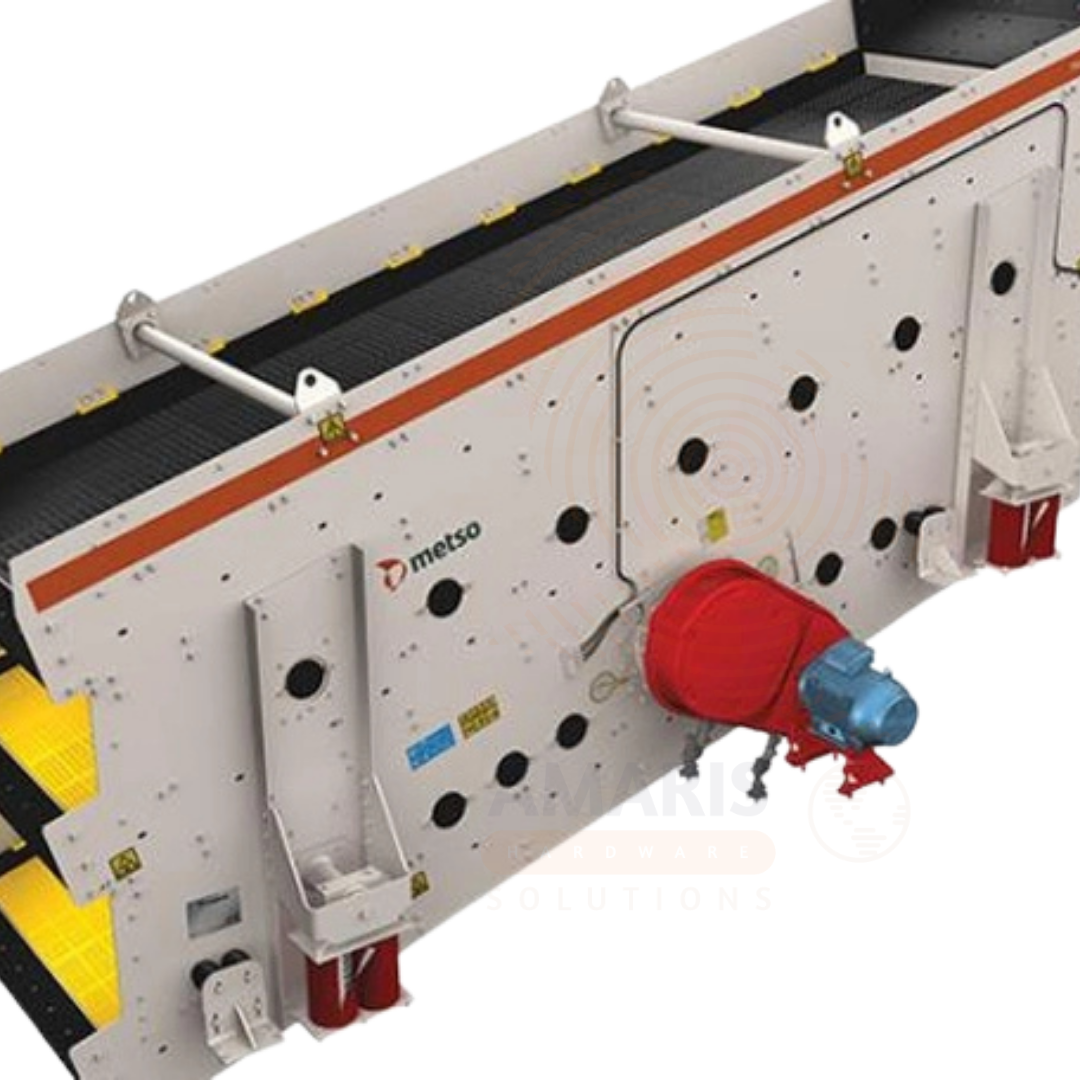

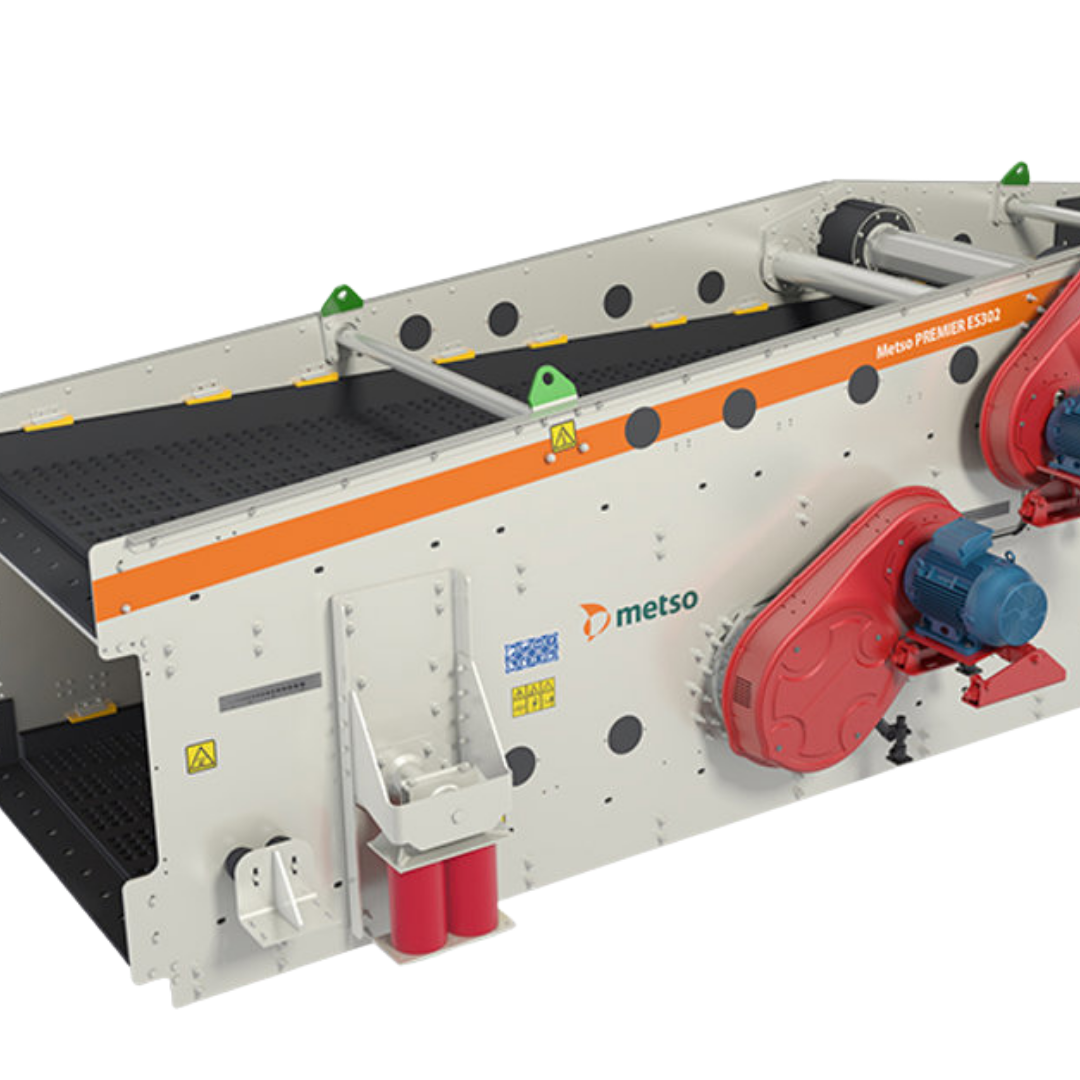

Metso Vibrating Screen

WhatsApp Order

Metso vibrating screens feature advanced elliptical and variable elliptical motion technology for high-capacity, high-accuracy screening in mining, quarrying, and aggregates applications. Key series include ELL Series™ inclined screens (up to 20% higher throughput) , FS Series™ horizontal screens (up to 25% better performance) , TSE Series™ compact horizontal screens for space-constrained installations , and UFS Series™ high-frequency wet screens for fine separation from 0.075 to 1mm . Screens are available in 2- and 3-deck configurations with adjustable installation angles and fully configurable options. Metso supports both current and legacy brands with OEM parts, ensuring guaranteed fit and function .

Compare

Add to wishlist

Description

Table of Contents

Metso Vibrating Screen

PRIMARY USES

1. High-Throughput Classification and Separation in Mining and Aggregates

Primary Use: A range of heavy-duty vibrating screens (available in inclined and horizontal models) used for accurate classification, separation, and dewatering of bulk materials in mining, quarrying, and aggregates processing. Essential for operations requiring precise product sizing, increased throughput, and efficient material handling.

How it helps: For process engineers and plant operators, Metso vibrating screens deliver high-capacity and high-accuracy screening performance. The latest ELL Series™ inclined screens utilise variable elliptical motion technology to achieve up to 20% higher throughput within the same footprint compared to conventional circular motion screens . The FS Series™ horizontal screens feature a 1:3 aggressive elliptical ratio, enabling up to 25% better performance than standard horizontal screens when processing sticky or clay materials . Advanced MV vibrating modules with proven modular components enable short replacement times and minimise unplanned downtime .

2. Wet and Dry Screening Applications

Primary Use: Available in configurations suitable for both wet and dry screening applications across various industries.

How it helps: The UFS Series™ high-frequency wet screens are designed for separation from 0.075 to 1 mm, offering an alternative to hydrocyclones with greater separation efficiency . FS Series screens can be equipped for wet or dry screening, making them versatile for different process requirements . The compact modular design with up to 10 individual screen decks provides double the screening area relative to other fine-screening technologies .

SECONDARY USES

1. Closed-Circuit Crushing: Works effectively with Metso crushers (including Nordberg® HP Series™ cone crushers) in closed circuits to maximise overall plant throughput and control .

2. Portable and Stationary Installations: TSE Series™ compact horizontal screens are designed for integration into tight spaces in both stationary and portable applications .

3. Legacy Equipment Support: Metso provides OEM replacement screens and spare parts for several heritage brands including Nordberg, Svedala, Hewitt-Robins, SECO, Allis-Chalmers, and Tyler .

4. Fine Wet Separation: UFS screens are ideal for fine wet separation in grinding circuits and minerals processing applications when high separation efficiency is required .

About brand

**Mizztech** is a leading supplier of high-quality heavy equipment spare parts for the mining, construction, quarrying, and earthmoving industries. The brand offers durable and reliable replacement components, including undercarriage parts, wear parts, filters, rollers, and other machinery spares designed to maximize equipment performance, reduce downtime, and extend service life. Trusted for quality and value, Mizztech products are built to meet the demands of tough industrial applications.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Vibrating screen; not a medical device.
Brand: Metso
Crusher Types: Inclined screens (ELL Series), horizontal screens (FS, TSE, ES Series), high-frequency wet screens (UFS Series)
Applications: Mining, quarrying, aggregates, mineral processing, gravel pits, cement

2. KEY SERIES SPECIFICATIONS

Series	Motion Type	Key Feature	Applications
ELL Series™	Variable elliptical	Up to 20% higher throughput, 2-3 deck configurations	Secondary/tertiary aggregates
FS Series™	Elliptical (1:3 ratio)	Up to 25% better performance, 2-3 deck, 6x16 to 8x20ft sizes	Portable/stationary, wet/dry
TSE Series™	Horizontal	Compact design, 2-3 deck, 6x16 to 8x20ft sizes	Space-constrained installations
UFS Series™	High-frequency wet	0.075-1mm separation, 10-deck modular design	Fine wet separation
ES Series™	Elliptical (2-shaft)	Up to 6G acceleration, robust deck design	Difficult materials, wet screening

3. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Vibration-based material classification via elliptical or circular motion.
Variable Elliptical Motion (ELL Series): High-speed motion at feed end drives throughput; slower motion at discharge end improves separation .
Elliptical Motion (FS Series): 1:3 ratio with high acceleration, generating faster stratification for efficient fines passing .
Motor Power: TSE Series: 30-55 kW / 40-75 hp ; FS Series: varies by model.
Deck Configurations: Available in 2- and 3-deck configurations .
Adjustable Installation Angle: ELL Series: 18° to 22° ; FS Series: 30° to 60° .
Vibration Amplitude: Adjustable by adding or removing unbalanced weights .
Digital Monitoring: ScreenCheck® diagnostic tool for real-time performance visibility and planned maintenance scheduling .

4. MATERIAL SPECIFICATIONS

Frame Construction: Side plates huck-bolted without welding (FS Series) for increased endurance and crack resistance .
Cross Beams: Reinforced designs with replaceable cleats and individual cross beams for easy change-outs .
Screening Media: Compatible with Trellex® screening media, including modular rubber/polyurethane (RU/PU) and tension media .
Wear Protection: Trellex modular wear protection for feed box, discharge spout, and cardan shaft .

5. PHYSICAL & OPERATIONAL PROPERTIES

Installation: One-to-one replacement options for legacy machines, no modifications to steelwork or chutes required .
Maintenance: MV vibrating module with proven modular components for short replacement times .
Safety: EN1009-compliant design with optimised deck spacing for safe and ergonomic technician access; coil spring covers and safety covers for belts .
Lubrication: MV vibrators with easy-to-access lubrication points, dust-proof design .
Noise Reduction: Gearless vibrator design significantly reduces noise levels .

6. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial screening equipment; standard industrial safety measures apply.
Safety Features: EN1009-compliant design, coil spring covers, safety covers for belts, optimized deck spacing for ergonomic access .
Compliance: CE certified; meets relevant industry standards.
OEM Parts: Original drawings and specifications ensure guaranteed fit and function .

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, and steel-toed boots when operating or maintaining vibrating screens.

Lockout/Tagout: Always isolate and lock out the screen from its power source before beginning any maintenance, inspection, or cleaning work.

Mechanical Safety: Avoid contact with moving parts during operation. Coil spring covers and safety belt covers provide protection against contusions.

Access: Use the optimised deck spacing for safe and ergonomic technician access during maintenance interventions.

Training requirement: Operators and maintenance personnel must be properly trained on the specific screen model's safe operating and maintenance procedures.

2. FIRST AID MEASURES

Eye Exposure: If dust or debris enters the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Cut Injury: Apply direct pressure to stop bleeding. Clean wound with clean water. Cover with sterile dressing. Seek medical attention if bleeding is profuse or the wound is deep.
