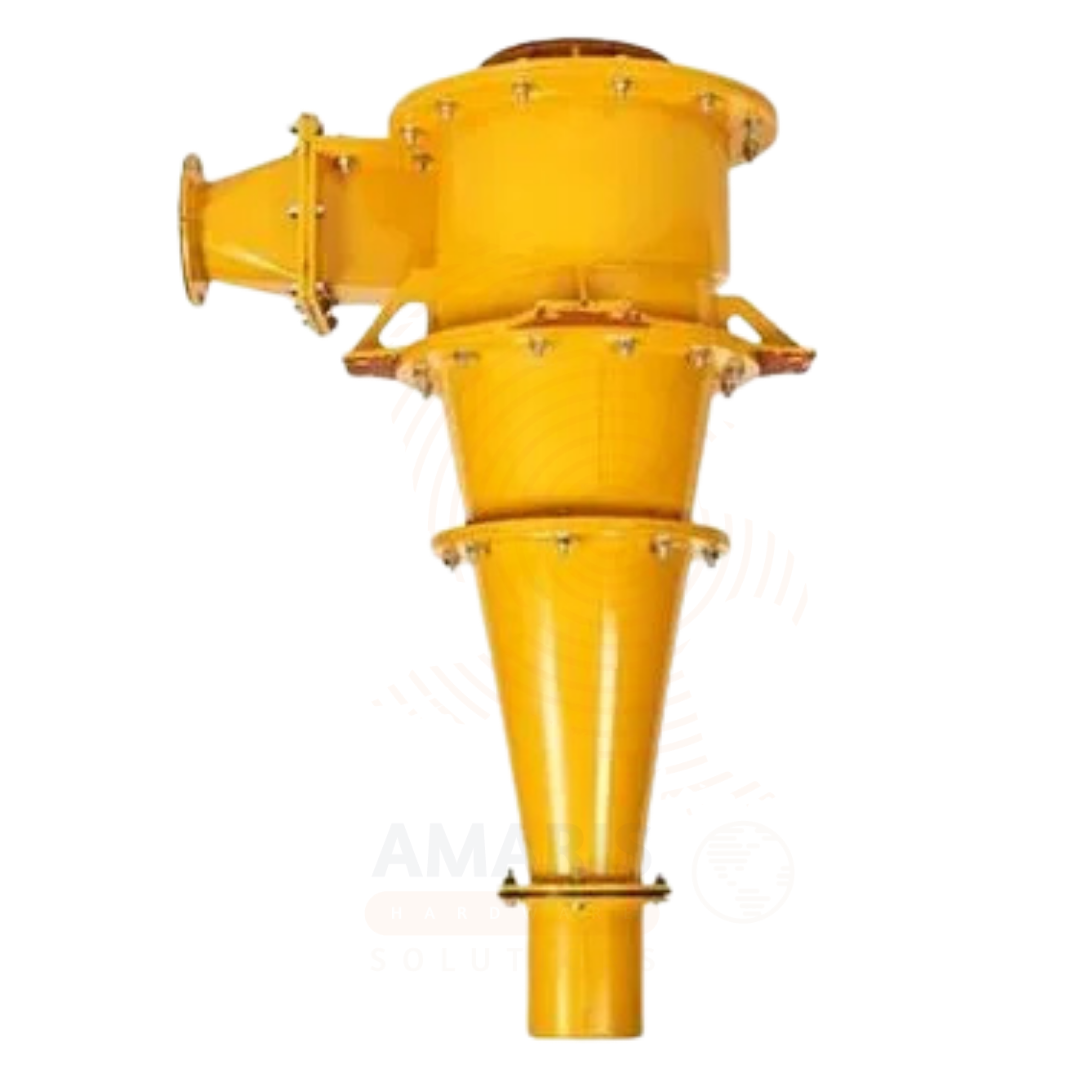

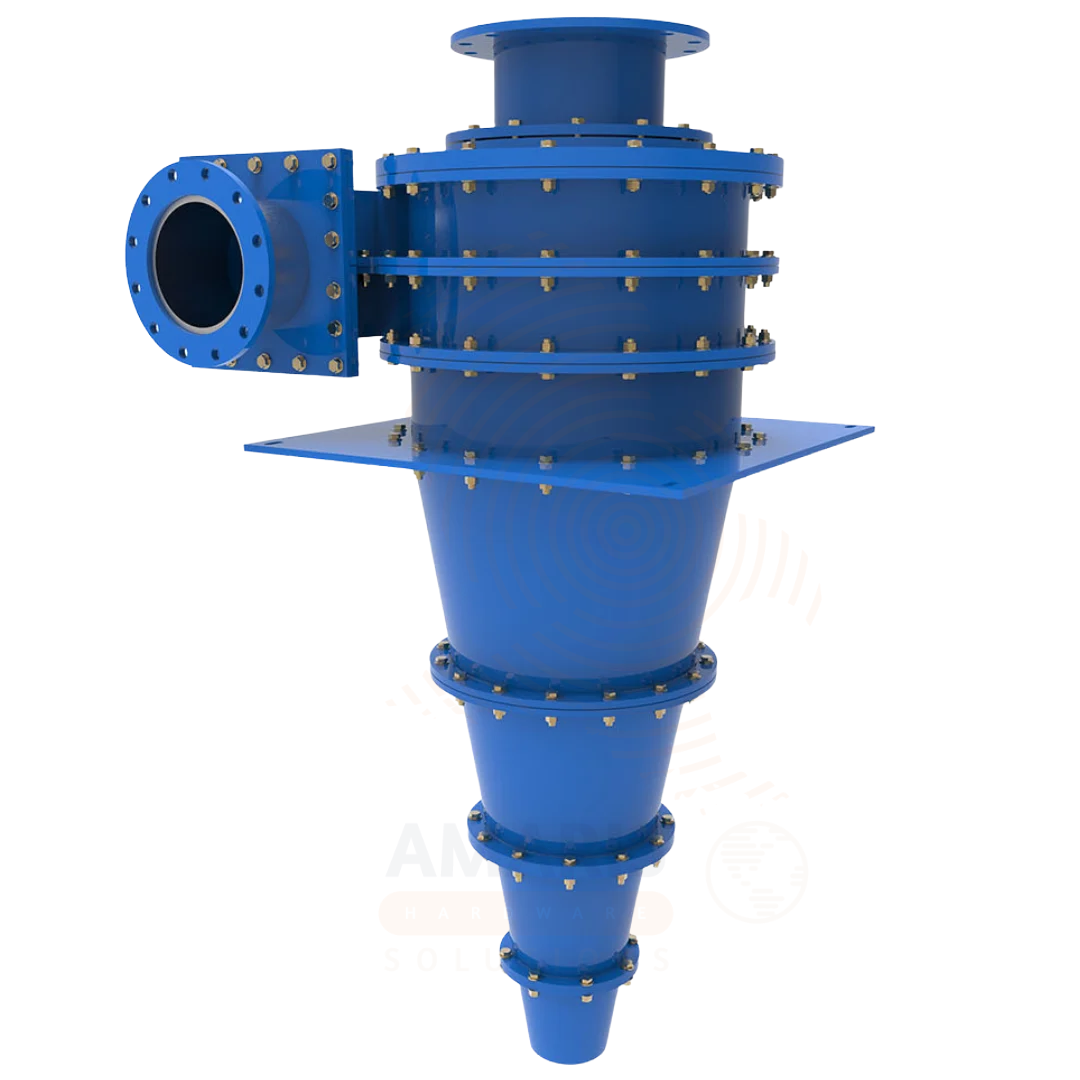

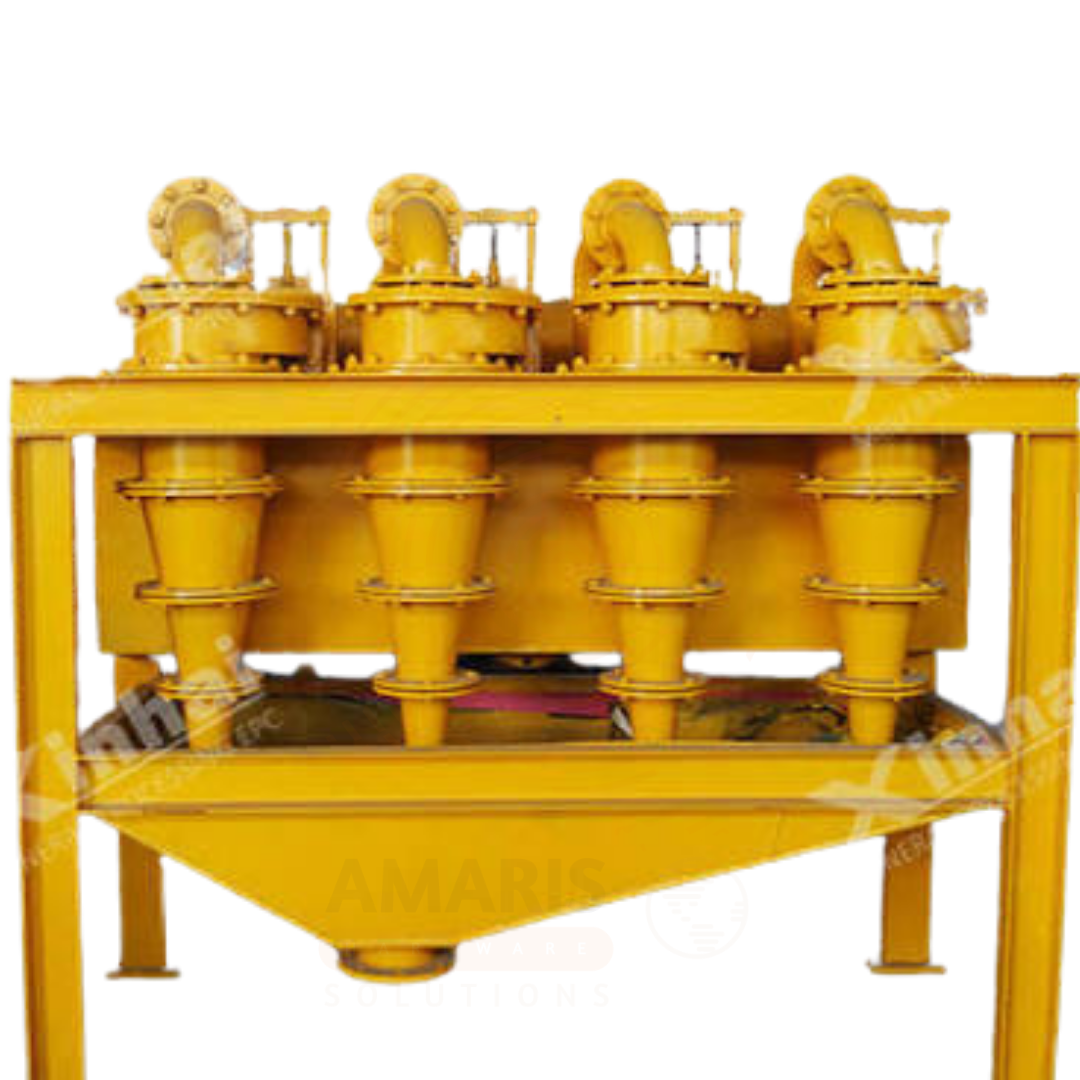

Warman Krebs cyclones are hydrocyclones for high-capacity classification in mineral processing. The CAVEX design features a spiral feed entry geometry for improved separation efficiency and capacity compared to standard cyclones . Components include CAVEX rubber liners, apex inserts, and cylinder liners. The Warman Cyclosizer provides fine particle size analysis in the 8-38 micron range. Suitable for mining, mineral processing, and laboratory applications .

Compare

Add to wishlist

Category: INDUSTRIAL SUPPLIES Tags: CAVEX Cyclone, CAVEX Liner, CAVEX Rubber Liner, Grinding Circuit, Hydrocyclone Replacement Parts, Krebs D26B, Mineral Processing Classification, Mining Cyclone, Particle Separation, Warman Cyclosizer, Warman Hydrocyclone, Warman Krebs Cyclone, Warman Spare Parts

Description

Table of Contents

Warman Krebs Cyclone

PRIMARY USES

1. High-Capacity Classification and Separation in Mineral Processing

Primary Use: A line of hydrocyclones (including the CAVEX high-capacity and Krebs designs) used for classification, separation, and dewatering of slurry in mining and mineral processing applications. Essential for grinding circuit classification, desliming, and particle size control in mineral processing operations .

How it helps: For process engineers and plant operators, Warman cyclones deliver efficient particle separation at high capacities. The CAVEX cyclone, a Warman International development, features a unique feed entry design with an internal feed passage that scrolls nearly 360° around the head of the cyclone . This geometry delivers a measurable increase in volumetric flow for the same pressure drop, maintains or decreases the proportion of coarse particles reporting to overflow, and lowers overflow density compared to standard designs . Field trials have demonstrated that the CAVEX cyclones produce superior separation efficiency compared to conventional units .

SECONDARY USES

1. Particle Size Analysis: The Warman Cyclosizer is a specialized instrument for sub-sieve sizing in mineral processing laboratories, capable of size analysis in the 8-38 micron range for quartz-like minerals .

2. Mining and Aggregates: Used for classification in grinding circuits, desliming, and tailings management .

3. Mineral Processing: Applications include ore classification in copper, gold, and base metal processing operations .

4. Laboratory Analysis: The Cyclosizer uses five glass-body cyclones arranged in series for routine testing and plant control .

About brand

Warman is a globally recognized brand specializing in high-performance slurry pumps, hydrocyclones, and mining equipment for the mining, mineral processing, dredging, and industrial sectors. Renowned for exceptional durability, efficiency, and wear resistance, Warman products are engineered to handle abrasive and corrosive applications, helping maximize productivity, reduce downtime, and lower maintenance costs in demanding environments.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Hydrocyclone; not a medical device.
Brand: Warman (manufactured by Weir Minerals)
Key Product Lines: CAVEX High-Capacity Cyclone, CAVEX Cyclosizer, Krebs D26B replacement.
Key Components: Inlet feed head, vortex finder, cylinder, cone sections, spigot/apex.
Country of Origin: Australia (design), Italy (manufacturing of Cyclosizer).

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Solid-liquid classification via centrifugal forces.
CAVEX Design Feature: Internal feed passage scrolls nearly 360° around the head, spiraling downwards into the cone section with increasing curvature .
Krebs Standard Design: Internal feed passage wraps 75° around the head .
CAVEX Capacity Benefit: Measurable increase in volumetric flow at the same pressure drop .
CAVEX Separation Benefit: Maintains or decreases coarse particles in overflow and lowers overflow density .
CAVEX Wear Life: Improved wear life compared to standard Krebs cyclones based on field trials .
CAVEX Cyclone Dimensions (650mm Model): Diameter 650mm, Inlet 211mm, Vortex Finder 290mm, Spigot 150mm, Cyclone Length 2743mm, Cone Angle 18° .
Krebs Standard D26B Dimensions: Diameter 660mm, Inlet 192mm, Vortex Finder 254mm, Spigot 152.4mm, Cyclone Length 2735mm, Cone Angle 20° .
Cyclosizer Specification: Complete system with 5 glass body cyclones, internal pumps, piping, valves, and gauges, 0-60 minute timer, 230V/50-60 Hz operation .
Cyclosizer Capacity: Shipping weight 880 lbs; price range $45,000 to $73,000 .
Cyclosizer Cut Sizes (on quartz): C1=45, C2=34, C3=24, C5=16, C6=11.5 microns .

3. PHYSICAL & OPERATIONAL PROPERTIES

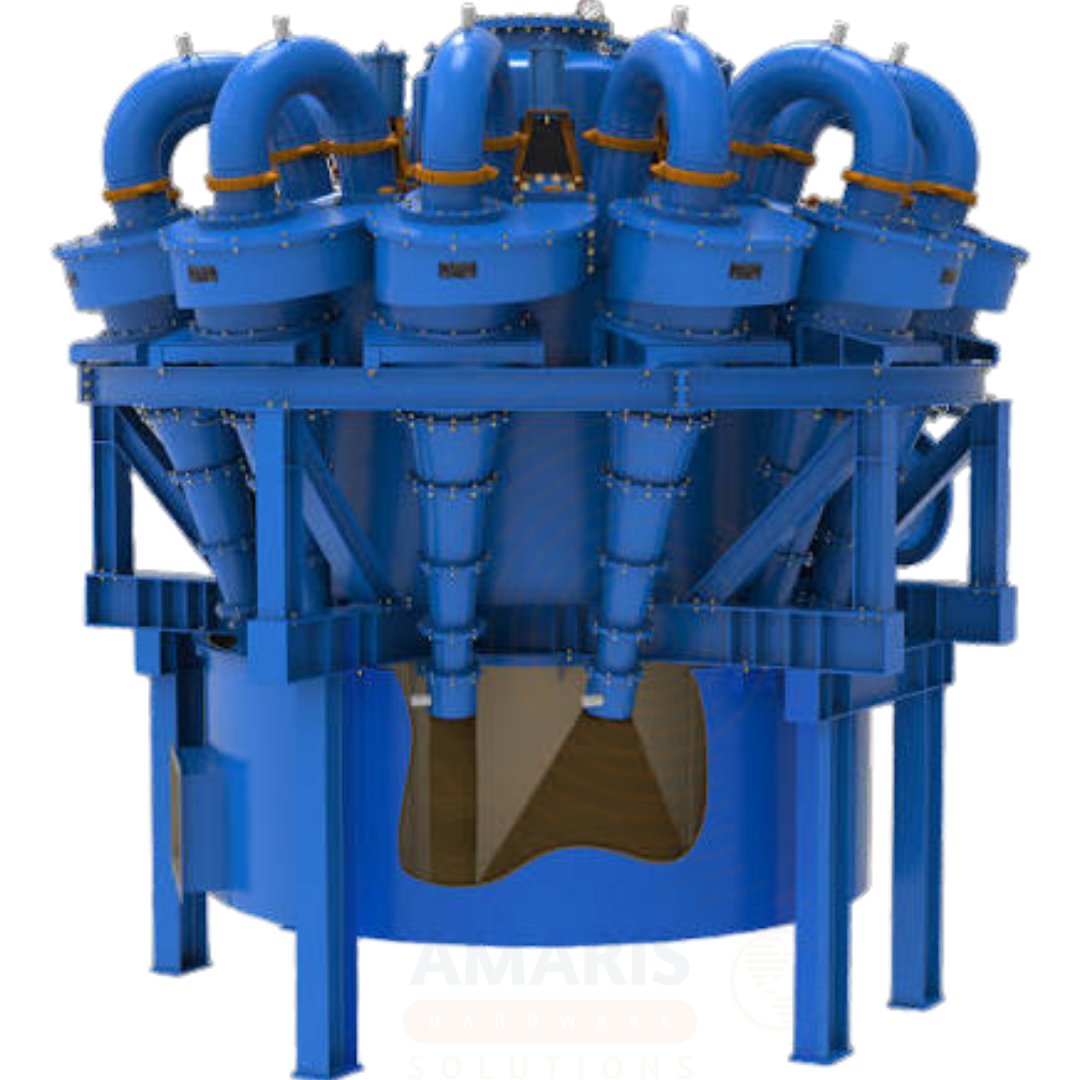

Installation: Cyclones arranged in radial clusters, known as cyclopacs, where each cyclone can be isolated for maintenance .
Wear Components: Wear-prone parts include apex/spigot, liners (rubber or urethane), and internal components .
Material Options: Rubber and urethane liners available for wear protection .
Maintenance: Apex portion subject to high wear and must be frequently inspected and replaced periodically .
Interchangeability: Aftermarket rubber liners and replacement parts available for CAVEX cyclones .

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial processing equipment; standard industrial safety measures apply.
Compliance: Designed to meet relevant industry standards for mining and mineral processing.
Accessibility: Cyclopac design allows isolation of individual cyclones for maintenance without taking the entire system offline .

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, gloves, and steel-toed boots when handling or maintaining cyclone components.

Lockout/Tagout: Always isolate and lock out the cyclone feed system from its power source before beginning any maintenance or inspection work.

Pressure Hazard: Cyclones operate under pressure. Depressurize the system before opening any ports or performing maintenance.

Wear Monitoring: Inspect apex and liners regularly. A narrower apex will wear out faster and may indicate process changes .

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for handling and installing cyclone components.

2. FIRST AID MEASURES

Eye Exposure: If slurry or chemicals splash into the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Skin Contact: Remove contaminated clothing. Wash exposed skin with soap and water. If irritation develops or chemical burns occur, seek medical attention.
