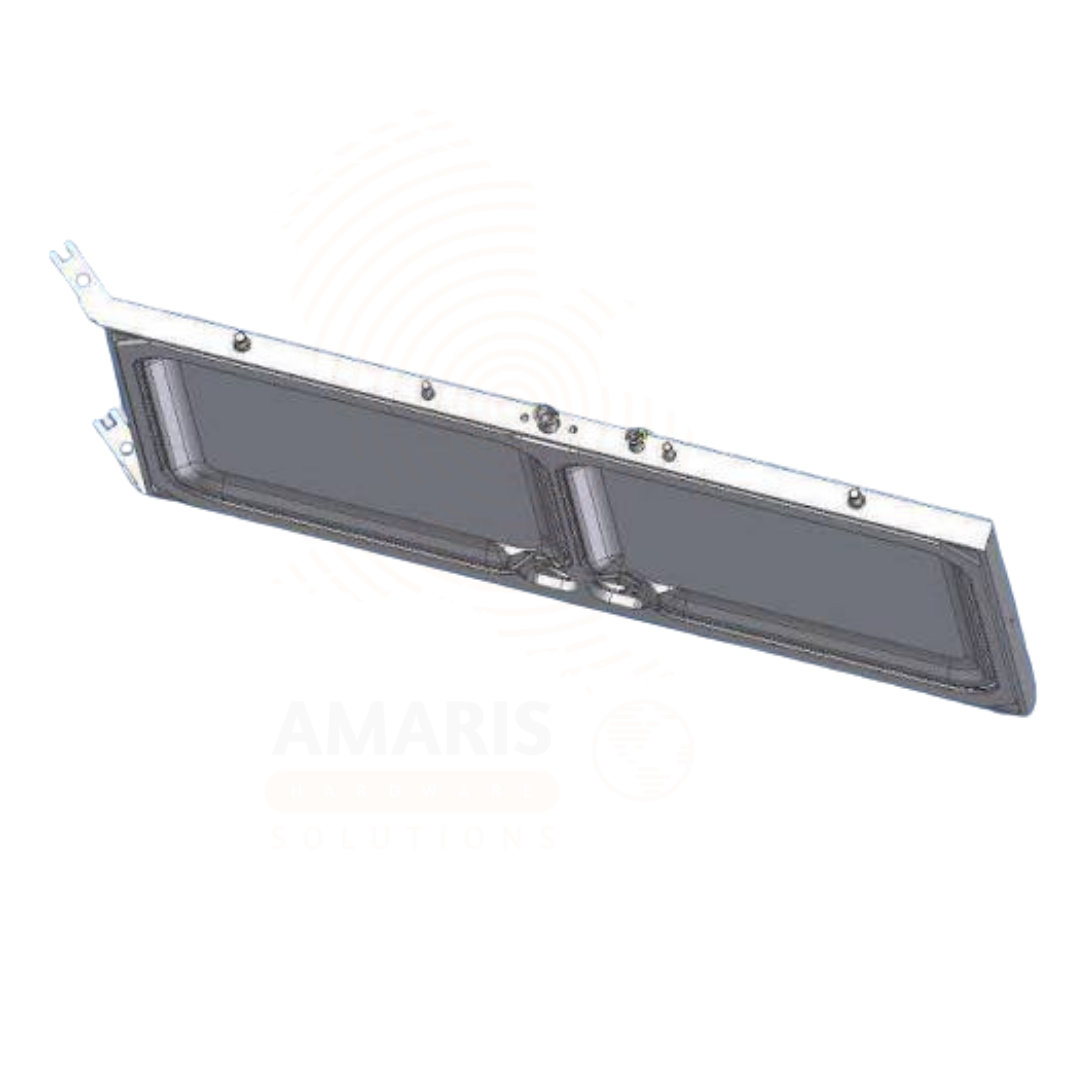

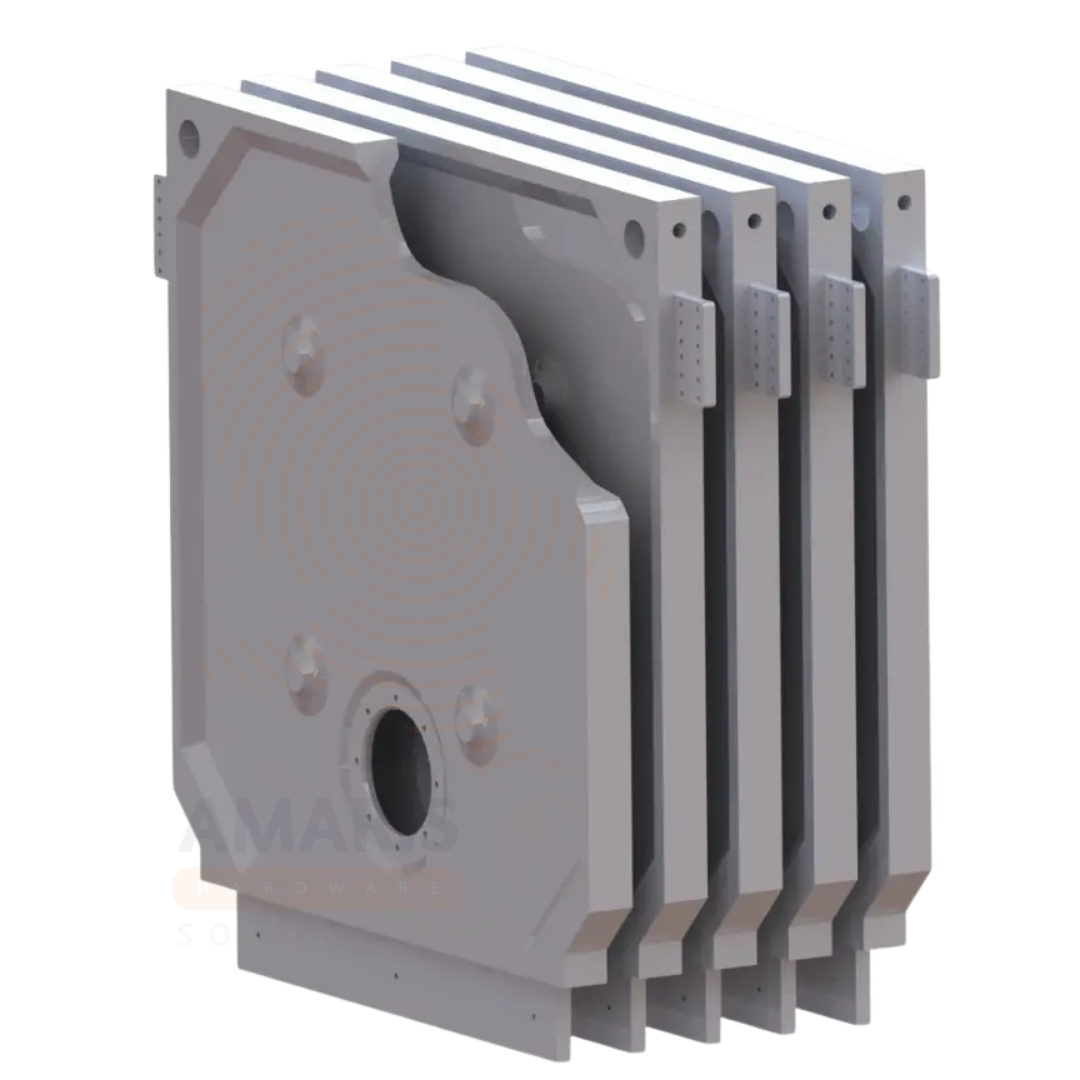

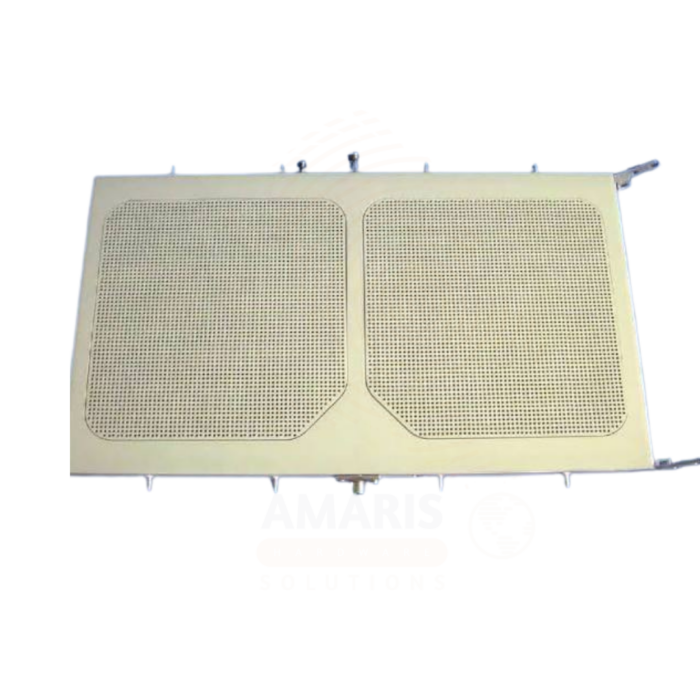

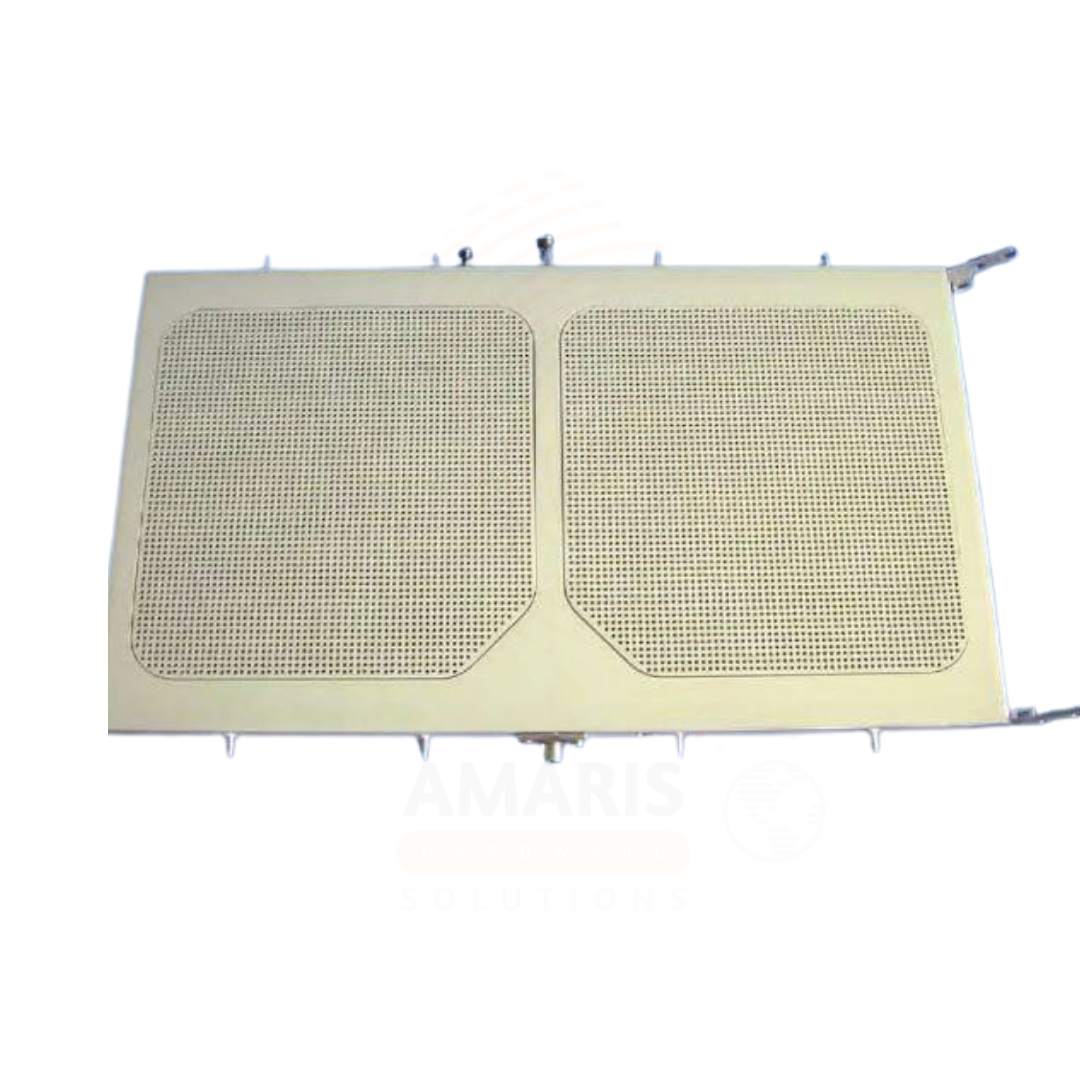

FLSmidth Filter Plate

WhatsApp Order

FLSmidth filter plates are engineered components for industrial filter presses, available in recessed chamber and membrane configurations. The Maxa™ Filter Plate delivers up to 10% more volume, 15% more filtrate port open area, and 3-5% increase in filtration area. Plates available from 900mm to 2500mm in polypropylene, nylon, Kynar, and stainless steel. Suitable for mining, mineral processing, chemical, and industrial wastewater applications.

Compare

Add to wishlist

Category: INDUSTRIAL SUPPLIES Tags: AFP Filter Plate, AFP2525, Filter Press Parts, FLSmidth Filter Plate, FLSmidth Spare Parts, M1500 Filter Plate, M2000 Filter Plate, Maxa Filter Plate, Membrane Plate, Mineral Processing Equipment, Mining Filtration, Polypropylene Filter Plate, Recessed Chamber Plate, Shriver Filter Plate, Solid-Liquid Separation, Tailings Dewatering

Description

Table of Contents

FLSmidth Filter Plate

PRIMARY USES

1. Large-Scale Industrial Filtration and Slurry Dewatering

Primary Use: High-performance filter plates form the core of FLSmidth Automatic Filter Presses and are used for solid-liquid separation in large-scale mining, mineral processing, and industrial applications. Essential for dewatering mineral concentrates, tailings, and other process slurries to recover valuable solids and produce clean water.

How it helps: For process engineers and plant operators, FLSmidth filter plates deliver efficient cake formation and filtration performance across a wide range of applications. The innovative Maxa™ Filter Plate, developed specifically for the M1500 and M2020 AFP series, delivers up to 10% more volume, improved filtration times, and a longer plate lifecycle compared to conventional designs. The plates are available in sizes from 900 x 900 mm up to 2500 x 2500 mm, with recessed or membrane plate configurations to suit specific process requirements.

2. Advanced Plate Technology for Improved Performance

Primary Use: FLSmidth filter plates feature optimised geometry and engineering to resolve common issues related to plate performance, including area, volume, flow, and durability.

How it helps: The Maxa Filter Plate incorporates several design enhancements: expanded filtration surface area improves throughput; greater chamber volume allows for increased cake mass per cycle; increased filtrate port area reduces velocity of filtrate and cake blow air, extending plate life; and engineered port locations and size promote filtrate flow while eliminating areas that fatigue filter media. The streamlined plate anatomy addresses common points of cloth failure, with air for cake blow introduced at lower velocity to reduce abrasion and improved pip design providing more consistent cloth support.

SECONDARY USES

1. High-Volume Tailings Treatment: The AFP2525 filter press processes up to 300 tonnes per hour with a single filter, delivering up to 95% water recovery and less than 10% residual moisture in filter cake.

2. Chemical and Industrial Filtration: Applications include wastewater treatment, pulp and paper, food processing, pharmaceutical production, and chemical manufacturing.

3. High-Temperature Applications: Special materials including high-temperature polypropylene and Kynar are available for applications requiring elevated temperature resistance.

4. Corrosive Environments: Stainless steel and non-ferrous metal plate materials are available for aggressive chemical applications.

About brand

FLSmidth is a global leader in mining and cement technology, providing advanced equipment, engineering, and service solutions. Renowned for its crushers, slurry pumps, hydrocyclones, mills, filters, and process equipment, FLSmidth delivers reliable, high-performance solutions that improve productivity, reduce downtime, and optimize operations in the mining and cement industries.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Filter plate; not a medical device.
Brand: FLSmidth
Main Configurations: Recessed chamber plates, membrane plates, plate and frame, CGR (Caulked, Gasketed and Recessed).
Plate Sizes: M470, M630, M800, M900, M1000, M1200, M1500, M2000, M2500, and 1500x2000 rectangular configurations.
Materials: Polypropylene and polypropylene blends (standard), high-temperature polypropylene, nylon, Kynar, iron, non-ferrous metals, stainless steel, and fabricated polypropylene.
Country of Origin: Denmark (FLSmidth A/S)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Solid-liquid separation via pressure filtration.
Maxa Filter Plate Features: Expanded filtration surface area (3-5% increase), greater chamber volume (5-10% more volume), increased filtrate port area (15% more open area), engineered port locations to reduce cloth fatigue.
Chamber Volume per Plate (Selected Models): M1500: 1.41 m³ (60 chambers), M2000: 1.58 m³ (80 chambers), M2000: 2.23 m³ (80 chambers), 1500x2000: 2.46 m³ (120 chambers).
Filtration Area per Plate: M1500: 3.8 m², M2000: 6.7 m², 1500x2000: 4.9 m².
Maximum Pressure Rating: 100 PSIG to 225 PSIG (approximately 7-15.5 bar) depending on plate type and design.
High Volume AFP2525: Processes up to 300 tonnes per hour with up to 95% water recovery.
Replaceable Grids: Patent-pending design allows replacement of worn filtrate passages without replacing the entire filter plate, extending serviceable life.

3. PHYSICAL & OPERATIONAL PROPERTIES

Filter Press Compatibility: Compatible with FLSmidth AFP series including M1500, M2020, M2000, and AFP2525.
Skeleton Configurations: Sidebar and overhead beam designs available.
Porting Arrangements: Open or closed discharge with center or corner feed; special arrangements for cake washing, air blowing, and liquid sampling.
Maintenance: Plate removal from side or top of filter in overhead beam designs; easy access to cloth and plate maintenance.
Cloth Attachment: Snap-on porous filter media with locking elements for quick installation and removal.
Cloth Change System: Quick change filter cloth with adapter ring and grommet system for rapid filter media replacement.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial filtration equipment; standard industrial safety measures apply.
Compliance: CE certified; designed to meet relevant industrial standards.
Accessibility: Overhead beam design provides full view and access to plates for safer maintenance.
OEM Parts: Genuine FLSmidth filter plates ensure guaranteed fit, form, and function with full manufacturer warranty.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, gloves, and steel-toed boots when handling or installing filter plates.

Lockout/Tagout: Always isolate and lock out the filter press from its hydraulic, pneumatic, and electrical power sources before beginning any maintenance or installation work.

Lifting: Use appropriate lifting equipment for heavy plate components. Individual plates may weigh hundreds of kilograms, especially in larger presses.

Access: Use integrated maintenance platforms for safe access. Overhead beam designs offer better visibility and access to plates, improving safety during maintenance.

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for handling and installing filter plates on the specific FLSmidth filter press model.

2. FIRST AID MEASURES

Eye Exposure: If slurry or chemicals splash into the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Skin Contact: Remove contaminated clothing. Wash exposed skin with soap and water. If irritation develops or chemical burns occur, seek medical attention.

Inhalation: If chemical fumes or dust are inhaled, move to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: Filter plates (polypropylene) are combustible. Use extinguishing media appropriate for plastic fires. Electrical equipment may be involved.

FLSmidth Filter Plate

FLSmidth Filter Plate

PRIMARY USES

1. Large-Scale Industrial Filtration and Slurry Dewatering

2. Advanced Plate Technology for Improved Performance

Primary Use: FLSmidth filter plates feature optimised geometry and engineering to resolve common issues related to plate performance, including area, volume, flow, and durability.

SECONDARY USES

1. High-Volume Tailings Treatment: The AFP2525 filter press processes up to 300 tonnes per hour with a single filter, delivering up to 95% water recovery and less than 10% residual moisture in filter cake.

2. Chemical and Industrial Filtration: Applications include wastewater treatment, pulp and paper, food processing, pharmaceutical production, and chemical manufacturing.

3. High-Temperature Applications: Special materials including high-temperature polypropylene and Kynar are available for applications requiring elevated temperature resistance.

4. Corrosive Environments: Stainless steel and non-ferrous metal plate materials are available for aggressive chemical applications.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Filter plate; not a medical device.

Brand: FLSmidth

Main Configurations: Recessed chamber plates, membrane plates, plate and frame, CGR (Caulked, Gasketed and Recessed).

Plate Sizes: M470, M630, M800, M900, M1000, M1200, M1500, M2000, M2500, and 1500x2000 rectangular configurations.

Materials: Polypropylene and polypropylene blends (standard), high-temperature polypropylene, nylon, Kynar, iron, non-ferrous metals, stainless steel, and fabricated polypropylene.

Country of Origin: Denmark (FLSmidth A/S)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Solid-liquid separation via pressure filtration.

Maxa Filter Plate Features: Expanded filtration surface area (3-5% increase), greater chamber volume (5-10% more volume), increased filtrate port area (15% more open area), engineered port locations to reduce cloth fatigue.

Chamber Volume per Plate (Selected Models): M1500: 1.41 m³ (60 chambers), M2000: 1.58 m³ (80 chambers), M2000: 2.23 m³ (80 chambers), 1500x2000: 2.46 m³ (120 chambers).

Filtration Area per Plate: M1500: 3.8 m², M2000: 6.7 m², 1500x2000: 4.9 m².

Maximum Pressure Rating: 100 PSIG to 225 PSIG (approximately 7-15.5 bar) depending on plate type and design.

High Volume AFP2525: Processes up to 300 tonnes per hour with up to 95% water recovery.

Replaceable Grids: Patent-pending design allows replacement of worn filtrate passages without replacing the entire filter plate, extending serviceable life.

3. PHYSICAL & OPERATIONAL PROPERTIES

Filter Press Compatibility: Compatible with FLSmidth AFP series including M1500, M2020, M2000, and AFP2525.

Skeleton Configurations: Sidebar and overhead beam designs available.

Porting Arrangements: Open or closed discharge with center or corner feed; special arrangements for cake washing, air blowing, and liquid sampling.

Maintenance: Plate removal from side or top of filter in overhead beam designs; easy access to cloth and plate maintenance.

Cloth Attachment: Snap-on porous filter media with locking elements for quick installation and removal.

Cloth Change System: Quick change filter cloth with adapter ring and grommet system for rapid filter media replacement.

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial filtration equipment; standard industrial safety measures apply.

Compliance: CE certified; designed to meet relevant industrial standards.

Accessibility: Overhead beam design provides full view and access to plates for safer maintenance.

OEM Parts: Genuine FLSmidth filter plates ensure guaranteed fit, form, and function with full manufacturer warranty.

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, gloves, and steel-toed boots when handling or installing filter plates.

Lockout/Tagout: Always isolate and lock out the filter press from its hydraulic, pneumatic, and electrical power sources before beginning any maintenance or installation work.

Lifting: Use appropriate lifting equipment for heavy plate components. Individual plates may weigh hundreds of kilograms, especially in larger presses.

Access: Use integrated maintenance platforms for safe access. Overhead beam designs offer better visibility and access to plates, improving safety during maintenance.

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for handling and installing filter plates on the specific FLSmidth filter press model.

2. FIRST AID MEASURES

Eye Exposure: If slurry or chemicals splash into the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Skin Contact: Remove contaminated clothing. Wash exposed skin with soap and water. If irritation develops or chemical burns occur, seek medical attention.

Inhalation: If chemical fumes or dust are inhaled, move to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: Filter plates (polypropylene) are combustible. Use extinguishing media appropriate for plastic fires. Electrical equipment may be involved.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂) for fires involving filter plates or electrical equipment.

Fire Response: In the event of a fire, evacuate the area and call emergency services. Use appropriate extinguishers.
