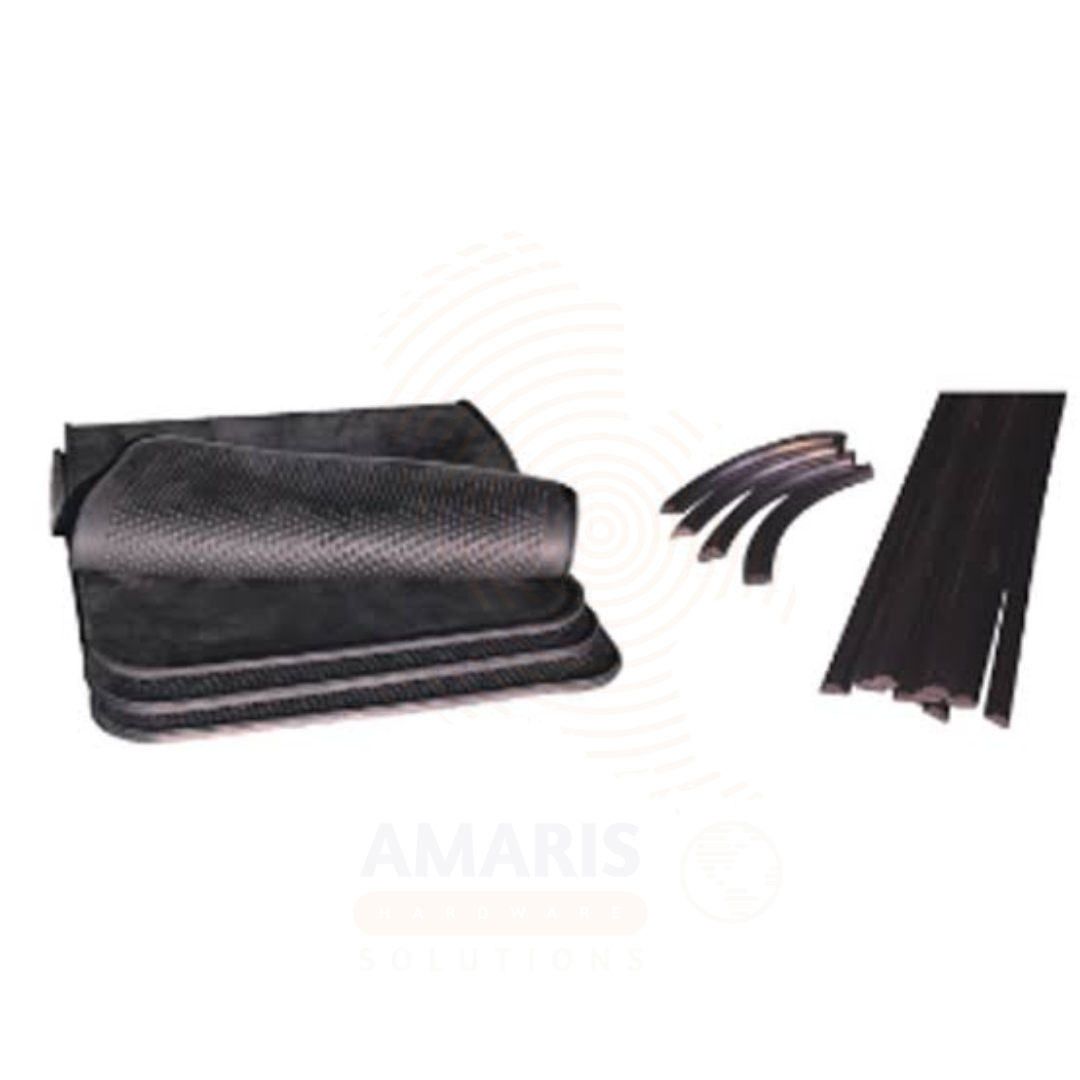

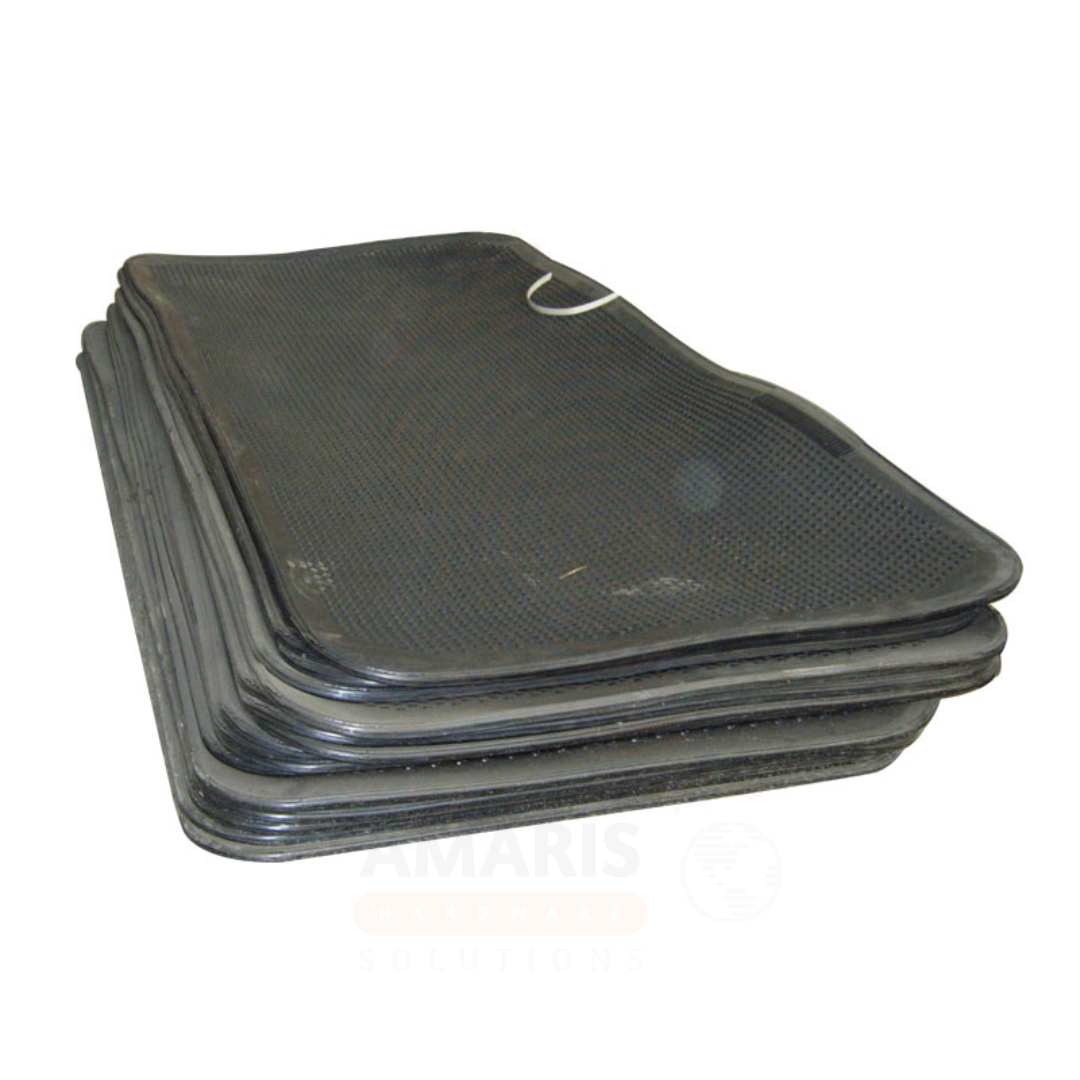

Matec Filter Rubber Diaphragm

WhatsApp Order

Matec filter rubber diaphragms are flexible membrane components for Matec membrane filter plates, enabling enhanced cake dewatering through secondary squeezing. Available in various technopolymer materials tailored to specific process conditions. Compatible with Matec filter press models including Aquae, Ignis, Terrae, Magnum, Megalith, and Gigatron. The Squeezing Membrane system improves mechanical pressing of the sludge cake, resulting in drier end product and more efficient filtration cycle. Replaceable diaphragms simplify maintenance and extend plate life.

Compare

Add to wishlist

Category: INDUSTRIAL SUPPLIES Tags: Aquae Diaphragm, Filter Press Diaphragm, Filter Press Spares, Gigatron Diaphragm, High Pressure Technology, HPT, Ignis Diaphragm, Magnum Diaphragm, Matec Filter Diaphragm, Matec Membrane Plate, Matec Spare Parts, Megalith Diaphragm, Mining Filtration, Rubber Diaphragm, Solid-Liquid Separation, Squeezing Membrane, Terrae Diaphragm

Description

Table of Contents

Matec Filter Rubber Diaphragm

PRIMARY USES

1. Enhancing Dewatering Efficiency in Membrane Filter Presses

Primary Use: A flexible rubber membrane component used in Matec membrane filter plates to perform a secondary “squeezing” step for enhanced dewatering . Essential for mining, aggregates, chemical, and industrial wastewater applications where achieving maximum cake dryness is critical .

How it helps: For process engineers and plant operators, the rubber diaphragm enables the filter press to achieve significantly lower cake moisture levels than standard recessed chamber plates alone . Once the initial filtration cycle is complete and the final filtration pressure is reached, the diaphragm is inflated with water to exert mechanical force on the filter cake, compressing it and extracting additional moisture . This technology is a hallmark of Matec’s High Pressure Technology (HPT), which can achieve residual moisture in the sludge cake of less than 10% and recover up to 98% reusable clean water .

SECONDARY USES

1. Filter Cake Washing: In combination with membrane plates, the system enables cake washing for special slurries containing chemicals. Clean water flows into the plate chambers before the bricks are discharged, rinsing the bricks and lowering chemical levels below the threshold that would classify them as “special sludge” with associated disposal costs .

2. High-Pressure Applications: The Megalith filter press, equipped with membrane technology, can operate at pressures up to 21 bar, ensuring a drier end product .

3. Replacement and Maintenance: Rubber membranes are available as replacement components through Matec’s comprehensive after-sales and spare parts service. The global presence through branches and warehouses ensures prompt and reliable support.

About brand

Matec Industries is a global provider of advanced filtration and wastewater treatment solutions, specializing in filter presses and high-performance systems for industries such as mining, aggregates, construction, and industrial processing. Their technologies help businesses efficiently separate solids from liquids, recover valuable materials, and reduce environmental impact.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Filter rubber diaphragm; not a medical device.
Brand: Matec Industries
Compatible Filter Presses: Matec Aquae, Ignis, Terrae, Magnum, Megalith, Gigatron series
Material: Technopolymers, typically polypropylene; can be varied depending on customer needs and material to be processed
Country of Origin: Italy (Matec Industries Srl)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Mechanical pressing of filter cake via water inflation behind the flexible membrane
Material Selection: Critical engineering decision based on chemical compatibility, temperature resistance, and flexibility/durability
Maximum Pressure Rating: Standard membrane plates operate at compression pressures up to 17 bar; special plates can be designed for higher pressures . Megalith series with HPT21 BAR system enables filtration at up to 21 bar
Benefits: Reduces moisture content of filter cake, shortens filtration cycle time, and improves plate washing efficiency
Variable Volume: The key difference from standard plates is the variable volume chamber, which allows squeezing of the sludge pumped into the chamber

3. PHYSICAL & OPERATIONAL PROPERTIES

Installation: Available as part of membrane mix-packs (alternating recessed plates and membrane plates) or in combination with face plates as a cost-effective option
Replaceability: Membranes can be easily exchanged when worn, minimizing the risk of plate damage
Operation: Can operate in an "empty chamber" condition without damaging the plate, significantly reducing plate breakage incidents

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial filtration equipment component; standard industrial safety measures apply.
Compliance: Designed to meet relevant industry standards; CE certified.
OEM Parts: Matec offers comprehensive after-sales service including high-quality industrial spare parts .

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, gloves, and steel-toed boots when handling or installing diaphragms.

Lockout/Tagout: Always isolate and lock out the filter press from its hydraulic, pneumatic, and electrical power sources before beginning any maintenance or installation work.

Chemical Safety: Diaphragm material must be matched to the specific chemical composition of the process slurry to prevent chemical degradation, leakage, or catastrophic failure . Depending on the material being processed, different technopolymers may be required .

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for handling and installing diaphragms on the specific Matec filter press model.

2. FIRST AID MEASURES

Eye Exposure: If slurry or chemicals splash into the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Skin Contact: Remove contaminated clothing. Wash exposed skin with soap and water. If irritation develops or chemical burns occur, seek medical attention.

Matec Filter Rubber Diaphragm

Matec Filter Rubber Diaphragm

PRIMARY USES

1. Enhancing Dewatering Efficiency in Membrane Filter Presses

Primary Use: A flexible rubber membrane component used in Matec membrane filter plates to perform a secondary “squeezing” step for enhanced dewatering . Essential for mining, aggregates, chemical, and industrial wastewater applications where achieving maximum cake dryness is critical .

SECONDARY USES

2. High-Pressure Applications: The Megalith filter press, equipped with membrane technology, can operate at pressures up to 21 bar, ensuring a drier end product .

3. Replacement and Maintenance: Rubber membranes are available as replacement components through Matec’s comprehensive after-sales and spare parts service. The global presence through branches and warehouses ensures prompt and reliable support.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Filter rubber diaphragm; not a medical device.

Brand: Matec Industries

Compatible Filter Presses: Matec Aquae, Ignis, Terrae, Magnum, Megalith, Gigatron series

Material: Technopolymers, typically polypropylene; can be varied depending on customer needs and material to be processed

Country of Origin: Italy (Matec Industries Srl)

2. TECHNICAL & PERFORMANCE PROPERTIES

Primary Action: Mechanical pressing of filter cake via water inflation behind the flexible membrane

Material Selection: Critical engineering decision based on chemical compatibility, temperature resistance, and flexibility/durability

Maximum Pressure Rating: Standard membrane plates operate at compression pressures up to 17 bar; special plates can be designed for higher pressures . Megalith series with HPT21 BAR system enables filtration at up to 21 bar

Benefits: Reduces moisture content of filter cake, shortens filtration cycle time, and improves plate washing efficiency

Variable Volume: The key difference from standard plates is the variable volume chamber, which allows squeezing of the sludge pumped into the chamber

3. PHYSICAL & OPERATIONAL PROPERTIES

Installation: Available as part of membrane mix-packs (alternating recessed plates and membrane plates) or in combination with face plates as a cost-effective option

Replaceability: Membranes can be easily exchanged when worn, minimizing the risk of plate damage

Operation: Can operate in an "empty chamber" condition without damaging the plate, significantly reducing plate breakage incidents

4. SAFETY & COMPLIANCE ATTRIBUTES

Safety Classification: Industrial filtration equipment component; standard industrial safety measures apply.

Compliance: Designed to meet relevant industry standards; CE certified.

OEM Parts: Matec offers comprehensive after-sales service including high-quality industrial spare parts .

1. SAFETY PRECAUTIONS

Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety goggles, hard hats, hearing protection, gloves, and steel-toed boots when handling or installing diaphragms.

Lockout/Tagout: Always isolate and lock out the filter press from its hydraulic, pneumatic, and electrical power sources before beginning any maintenance or installation work.

Chemical Safety: Diaphragm material must be matched to the specific chemical composition of the process slurry to prevent chemical degradation, leakage, or catastrophic failure . Depending on the material being processed, different technopolymers may be required .

Training requirement: Maintenance personnel must be properly trained on the safe and correct procedures for handling and installing diaphragms on the specific Matec filter press model.

2. FIRST AID MEASURES

Eye Exposure: If slurry or chemicals splash into the eyes, flush immediately with plenty of clean water for at least 15 minutes, holding eyelids open. Seek medical attention.

Skin Contact: Remove contaminated clothing. Wash exposed skin with soap and water. If irritation develops or chemical burns occur, seek medical attention.

Inhalation: If chemical fumes or dust are inhaled, move to fresh air. If symptoms persist (coughing, difficulty breathing), seek medical attention.

3. FIRE FIGHTING MEASURES

Flammability: Rubber and polymer diaphragms are combustible. Use extinguishing media appropriate for rubber/plastic fires.

Extinguishing Media: Use water spray, foam, dry chemical powder, or carbon dioxide (CO₂).

Fire Response: In the event of a fire, evacuate the area and call emergency services. Use appropriate extinguishers.
